Industrial Ultra High Pressure Hydroblasting Machine 1000 Bar For Rust Removing

Industrial Ultra High Pressure Hydro Blasting Washing Equipment For Sale With 1000 Bar Machine For Rust Removing

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

Industrial Ultra High Pressure Hydro Blasting Washing Equipment For Sale With 1000 Bar Machine For Rust Removing

Characteristics as below:

Product Description

Industrial high pressure water blasting machine is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Methods of use

A. Preparation before use

• Adding lubricating oil to crankcase of high pressure pumps and motor and make oil surface reach middle of oil pointer,meanwhile adding lubricating oil to the front oil tank. The lubricating oil is the NO.46 mechanical oil, or the same viscosity of air compressor oil, or the hydraulic oil.
• Screwing down every joint, add the flexible buckle to the interface of high pressure hose, and fixed it.
• Check whether the electric engine and the starter’s insulation parts are satisfied the electrical rules or not. For considering the safety, the washer must be reliable grounding.
• Supplying enough clean water and use water input hose to connect well the water tank and the high pressure pump’s interface. No leaking in the connecting parts.

Applications


The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

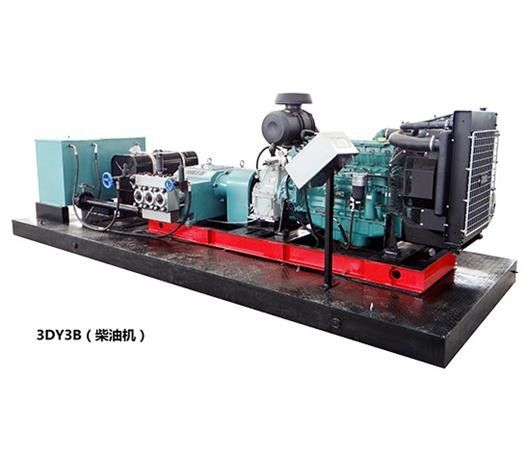

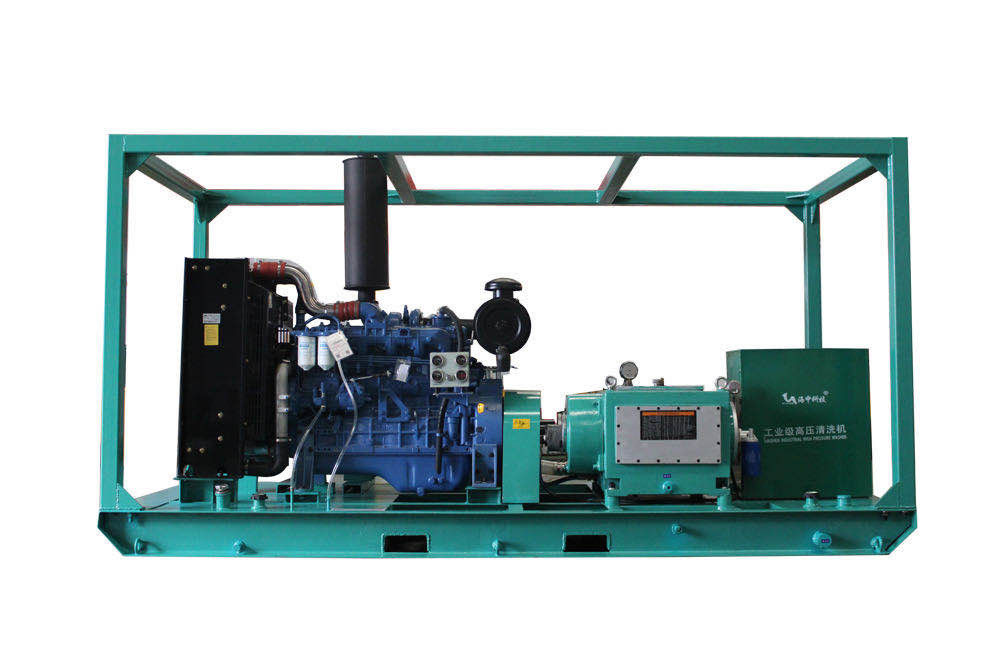

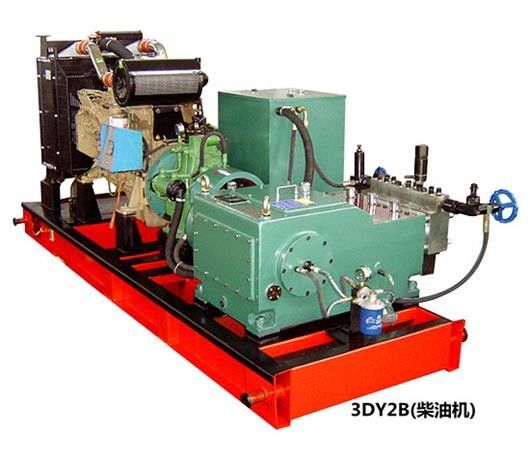

Diesel Engine Drive Industrial High Pressure Cleaners High Pressure Cleaning Machine As a rust removing equipment,

it uses the high pressure water jet at 1000bar to jet the rust,and peel of the rust from the surface.

the photo shows the before rust removing and after high pressure water jet rust removing.

sometimes with 1000bar high pressure water jet is enough to remove the rust

As a 40 years manufacturing factory,we have many foreign customers who came to our factory to visit.
some of the photos as below:


Applications:
it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.


some foreign customers give us comments below:





FAQ

Industrial Ultra High Pressure Hydro Blasting Washing Equipment For Sale With 1000 Bar Machine For Rust Removing


Q1. What about the lead time?
A: 20 working days for mass production.

Q2. Do you have any MOQ limit for the product order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
