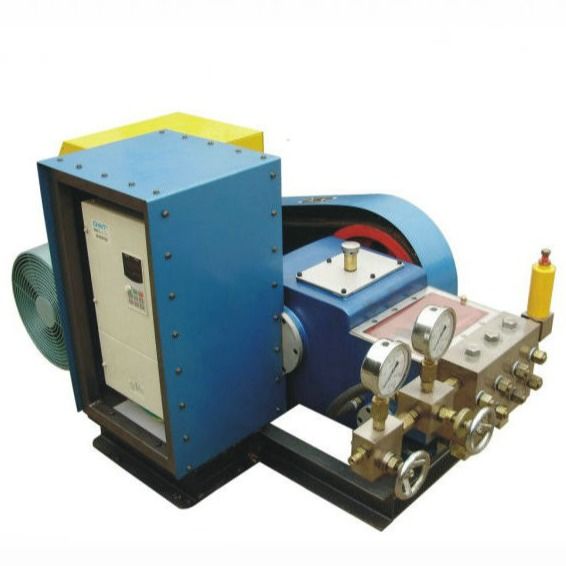

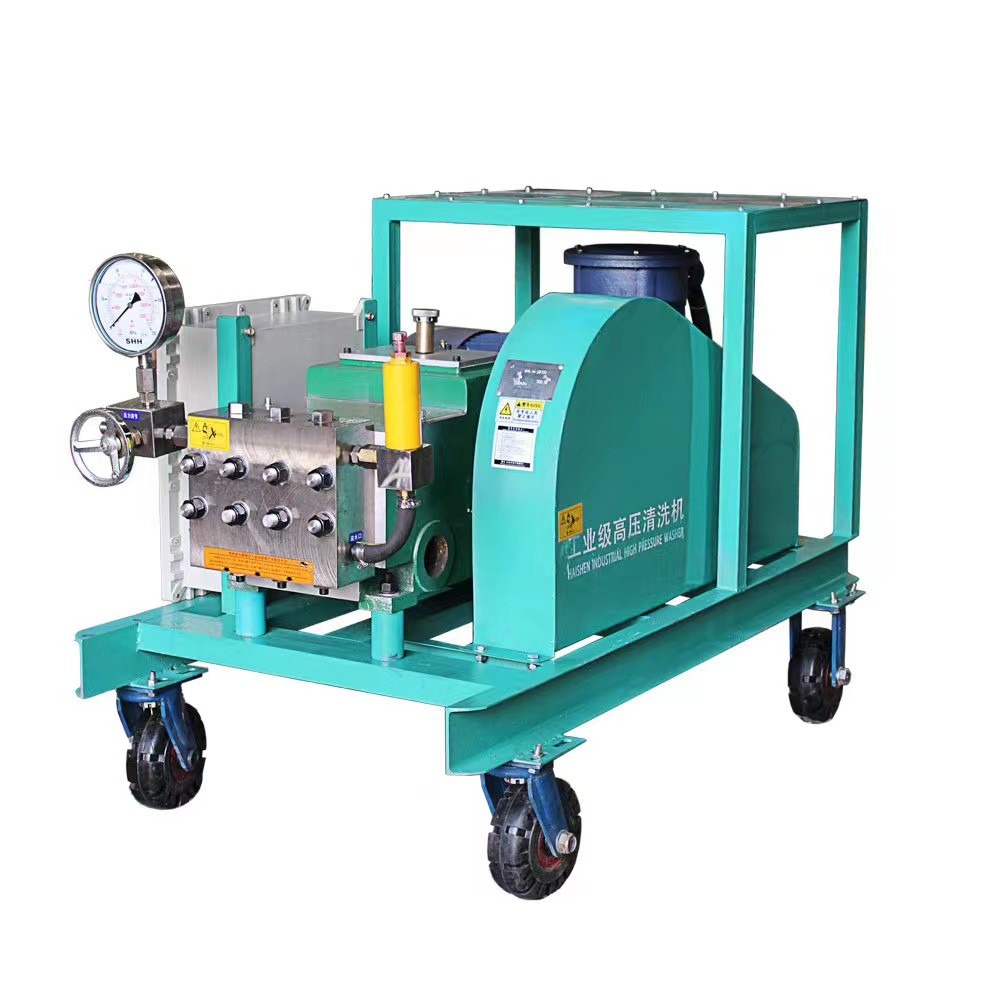

10000psi High Pressure Water Blaster Cleaner For Ship Rust Removal

10000psi High Pressure Water Blaster Cleaner For Ship Rust Removal High Pressure Cleaning Machine:



Applications:

1. Chemical Injection

2. Hydrostatic testing,pressure test.

3. Surface Cleaning.

4. High pressure tooling

5. Oilfield washdown

6. Blow off Preventer(BOP)

7. Sewer Drain Blasting/Jetting.

8. HeavyEquipemtn Cleaning

9. Railroad Undercarriage and tank cleaning

10 Marine Barnacle growth

11. Marine painting and rust remove.


10000psi High Pressure Water Blaster Cleaner For Ship Rust Removal High Pressure Cleaning Machine

Characteristics as below:


Catalogue of 15kw Industrial High Pressure Washers for ship cleaning High Pressure Washing Equipment:


Product Description

Industrial high pressure water blaster is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

This bareshaft pump is for the machine replace,or you choose the diesel engine to connect to the bareshaft pump.

find the right power of engine ,with the right RPM,make a coupling conect the pump to engine.connecting to other accessories like gun and high pressure hose.you can get the whole machine to use.

Features

• Industrial high pressure washers are an idea for the heavy duty users.Featuring a compact design and easy to use controls,these superior machines are housed within durable fiberglass or a stainless steel cover,and fitted to a stove enamelled hard wearing chassis and frame with solid tires.contained within are self-priming pumps with heavy duty fibre seals,brass cylinder heads and components.while hard wearing nylon valves and stainless steel valve seats provide various options of pressure ,flow, and performance.



  Not only do these heavy duty pressure washers excel in performance ,but most of all they excel in reliability.with Sincere Da customers are getting quality products,unrivalled training,help and advice when you need it,and a truly dedicated team of service engineers that are highly trained in all of the products we sell.



  High pressure washers use water at very high pressure for washing a variety of vehicles and machinery,and for cleaning any type of washable surface or floor.they can be used in a wide and varying number of sectors .e.g.agriculture,industrial,marine and shipping,car washing,transport industry.

• Working principle:

This pump is the horizontal single-acting triplex plunger pump, components are dynamic end, hydraulic end, pressure regulating valve,and relief valve!

(1).The dynamic end (attached picture by the following)componented by the pulley, crankshaft, connecting bar , etc. dynamic power produced by the belt and driving pulley and also decrease the speed.driving the crankshaft rotary,and the connecting bar makes the rotary be direct!

(2)The hydraulic end (attached picture by the following)componented by the plungers,cylinders,pump body,water inlet and outlet valves,etc.the cylinders are fixed on the crank,the connecting bar drive the plunger do reciprocating movement in the cylinder which makes the content of cylinders periodic change.when the plungers are the sucking stroke,the the content of cylinders enlarge,and the water outlet valves close,forming a vacuum,the medium comes into the cylinders upon the pressure of the air;when the plungers are the eduction stroke,the water inlet valves close,the plungers make the medium go into the pump body through the water outlet valves,and then go into the pressure regulate valve,and last comes out from the high pressure hose!

(3)The relief(safety valve) valve (attached picture by the following) Relief valve is high-pressure pump of protection device, when the nozzle blocking, relief valve open, high pressure water flow, protecting the machine was not damaged by the over pressure. the customers do not touch that!

(4)The pressure regulating valve (attached picture by the following)the pressure regulating valve is used to adjust the outlet pressure and keep the system pressure.when the handwheel clockwise rotation pressure-regulating valve core, with the gap seat decreasing, overflowing decreases, machine pressure increases. When the handwheel counterclockwise, flow capacity increase and the pressure drops!

Applications:

1.using in Meat packing Cleaning of grease, fats, blood on conveyors, pipes and drains. With pressure 200bar – 690bar

2.using in Metal processing Mill scale, rust and weld slag from new vessels, tanks and pipe. With pressure 1400bar – 2800bar

3. using in Military Cut & explode mines, decontamination of shells and cutting cordite. Cleaning of machinery & vehicles with the pressure 200bar – 2800bar

4.using in Mining Pre-maintenance cleaning of dump trucks, drag-lines, underground haulage lines and shafts.Unclog plant machinery due to coal, rock dust and oil. With the pressure 300bar – 2800bar

5.using in Municipalities Sewers, drains, pipe lines, sanitation, refuse vechicles and reservoirs. With pressure 200bar – 500bar

As a 40 years manufacturing factory,we have many years all come from all over the world,the

below are some of our customers:


Applications:

it is widely used in ship cleaning,rust removing,fuel pipeline cleaning in refinery fields,oil tank clean,all kinds of the heat exchangers pipes clean.....



Comments from customers who is using the products 500bar Industrial High Pressure Washers For Tank Cleaning High Pressure Washing Machine:



Comments from customers:




FAQ

10000psi High Pressure Water Blaster Cleaner For Ship Rust Removal High Pressure Cleaning Machine:

Q1. What is  your leading time?
A: 8-10 working days for mass production.

Q2.what is your packing?
A: Wooden box

Q3. How do you ship the goods ?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
