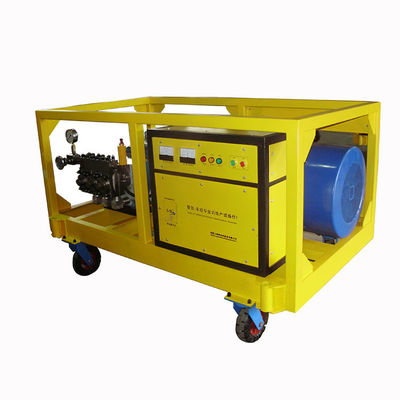

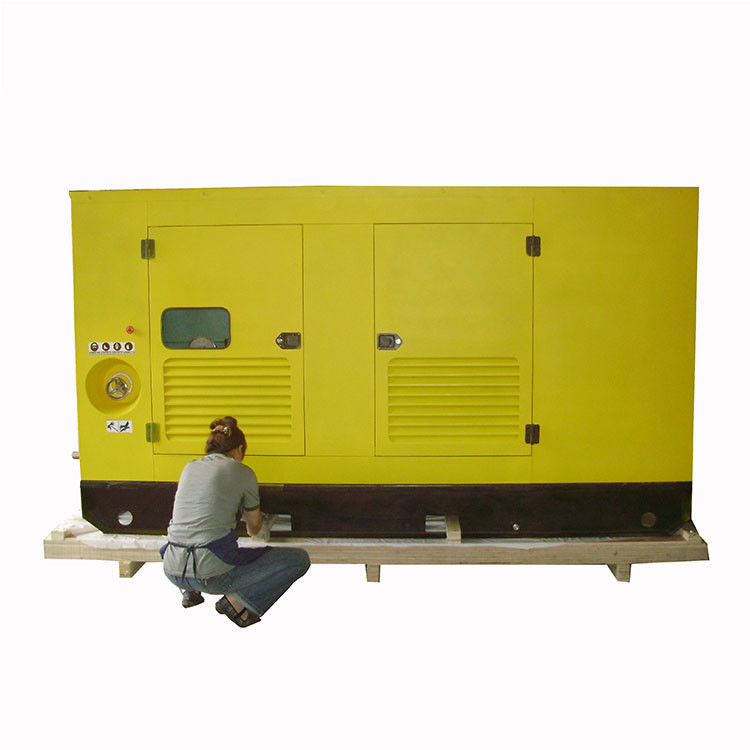

ATEX Zone 2 High Pressure Water Jet System With DNV 2.7.1Lifting Frame Explosion Proof
Details:
1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

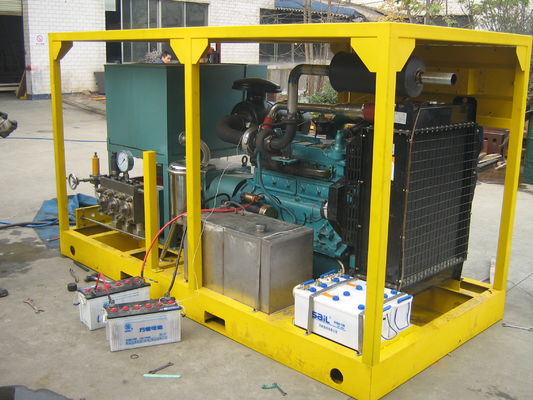

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
ATEX Zone 2 High Pressure Water Jet System With DNV 2.7.1Lifting Frame Explosion Proof
Characteristics as below:
MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE |
Bar | L/min | KW | mm | mm | |
SD-400/17 | 170 | 400 | 132 | 70 | 70 |
SD-317/22 | 220 | 317 | 132 | 62 | 70 |
SD-250/28 | 280 | 250 | 132 | 55 | 70 |
SD-220/30 | 300 | 220 | 132 | 52 | 70 |
SD-190/36 | 360 | 190 | 132 | 48 | 70 |
SD-160/43 | 430 | 160 | 132 | 44 | 70 |
SD-132/52 | 520 | 132 | 132 | 40 | 70 |
SD-120/58 | 580 | 120 | 132 | 38 | 70 |
SD-107/63 | 630 | 107 | 132 | 36 | 70 |
SD-95/70 | 700 | 95 | 132 | 34 | 70 |
SD-74/90 | 900 | 74 | 132 | 30 | 70 |
SD-65/100 | 1000 | 65 | 132 | 28 | 70 |
SD-40/280 | 2800 | 40 | 200 | 26 | 70 |
The main parts are: triplex high pressure reciprocating pump, electric engine, water tank, inlet water hose, and cleaning accessory, electric control cabinet.
4. Cleaning accessory: there are many kinds of cleaning accessory; it should match according to the client’s request. The usual are: high pressure hoses, high pressure pipes, foot control valve, spray guns, etc.
High pressure hoses are the main safe parts of the washer; it must use the supporting products. Before use, it must be checked, and if there are some wearing parts, it should be rechanged. Fixed the joint, in case of loosing.
The high pressure pipes usually in a fixed place, which made from the stainless steel extra high pressure, and installed in a fixed pipe way. When installation, it should match with the limit valve and globe valve, and control box.
Foot control valve is used in the pipelines, containers, rotary kiln of cement plant, sometimes used in as the twin gun switch valve operation. When use the special accessories such as spray boom, rotating nozzle, it should use the foot control valve to realize the control of water jet change. When loose the valve, the water jet.
Spray gun is the pump’s change energy parts, for considering the safety, usually, it is overflow spray guns, that means there is a overflow pipe, when close the spray gun, it overflows, and unloading the high pressure pump.
70Mpa 10000psi Explosion Proof Water Pump for High Pressure CleaningProduct DescriptionThe machine is mainly composed by high pressure reciprocating pump, power plant and cleaning accessories.
1, high pressure reciprocating pump:
This kind of pump , as a horizontal triplex plunger pump , is driven by electric motor ,which can be divided into two parts: power end and fluid end.
This part consist of belt pulley crankshaft, and connecting rod. Through the turning of belt and belt pulley, the electric motor decreases speed and drives the crankshaft to rotate. Then crank link mechanism transforms the rotation motion into straight reciprocating motion.
(2) Fluid end (picture 2)
This part consists of plunger suit, high-pressure cylinder, and pump body, inlet and outlet water valve. In high-pressure cylinder fixed on the case body, the connecting rod drives plunger to do reciprocating motion, which makes the internal volume of cylinder changed periodically. When in suction stroke, the internal capacity of the cylinder body swells, the water outlet valve closes and forms partial vacuum. Together with the effect of atmospheric pressure, actuating medium is forced into high-pressure cylinder from inlet valve. While in discharge stroke, the inlet water valve closes. Plunger piston squeezes the actuating medium from outlet water valve into pump body, and into pressure regulating valve, then through the high-pressure tube arrivals spray gun by whose resistance the high pressure water forms.
Relief valve (picture3) equipped at right side of pump is designed to protect system against overpressure.
