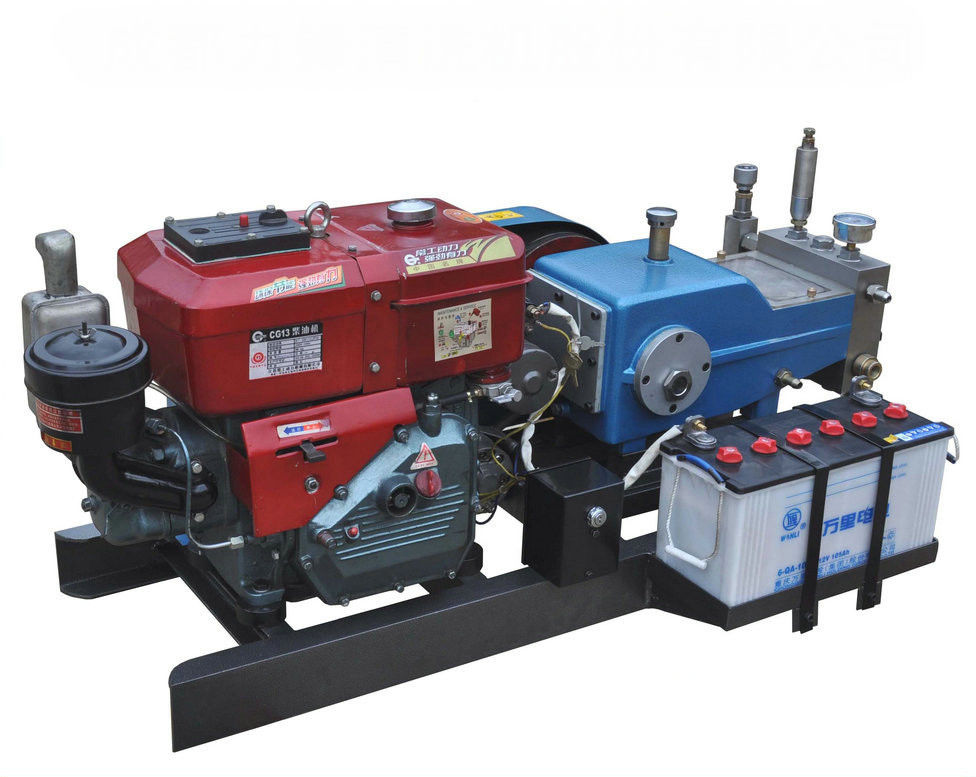

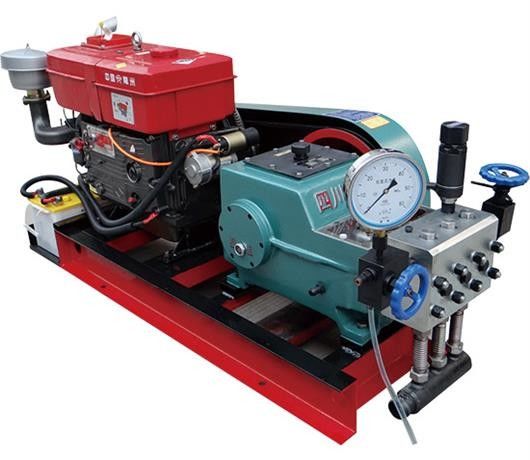

10000psi Industrial High Pressure Cleaners Multipurpose Diesel High Pressure Cleaners
Infomation:
Our industry manufacture 7.5-11KW series high pressure washer and test pump. This serie is a replacement of the current electric high pressure washer and test pump with two or four cylinder. Our products are widely used around the world not just because the merit of small volume, compact structure, stable operation, complete function, high flow, strong compatibility, and high efficiency, but also because it is safe and reliable in use and simple in operation.
10000psi Industrial High Pressure Cleaners Multipurpose Diesel High Pressure Cleaners
Characteristics as below:
| Tech Date | ||
| Model | LF-5.6/70 | |
| Max. working pressure | 700bar | |
| Rated water flow | 5.6L/min | |
| Pump RPM | 750 | |
| Input power | 7.5kw | |
| Diesel engine or electric motor power | 7.5kw | |
| Engine RPM | 1500 | |
| Net Weight | 260KGS | |
| Dimension | 1200*400*600mm | |
| package | Wooden box | |
Below is the catalogue:
Application:
This pump applies to all kinds of pressure vessel, boiler, and can used in the case of blasting and strength test. It also can keep pressure automatically and record the trial pressure value according to the need. Generally, room temperature water is most used with the pump, and we also use the emulsion, antirust water and oil whose viscosity is close to water.
This machine is mainly composed by high pressure reciprocating pump, overflow valve (the machine have no overflow valve when it’s pressure above 40MPa), pressure relief valve, high pressure hose and so on.
high pressure reciprocating pump；horizontal type, three cylinder, gasoline engine driven. It includes power end and hydraulic end.
Power end；Composed by pulley, crankshaft, and connecting rod, and so on. Through the triangle leather belt and pulley, the motor drives and decelerates. When the motor drives crankshaft to rotate, the crankshaft connecting rod translates rotation movement into linear reciprocating movement. Then the plunger starts to move reciprocatingly. Picture as below.
Hydraulic end: Composed by plunger piston, high pressure cylinder, pump head, inlet and outlet valve and security valve, and so on. When the crankshaft connecting rod put the plunger in reciprocating movement, the volume of the cylinder changes periodic. When the piston take the inhaled step, outlet valve close and liquid pass the outlet valve and exhaust via the pump head under the pressure. Repeat this process, when it works.
GUARANTY OF QUALITY
We offer products of our own design and production and we guarantee it is high quality. A quality control of performed works is one of the main advantages of our Company. Important components of effective work: high qualification of our engineers, strict implementation of technical standards, application of quality materials, use of the most modern equipment and software.
Strict materials incoming (quality) control and acceptance tests
Laboratory and bench testing
100% compliance with technology, international standards
Application of the most modern high-tech QC tools
All manufactured equipment passes bench and field tests
International quality level
Positive feedbacks from our customers
It is extremely important for us that all our customers are 100% satisfied with the quality of our work!
INNOVATIVE AND TECHNOLOGY LEADER
Our mission is to continuously innovate, develop and offer the most efficient equipment for our customers.
Own design office
Technology Innovation Center
The of Companies employs more than 100 qualified and experienced engineers, designers and technicians
Own laboratory and test benches
Operative analysis and adjustment of design.
As a 40 years manufacturing factory,we have many years all come from all over the world,the below are some of our customers:
Machines working at foreign customer's factory:
Comments from customer which is using the 700bar Industrial High Pressure Washers Diesel Engine Driven High Pressure Washing Equipment:
FAQ
700bar Industrial High Pressure Washers Diesel Engine Driven High Pressure Washing Equipment:
Q1. What about the production time?
A: 8-10 working days for mass production.
Q2.what is your packing?
A: Wooden box
Q3. How do you ship the goods ?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Our products are sold all over the world, you can rest assured.
