75KW 500bar 76L/Min Industrial High Pressure Washers 7000PSI For Paint Removal
Company infomation:
we are a 40 years manufacturing factory which located in Chengdu China,famous for the pandas.
we have enough manufacturing experience to supply the high quality products to all over the world customers.
Our pump head use the advnaced technical which avoided the cylinders broken problems.
75KW 500bar 76L/Min Industrial High Pressure Washers 7000PSI For Paint Removal
Characteristics as below:
Tech Date | ||
Model | LF-76/50 | |
Max. working pressure | 500bar | |
Rated water flow | 76L/min | |
Pump RPM | 500 | |
Input power | 75kw | |
Diesel engine or electric motor power | 75kw | |
Engine RPM | 1500 | |
Net Weight | 1200KGS | |
Dimension | 1900*800*1200mm | |
package | Wooden box |
Catalogue of 500bar 76L/Min Industrial High Pressure Washers For Painting Remove 75KW High Pressure Washing Equipment:
MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE | |
Bar | L/min | KW | mm | mm | ||
LF-256/18 | 180 | 256 | 90 | 55 | 70 | |
LF-195/24 | 240 | 195 | 90 | 48 | 70 | |
LF-164/28 | 280 | 164 | 90 | 44 | 70 | |
LF-135/35 | 350 | 135 | 90 | 40 | 70 | |
LF-122/38 | 380 | 122 | 90 | 38 | 70 | |
LF-110/43 | 430 | 110 | 90 | 36 | 70 | |
LF-98/48 | 480 | 98 | 90 | 34 | 70 | |
LF-87/55 | 550 | 87 | 90 | 32 | 70 | |
LF-76/62 | 620 | 76 | 90 | 30 | 70 | |
LF-66/70 | 700 | 66 | 90 | 28 | 70 | |
LF-57/80 | 800 | 57 | 90 | 26 | 70 | |
LF-40/115 | 1150 | 40 | 90 | 22 | 70 | |
LF-34/150 | 1500 | 34 | 90 | 20 | 70 |

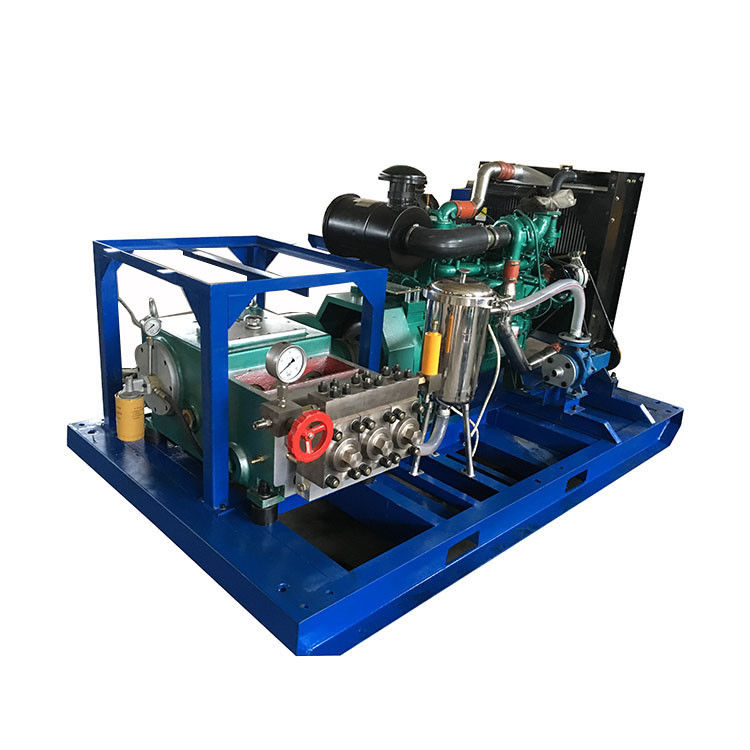

This machine is mainly composed by high pressure reciprocating pump, overflow valve (the machine have no overflow valve when it’s pressure above 40MPa), pressure relief valve, high pressure hose and so on.
Cleaning accessory: there are many kinds of cleaning accessory; it should match according to the client’s request. The usual are: high pressure hoses, high pressure pipes, foot control valve, spray guns, etc.
High pressure hoses are the main safe parts of the washer; it must use the supporting products. Before use, it must be checked, and if there are some wearing parts, it should be rechanged. Fixed the joint, in case of loosing.
The high pressure pipes usually in a fixed place, which made from the stainless steel extra high pressure, and installed in a fixed pipe way. When installation, it should match with the limit valve and globe valve, and control box.
Foot control valve is used in the pipelines, containers, rotary kiln of cement plant, sometimes used in as the twin gun switch valve operation. When use the special accessories such as spray boom, rotating nozzle, it should use the foot control valve to realize the control of water jet change. When loose the valve, the water jet.
Spray gun is the washer’s change energy parts, for considering the safety, usually, it is overflow spray guns, that means there is a overflow pipe, when close the spray gun, it overflows, and unloading the high pressure pump.
Applications:
it is widely used in ship cleaning,rust removing,concrete removing ,fuel pipeline cleaning in refinery fields,oil tank clean,all kinds of the heat exchangers pipes clean,cment plant kiln,for the papaer making factory which is cleaning the dirty paper pulp......
Comments from customers who is using the products 500bar 76L/Min Industrial High Pressure Washers For Painting Remove 75KW High Pressure Washing Equipment:
Comments from customers:
FAQ
500bar 76L/Min Industrial High Pressure Washers For Painting Remove 75KW High Pressure Washing Equipment:
Q1. What is leading time?
A: We need 30 days to deliver.
Q2.are you a factory or a trading company?
A: we are a 40 years old manufacturing factory which located in Chengdu ,China.
Q3. How do you ship the goods ?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
