75KW Industrial Jet Wash Equipment High Pressure Washer For Paint Removal Rust Removal

75KW Industrial Jet Wash Equipment High Pressure Washer For Paint Removal Rust Removal

Cpmpany infomation:

Chengdu Sincere Da Machinery Co.Ltd,a company with 40 years professional manufacturing factory,which located in Chengdu China.a place where is famous for the pandas.

from year 1982 set up,we are making the triplex plungers pump all the time.now we can make the high pressure pump pressure can be from 100bar to 6000bar,water flow from 10L/min to 400L/min. the pumps are widely used in oil refinery pipes cleaning,heat exchangers pipes cleaing,ship hull cleaing,oil paitings removing,rust removing,and so on......

also our pumps can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing.and so on.....

we pay attention to the quality control,we make the pumps working safety,stable,easy to fix at customers hands.we can supply the good services to customers all the time,once customers find the machines have problem,we can supply the way to solve immediately.

so many foreign customers always give highly comments of our factory.

75KW Industrial Jet Wash Equipment High Pressure Washer For Paint Removal Rust Removal

Characteristics as below:


Catalogue of 256L/Min Industrial High Pressure Washers For Painting Remove 75KW High Pressure Washing Machine:

Product Description

Industrial high pressure washer is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

Features

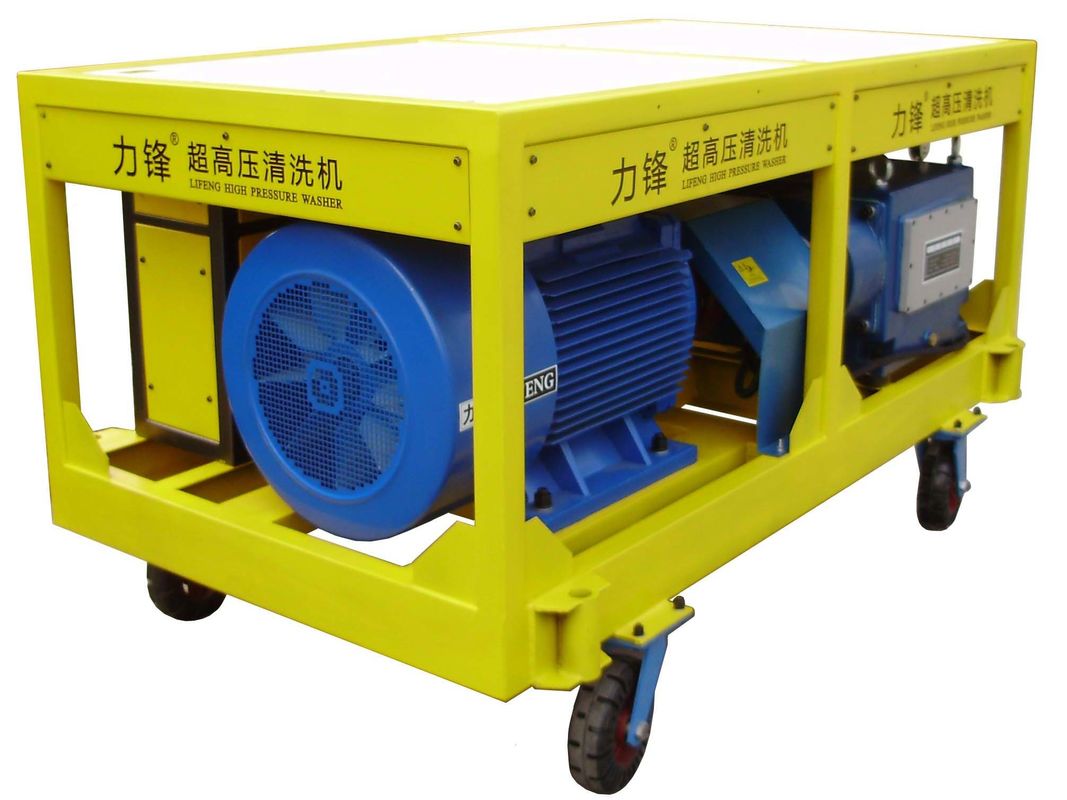

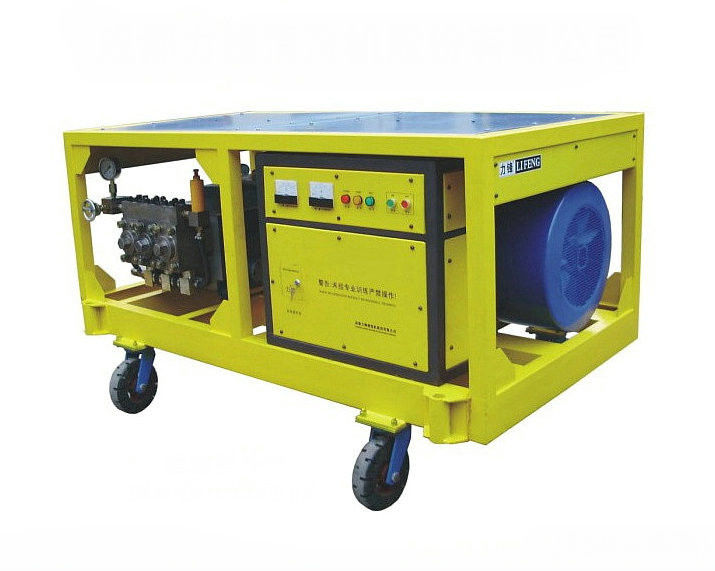

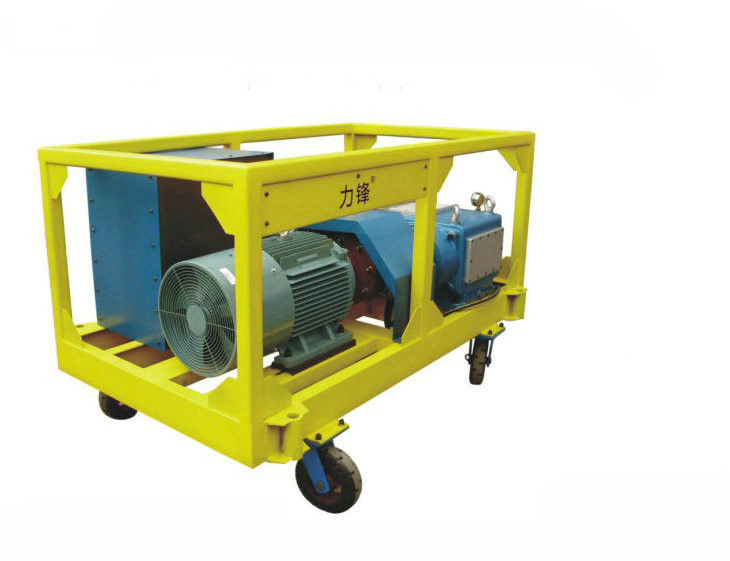

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Applications


The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

As a 40 years manufacturing factory,we have many years all come from all over the world,the below are some of our customers,they are from Australia and so on......

Methods of use

A. Preparation before use

• Adding lubricating oil to crankcase of high pressure pumps and motor and make oil surface reach middle of oil pointer,meanwhile adding lubricating oil to the front oil tank. The lubricating oil is the NO.46 mechanical oil, or the same viscosity of air compressor oil, or the hydraulic oil.
• Screwing down every joint, add the flexible buckle to the interface of high pressure hose, and fixed it.
• Check whether the electric engine and the starter’s insulation parts are satisfied the electrical rules or not. For considering the safety, the washer must be reliable grounding.
• Supplying enough clean water and use water input hose to connect well the water tank and the high pressure pump’s interface. No leaking in the connecting parts.

B. Operating process

Start the motor under the spray gun is closed and waiting the motor is working normally, and then begins other operation. At this time, the regulating valve is unloading. Run it for 5 minutes and examine the pump (whether it is normal), the pressure of the oil should between 0.3Mpa and 0.6Mpa.If its sound is normal and discharging media is not obviously fluctuating, we can put the trigger of the spray gun and regulate the pressure regulating valve to the requested cleaning pressure and then lock the nut, use the spray gun to clean towards the objects cleaned by the washer. At this time, spray gun is under the condition of high pressure jet.

When finishing the cleaning work , loose the trigger and unload the spray gun and meanwhile anti-clockwise loose the pressure regulating valve hand wheel and the main set operates under the condition of unloading and then stop.


Applications:

it is widely used in ship cleaning,rust removing,concrete removing ,fuel pipeline cleaning in refinery fields,oil tank clean,all kinds of the heat exchangers pipes clean,cment plant kiln,for the papaer making factory which is cleaning the dirty paper pulp......





Comments from customers who is using the products 256L/Min Industrial High Pressure Washers For Painting Remove 75KW High Pressure Washing Machine​


Comments from customers:





FAQ

75KW Industrial Jet Wash Equipment High Pressure Washer For Paint Removal Rust Removal

Q1. What is  leading time?
A: We need 30 days to deliver.

Q2.are you a factory or a trading company?
A: we are a 40 years old manufacturing factory which located in Chengdu ,China.

Q3. How do you ship the goods ?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
