15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes

15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes

  • High Light

    75kw 15000psi Electric Hydro Test Pump

    ,

    15000psi 75kw Electric Hydro Test Pump

    ,

    75kw 15000psi hydro test pressure unit

  • Product Name
    15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes
  • Pump Type
    Triplex Plungers Pump
  • Driven Type
    Electric Motor Or Diesel Engine
  • Max.pressure
    100MPa
  • Water Flow
    2500L/h
  • Color
    Customization
  • Place of Origin
    China
  • Brand Name
    SDA
  • Certification
    ISO9001:2015
  • Model Number
    3DY-2500/100
  • Minimum Order Quantity
    1 unit
  • Price
    10000-36000 USD
  • Packaging Details
    Packed by non-fumigation wooden box
  • Delivery Time
    35 working days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    150 units per month

15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes



15000psi 75kw High Pressure Hydro Test Pump For Pipes Pressure Testing Hydraulic Water Pressure Testing Machine



Company Infomation:



 we are a 40 years manufacturing factory which is located in Chengdu China.

we can supply all kinds of the hydro test pumps for the valves,pipeline,tanks pressure testing.

widely used in oil refiney factory,oil transporation,and some valves manufacturing factory.

our products have been exported to Australia,Sweden,Mexico,and so on.

Customers satified them .





Details:

1.Power end crankshaft housing is made by the cast iron.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr OR 3Cr13,it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
6.It is for industrial cleaning or removing.it is heavy duty.
7.It is easy to fix once the wearing parts are broken

8.The cylinders use the new technology,it avoided the cylinders broken problems.

9.we can make according to customers request of the engine.

10.We can supply the pressure datas print out system.

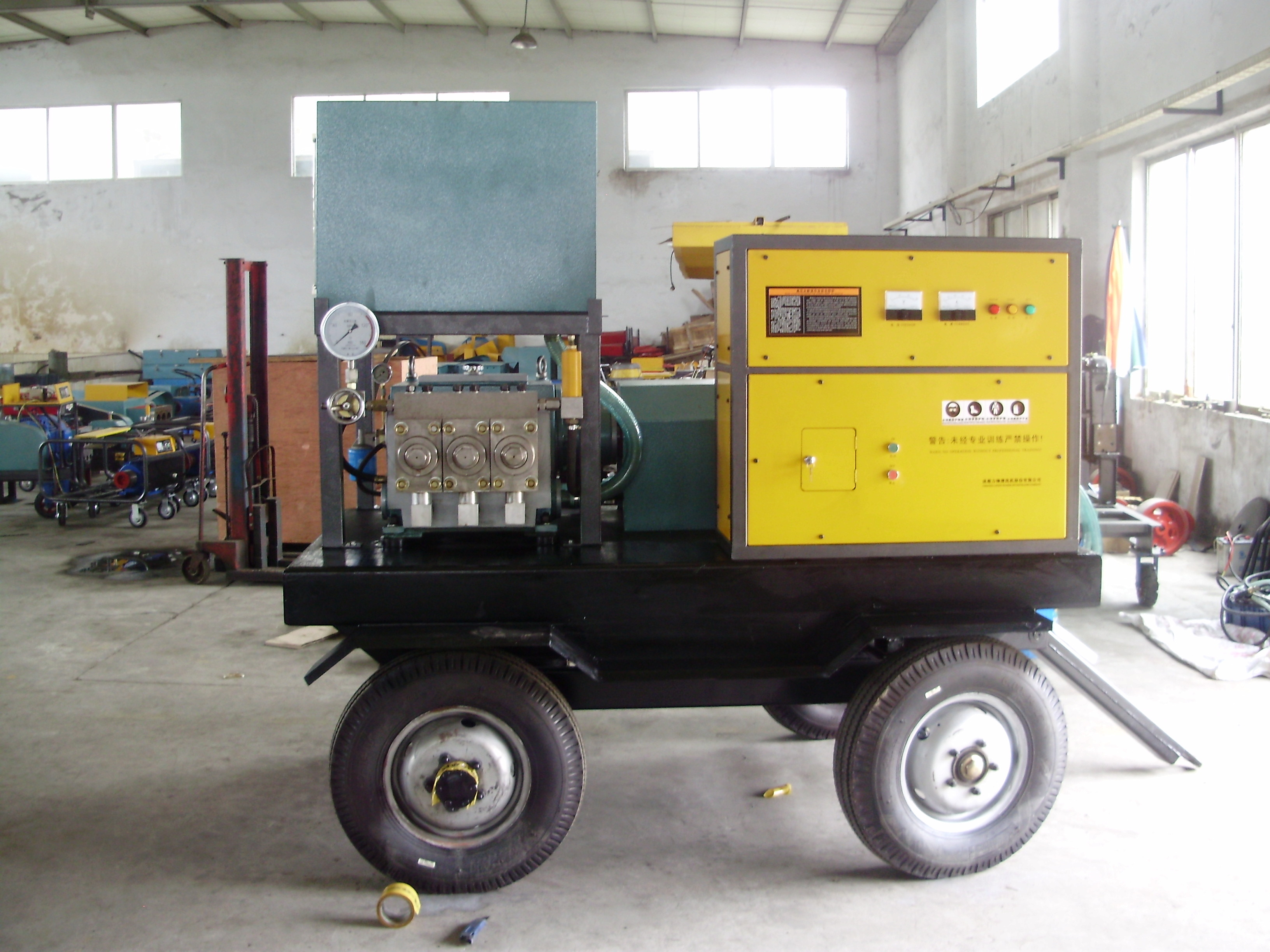

11.we can supply the trailer type with 4 wheels on the bottom.

12.40 years manufacturing experience of making such kind of the test pumps.

13.We can supply the pressure from 10MPa to 600MPa testing pumps.



15000psi 75kw High Pressure Hydro Test Pump For Pipes Pressure Testing Hydraulic Water Pressure Testing Machine



Characteristics as below:



15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes 0







Product Description

The high pressure pumps have two kinds of the usage,one is for the high pressure cleaning purpose,and another is for pressure testing purpose.Hydro Test Pump is an equipment which is used to test the pressure of objects,the machine with high pressure water jet by means of a power device. It can jet high pressure water jet into the objects like the pipes,valves ,let the objects full of high pressure water jet.to see if the objects water leakage or not when the hydro test pump reach a pressure datas.this pump install a stop checking valve,ti can stop the high pressure water jet comes back into the pump.so the pressure can show on the pressure gauge.the pressure test purpose can reach.



Features

  • This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



    1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



  • Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
  • Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.



GUARANTY OF QUALITY



We offer products of our own design and production and we guarantee it is high quality. A quality control of performed works is one of the main advantages of our Company. Important components of effective work: high qualification of our engineers, strict implementation of technical standards, application of quality materials, use of the most modern equipment and software.

Strict materials incoming (quality) control and acceptance tests

Laboratory and bench testing

100% compliance with technology, international standards

Application of the most modern high-tech QC tools

All manufactured equipment passes bench and field tests

International quality level

Positive feedbacks from our customers

It is extremely important for us that all our customers are 100% satisfied with the quality of our work!





INNOVATIVE AND TECHNOLOGY LEADER



Our mission is to continuously innovate, develop and offer the most efficient equipment for our customers.

Own design office

Technology Innovation Center

The of Companies employs more than 100 qualified and experienced engineers, designers and technicians

Own laboratory and test benches

Operative analysis and adjustment of design.


Applications


The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.



Pressure Testing Pump For Oil Well Safety Valves are working at foreign customers site:



15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes 115000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes 2

15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes 3

15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes 4

15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes 5



From customers comments who is using the product:15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes 6

15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes 7

the machines are testing the pipes pressure.



Packings as below :

15000psi 75kw Electric Hydro Test Pump High Pressure Testing Unit For Pipes 8





FAQ



15000psi 75kw High Pressure Hydro Test Pump For Pipes Pressure Testing Hydraulic Water Pressure Testing Machine:



Q1. What is your leading time?

A: we need 40 days to finish the product.



Q2. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc.



Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by  sea shipping.



Q4. How to proceed an order for the product?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly:we sign a contract

Fourthly We arrange the production.



Q5. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.



Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.
