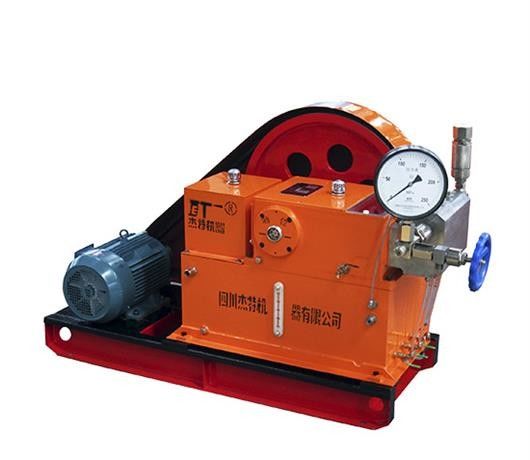

125MPa 5.5kw Electric Motor Hydro Test Pump For Oil Pipes Pressure Testing Water Pressure Testing Pumps
Company Infomation:
we are a 40 years manufacturing factory which is located in Chengdu China.as the first factory who begin to make the triplex pumps,
we can supply all kinds of the hydro test pumps for the valves,pipeline,tanks pressure testing.
widely used in oil refiney factory,oil transporation,and some valves manufacturing factory.
our products have been exported to Australia,Sweden,Mexico,and so on.
Customers satified them very much.
Details:
1.Power end crankshaft housing is made by the cast iron.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr OR 3Cr13,it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
6.It is for industrial cleaning or removing.it is heavy duty.
7.It is easy to fix once the wearing parts are broken
8.The cylinders use the new technology,it avoided the cylinders broken problems.
9.we can make according to customers request of the engine.
10.We can supply the pressure datas print out system.

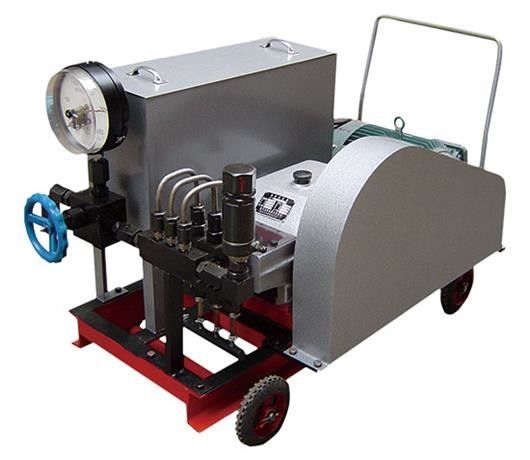

11.we can supply the trailer type with 4 wheels on the bottom.
12.40 years manufacturing experience of making such kind of the test pumps.
13.We can supply the pressure from 10MPa to 600MPa testing pumps,water flowm from 10L/min to 400L/min.
125MPa 5.5kw Electric Motor Hydro Test Pump For Oil Pipes Pressure Testing Water Pressure Testing Pumps
Characteristics as below:
Product Description
The high pressure pumps have two kinds of the usage,one is for the high pressure cleaning purpose,and another is for pressure testing purpose.Hydro Test Pump is an equipment which is used to test the pressure of objects,the machine with high pressure water jet by means of a power device. It can jet high pressure water jet into the objects like the pipes,valves ,let the objects full of high pressure water jet.to see if the objects water leakage or not when the hydro test pump reach a pressure datas.this pump install a stop checking valve,ti can stop the high pressure water jet comes back into the pump.so the pressure can show on the pressure gauge.the pressure test purpose can reach.

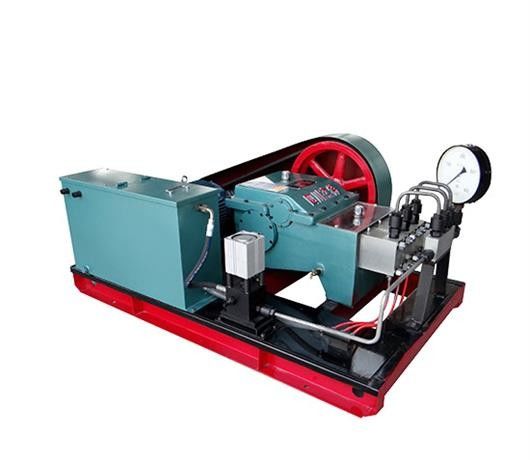

This pump is the horizontal single-acting triplex plunger pump, components are dynamic end, hydraulic end, pressure regulating valve,and relief valve!
(1).The dynamic end (attched picture by the following)componented by the pulley, crankshaft, connecting bar , etc. dynamic power produced by the belt and driving pulley and also decrease the speed.driving the crankshaft rotary,and the connecting bar makes the rotary be direct!
(2)The hydraulic end (attched picture by the following)componented by the plungers,cylinders,pump body,water inlet and outlet valves,etc.the cylinders are fixed on the crank,the connecting bar drive the plunger do reciprocating movement in the cylinder which makes the content of cylinders periodic change.when the plungers are the sucking stroke,the the content of cylinders enlarge,and the water outlet valves close,forming a vacuum,the medium comes into the cylinders upon the pressure of the air;when the plungers are the eduction stroke,the water inlet valves close,the plungers make the medium go into the pump body through the water outlet valves,and then go into the pressure regulate valve,and last comes out from the high pressure hose!
(3)The relief valve (attched picture by the following) Relief valve is high-pressure pump of protection device, when the nozzle blocking, relief valve open, high pressure water flow, protecting the machine was not damaged by the overpressure.the customers do not touch that!
(4)The pressure regulating valve (attched picture by the following)the pressure regulating valve is used to adjust the outlet pressure and keep the system pressure.when the handwheel clockwise rotation pressure-regulating valve core, with the gap seat decreasing, overflowing decreases, machine pressure increases. When the handwheel counterclockwise, flow capacity increase and the pressure drops!
Pressure Testing Pump For Oil Well Safety Valves are working at foreign customers site:
From customers comments who is using the product:
the machines are testing the pipes pressure.
Packings as below :
FAQ
125MPa 5.5kw Electric Motor Hydro Test Pump For Oil Pipes Pressure Testing Water Pressure Testing Pumps:
Q1. What is your leading time?
A: we need 40 days to finish the product.
Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Our products are sold all over the world, you can rest assured.
