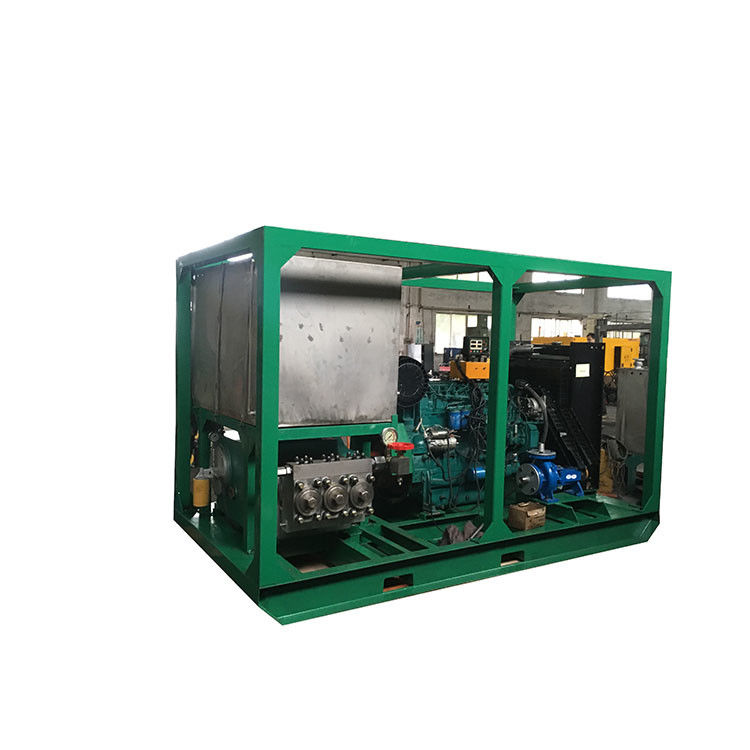

1200 Bar 132kw Pipeline Pressure Test Pump High Pressure Testing Equipment

132kw Pipelines Pressure Test Pump High Pressure Testing Equipment For Tubes Pressure Testing

Details:

1. Power end crankshaft housing is made by the cast iron. it is stronger than the aluminium alloy.
2. Cross head is made by the Babbitt hard alloy. it has a long working life for industrial design.
3. Hydraulic end pump head is made by the hard alloy 40Cr. it can work continuously for cleaning jobs.
4. All hydraulic end is desgined for easy uninstall, so it is easy to fix when the parts broken.

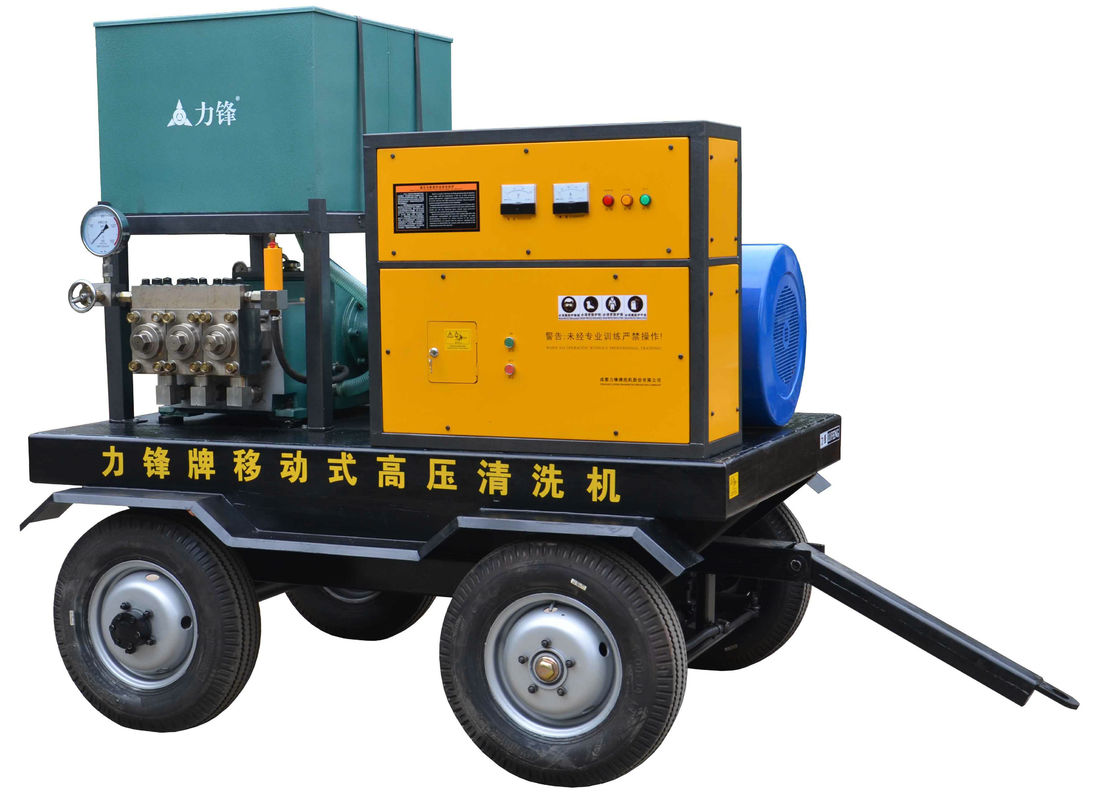

5. For some outdoor use purpose, we can make it driven by the diesel engine or the gasoline engine.

132kw Pipelines Pressure Test Pump High Pressure Testing Equipment For Tubes Pressure Testing

Characteristics as below:

Product Description

The Pipelines Pressure Test Pumps have two kinds of the usage,one is for the high pressure cleaning purpose,and another is for pressure testing purpose. Hydro Test Pump is an equipment which is used to test the pressure of objects,the machine with high pressure water jet by means of a power device. It can jet high pressure water jet into the objects like the pipes,valves ,let the objects full of high pressure water jet.to see if the objects water leakage or not when the hydro test pump reach a pressure datas.this pump install a stop checking valve,ti can stop the high pressure water jet comes back into the pump.so the pressure can show on the pressure gauge.the pressure test purpose can reach.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Applications

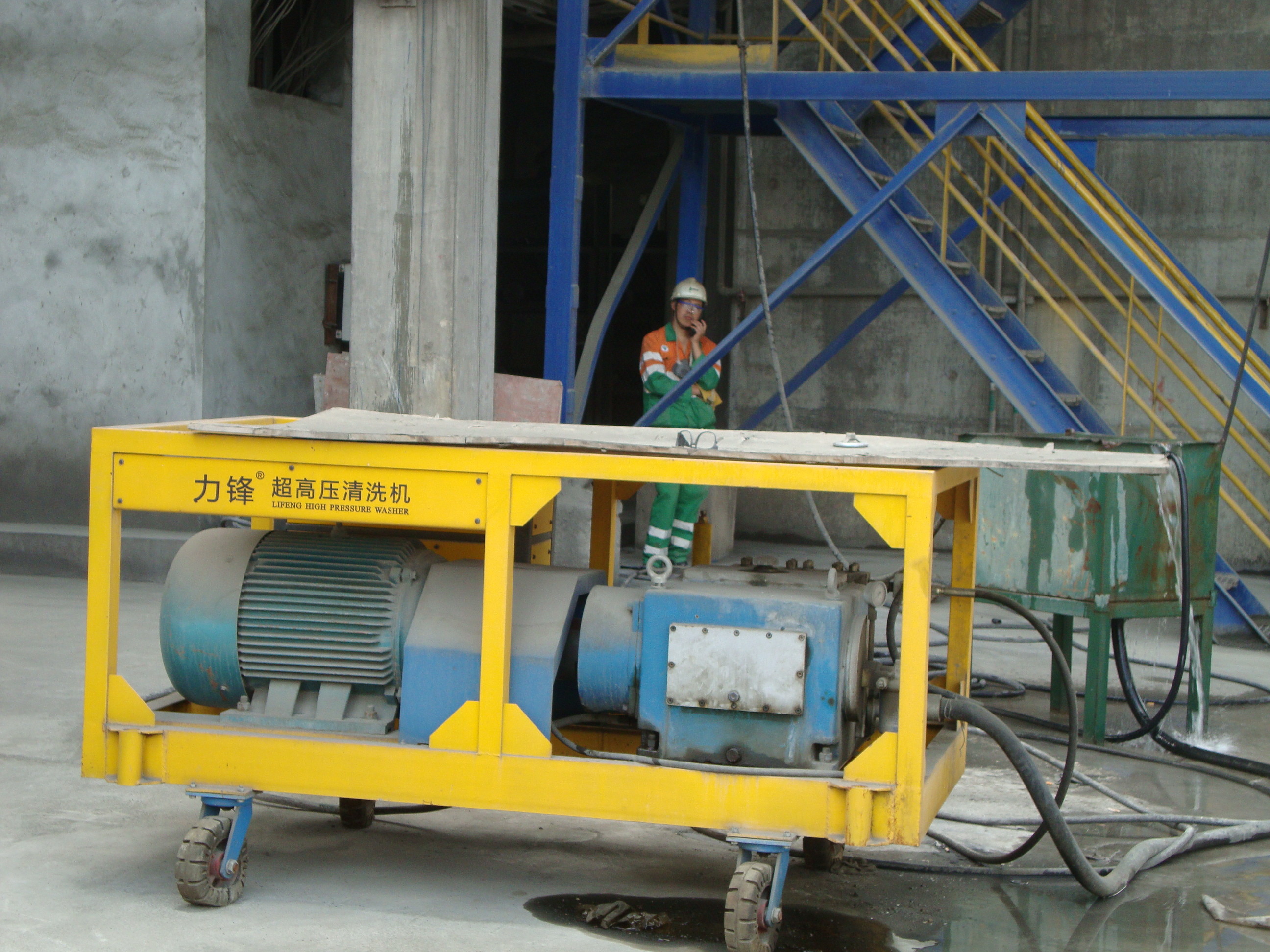

The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.








Applications:
it is widely used in oil pipelines pressure testing,valve pressure testing,tubes pressure testing......


FAQ

132kw Pipelines Pressure Test Pump High Pressure Testing Equipment For Tubes Pressure Testing
A: 20 working days for mass production.Q1. What about the lead time?

Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
