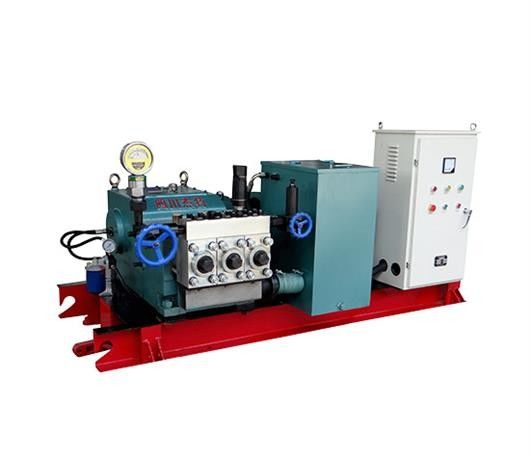

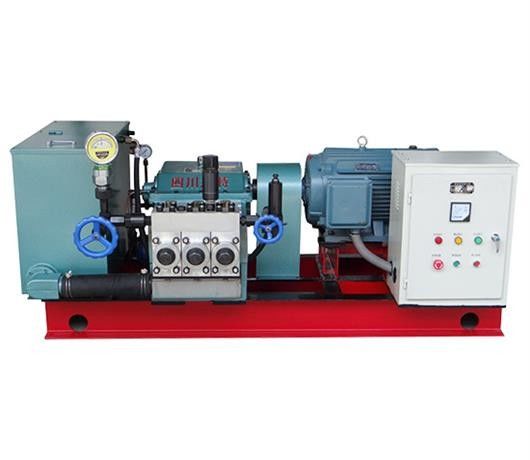

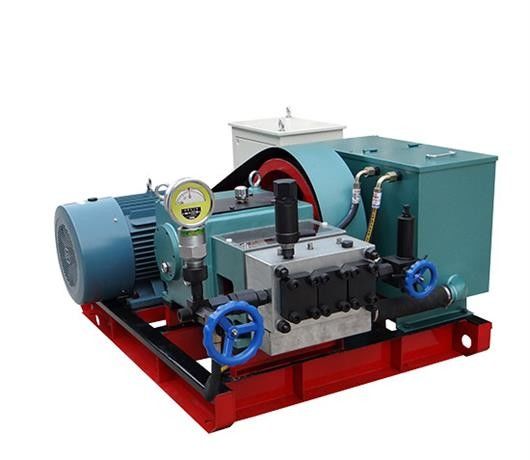

1100bar High Pressure Water Blasting Machine Jet Cleaning Machine
Details:
1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

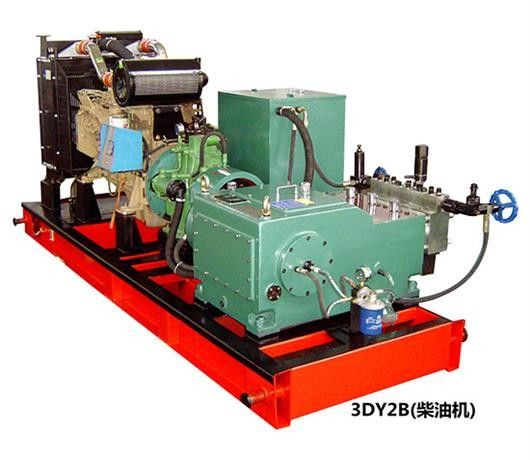

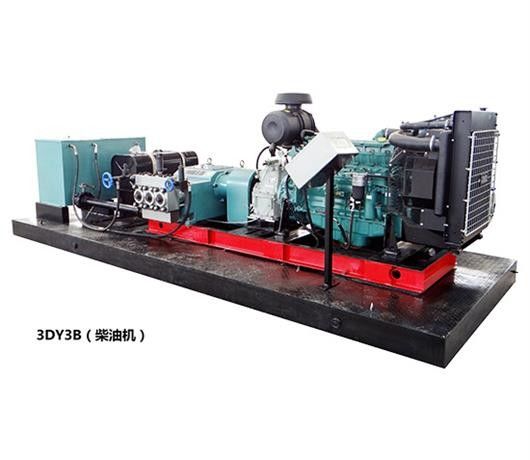

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
Characteristics as below
| MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE |
| Bar | L/min | KW | mm | mm | |
| LF-128/12 | 120 | 128 | 30 | 40 | 66 |
| LF-92/18 | 180 | 92 | 30 | 34 | 66 |
| LF-72/22 | 220 | 72 | 30 | 30 | 66 |
| LF-62/25 | 250 | 62 | 30 | 28 | 66 |
| LF-54/30 | 300 | 54 | 30 | 26 | 66 |
| LF-46/33 | 330 | 46 | 30 | 24 | 66 |
| LF-38/40 | 400 | 38 | 30 | 22 | 66 |
| LF-32/50 | 500 | 32 | 30 | 20 | 66 |
| LF-26/60 | 600 | 26 | 30 | 18 | 66 |
| LF-128/22 | 220 | 128 | 55 | 40 | 66 |
| LF-92/31.5 | 315 | 92 | 55 | 34 | 66 |
| LF-72/40 | 400 | 72 | 55 | 30 | 66 |
| LF-62/45 | 450 | 62 | 55 | 28 | 66 |
| LF-54/52 | 520 | 54 | 55 | 26 | 66 |
| LF-46/63 | 630 | 46 | 55 | 24 | 66 |
| LF-38/75 | 750 | 38 | 55 | 22 | 66 |
| LF-32/85 | 850 | 32 | 55 | 20 | 66 |
| LF-26/110 | 1100 | 26 | 55 | 18 | 66 |
GUARANTY OF QUALITY
We offer products of our own design and production and we guarantee it is high quality. A quality control of performed works is one of the main advantages of our Company. Important components of effective work: high qualification of our engineers, strict implementation of technical standards, application of quality materials, use of the most modern equipment and software.
Strict materials incoming (quality) control and acceptance tests
Laboratory and bench testing
100% compliance with technology, international standards
Application of the most modern high-tech QC tools
All manufactured equipment passes bench and field tests
International quality level
Positive feedbacks from our customers
It is extremely important for us that all our customers are 100% satisfied with the quality of our work!
INNOVATIVE AND TECHNOLOGY LEADER
Our mission is to continuously innovate, develop and offer the most efficient equipment for our customers.
Own design office
Technology Innovation Center
The of Companies employs more than 100 qualified and experienced engineers, designers and technicians
Own laboratory and test benches
Operative analysis and adjustment of design.
Applications:
it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.
This pump is the horizontal single-acting triplex plunger pump, components are dynamic end, hydraulic end, pressure regulating valve,and relief valve!
(1).The dynamic end (attched picture by the following)componented by the pulley, crankshaft, connecting bar , etc. dynamic power produced by the couplings and also decrease the speed.driving the crankshaft rotary,and the connecting bar makes the rotary be direct!
(2)The hydraulic end (attched picture by the following)componented by the plungers,cylinders,pump body,water inlet and outlet valves,etc.the cylinders are fixed on the crank,the connecting bar drive the plunger do reciprocating movement in the cylinder which makes the content of cylinders periodic change.when the plungers are the sucking stroke,the the content of cylinders enlarge,and the water outlet valves close,forming a vacuum,the medium comes into the cylinders upon the pressure of the air;when the plungers are the eduction stroke,the water inlet valves close,the plungers make the medium go into the pump body through the water outlet valves,and then go into the pressure regulate valve,and last comes out from the high pressure hose!
(3)The relief valve (attched picture by the following) Relief valve is high-pressure pump of protection device, when the nozzle blocking, relief valve open, high pressure water flow, protecting the machine was not damaged by the overpressure.the customers do not touch that!
(4)The pressure regulating valve (attched picture by the following)the pressure regulating valve is used to adjust the outlet pressure and keep the system pressure.when the handwheel clockwise rotation pressure-regulating valve core, with the gap seat decreasing, overflowing decreases, machine pressure increases. When the handwheel counterclockwise, flow capacity increase and the pressure drops!
Foreign customers who came to our factory to have a visit
Customers who is using our products and give us some comments:
FAQ
High Pressure Jetting Blasting Cleaning Road Marking Signal Runway Removal Of Airport Road Marking Removal Equipment
Q1. What about the lead time?
A: 20 working days for mass production.
Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Our products are sold all over the world, you can rest assured.
