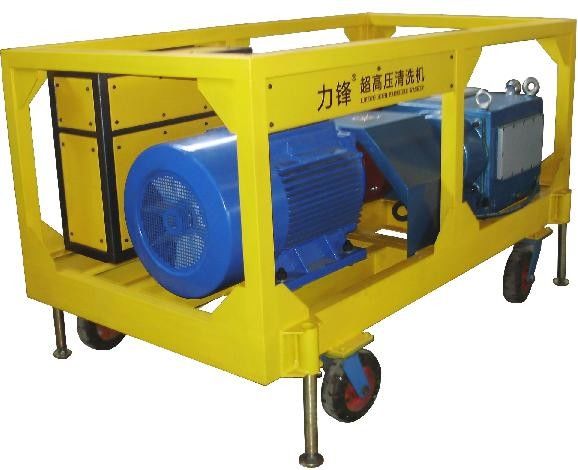

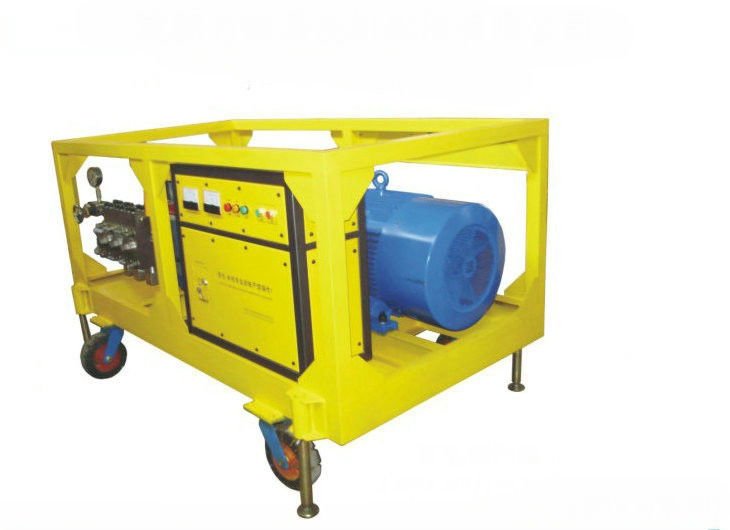

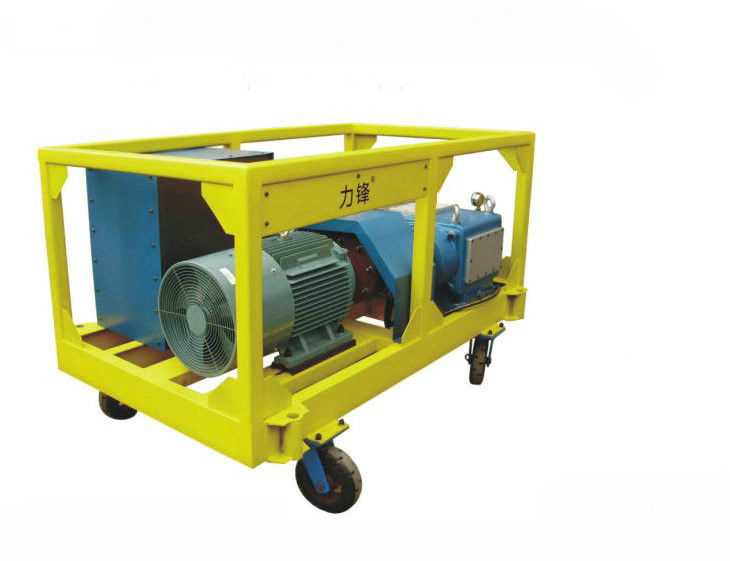

57L/ Min 700bar Ultra High Pressure Water Jet Cleaning Hydro Jetting Equipment

57L/ Min 700bar Ultra High Pressure Water Jet Cleaning Hydro Jetting Equipment

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

57L/ Min 700bar Ultra High Pressure Water Jet Cleaning Hydro Jetting Equipment

Characteristics as below:

Product Description

Industrial high pressure washer is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

• The structure:

The main parts are: triplex high pressure reciprocating pump, diesel engine, water tank,oil tank, inlet water hose, and cleaning accessory, electric control cabinet.

• Triplex high pressure reciprocating pump: It is triplex plunger pump, and the working principle and maintenance please see the operation manual of high pressure pump.
• Water tank: water tank is the device of storing water and filter. There are two filtering clapboards, and it should check for some times. The place of the water must higher than the high pressure pump, in order to exclude the air of inlet pipeline.

Cleaning accessory: there are many kinds of cleaning accessory; it should match according to the client’s request. The usual are: high pressure hoses, high pressure pipes, foot control valve, spray guns, etc.

High pressure hoses are the main safe parts of the washer; it must use the supporting products. Before use, it must be checked, and if there are some wearing parts, it should be rechanged. Fixed the joint, in case of loosing.

The high pressure pipes usually in a fixed place, which made from the stainless steel extra high pressure, and installed in a fixed pipe way. When installation, it should match with the limit valve and globe valve, and control box.

Foot control valve is used in the pipelines, containers, rotary kiln of cement plant, sometimes used in as the twin gun switch valve operation. When use the special accessories such as spray boom, rotating nozzle, it should use the foot control valve to realize the control of water jet change. When loose the valve, the water jet.

Spray gun is the washer’s change energy parts, for considering the safety, usually, it is overflow spray guns, that means there is a overflow pipe, when close the spray gun, it overflows, and unloading the high pressure pump.

Applications


The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

 Industrial High Pressure Washers High Pressure Washing Machine For Pipelines Cleaning,This equipment needs to use a backflush nozzle to go inside to the pipes.the nozzles should be smaller than the heat exchangers pipes.

when start the high pressure cleaning machine,the backflush nozzles can go into the pipes itself by the water jet push power.

then the nozzles water jet can clean the inside of the pipes.



Foreign customers who came to our factory to have a visit




Customers who is using our products and give us some comments:




FAQ

Hydro jetter water blasting machine hydro jetting equipment ultra high pressure water cleaning for heat exchanger

Q1. What about the lead time?
A: 20 working days for mass production.

Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
