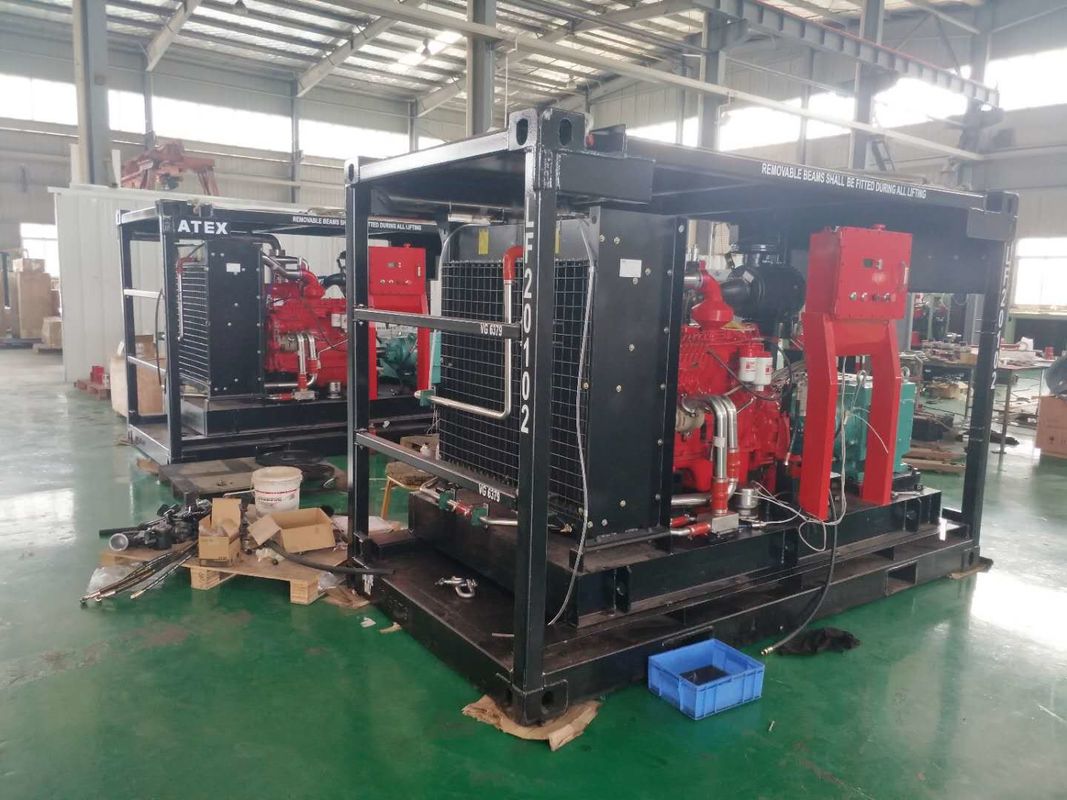

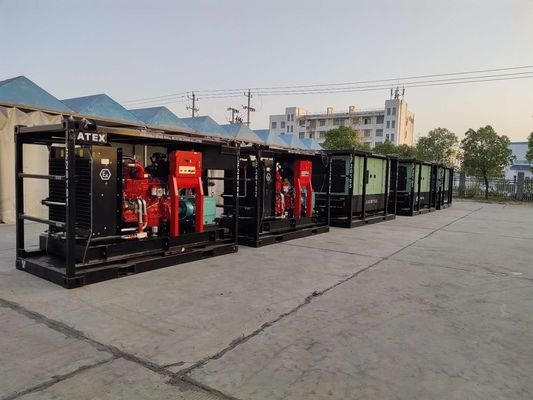

132KW ATEX Zone 2 High Pressure Water Jet Pump With DNV Lifting Frame Explosion Proof High Pressure Pump Unit
Details:
1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

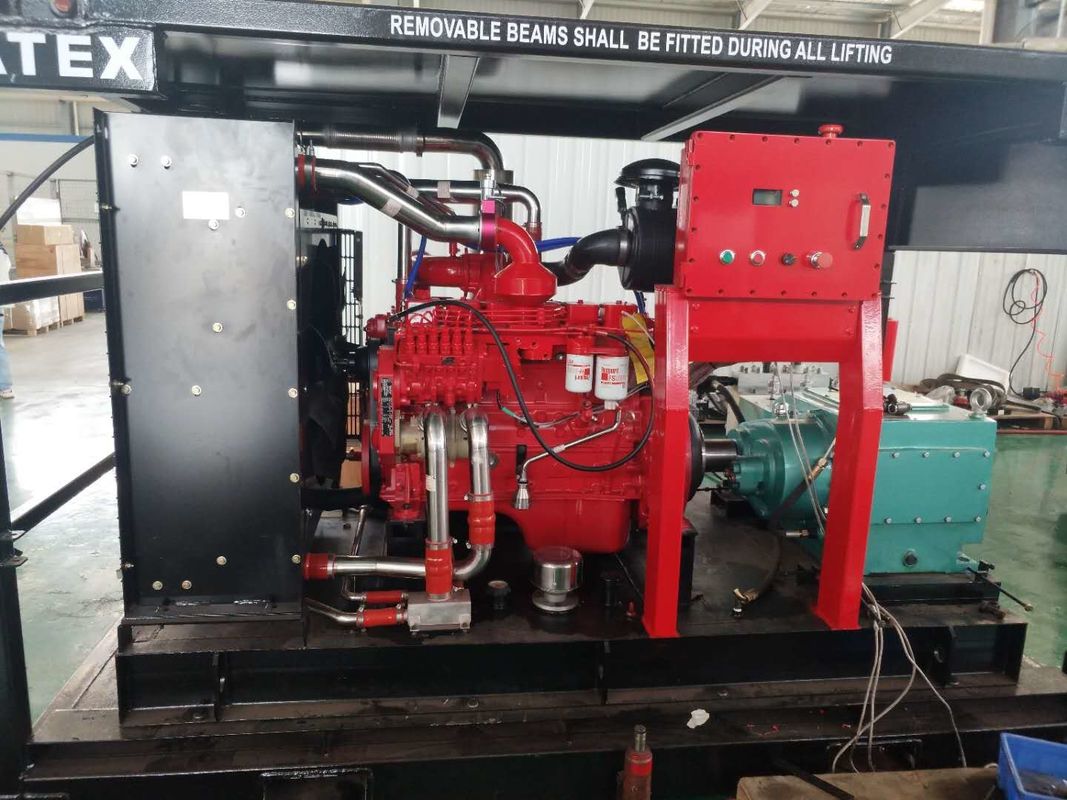

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
132KW ATEX Zone 2 High Pressure Water Jet Pump With DNV Lifting Frame Explosion Proof High Pressure Pump Unit
Characteristics as below:
| MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE |
| Bar | L/min | KW | mm | mm | |
| LF-400/17 | 170 | 400 | 132 | 70 | 70 |
| LF-317/22 | 220 | 317 | 132 | 62 | 70 |
| LF-250/28 | 280 | 250 | 132 | 55 | 70 |
| LF-220/30 | 300 | 220 | 132 | 52 | 70 |
| LF-190/36 | 360 | 190 | 132 | 48 | 70 |
| LF-160/43 | 430 | 160 | 132 | 44 | 70 |
| LF-132/52 | 520 | 132 | 132 | 40 | 70 |
| LF-120/58 | 580 | 120 | 132 | 38 | 70 |
| LF-107/63 | 630 | 107 | 132 | 36 | 70 |
| LF-95/70 | 700 | 95 | 132 | 34 | 70 |
| LF-74/90 | 900 | 74 | 132 | 30 | 70 |
| LF-65/100 | 1000 | 65 | 132 | 28 | 70 |
| LF-56/120 | 1200 | 56 | 132 | 26 | 70 |
GUARANTY OF QUALITY
We offer products of our own design and production and we guarantee it is high quality. A quality control of performed works is one of the main advantages of our Company. Important components of effective work: high qualification of our engineers, strict implementation of technical standards, application of quality materials, use of the most modern equipment and software.
Strict materials incoming (quality) control and acceptance tests
Laboratory and bench testing
100% compliance with technology, international standards
Application of the most modern high-tech QC tools
All manufactured equipment passes bench and field tests
International quality level
Positive feedbacks from our customers
It is extremely important for us that all our customers are 100% satisfied with the quality of our work!
70Mpa 10000psi Explosion Proof Water Pump for High Pressure CleaningProduct Description
The machine is mainly composed by high pressure reciprocating pump, power plant and cleaning accessories.
1, high pressure reciprocating pump:

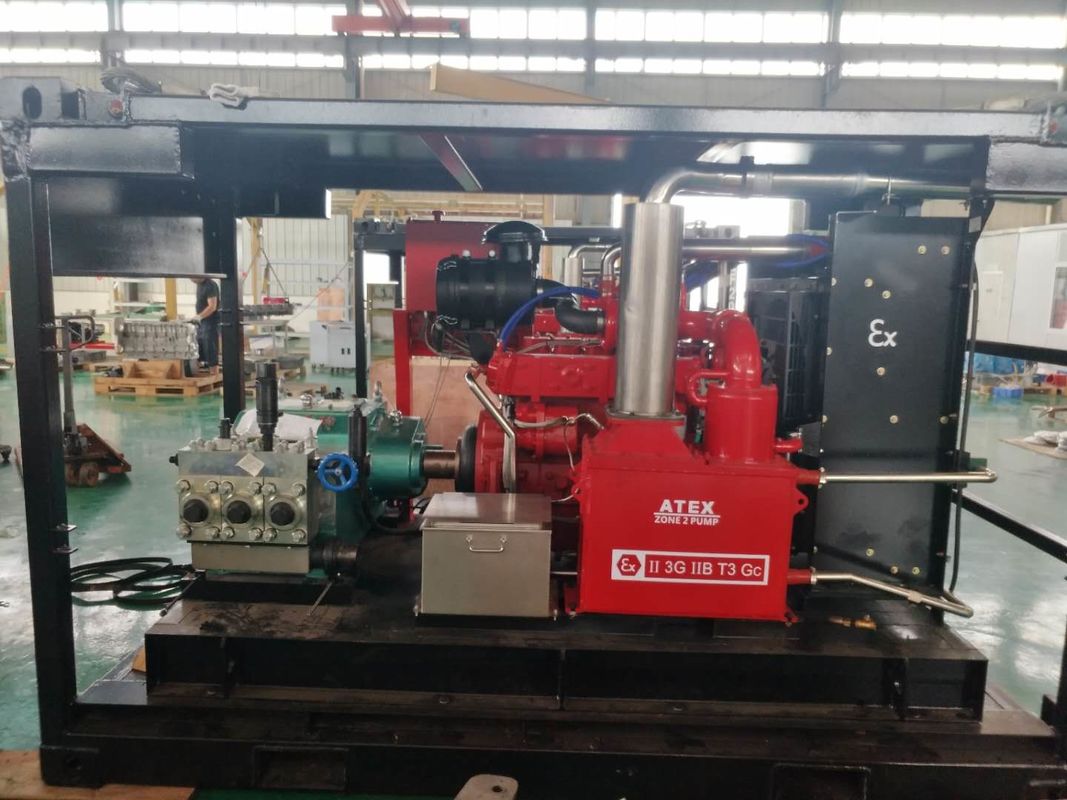

This kind of pump , as a horizontal triplex plunger pump , is driven by electric motor ,which can be divided into two parts: power end and fluid end.
This part consist of belt pulley crankshaft, and connecting rod. Through the turning of belt and belt pulley, the electric motor decreases speed and drives the crankshaft to rotate. Then crank link mechanism transforms the rotation motion into straight reciprocating motion.
(2) Fluid end
This part consists of plunger suit, high-pressure cylinder, and pump body, inlet and outlet water valve. In high-pressure cylinder fixed on the case body, the connecting rod drives plunger to do reciprocating motion, which makes the internal volume of cylinder changed periodically. When in suction stroke, the internal capacity of the cylinder body swells, the water outlet valve closes and forms partial vacuum. Together with the effect of atmospheric pressure, actuating medium is forced into high-pressure cylinder from inlet valve. While in discharge stroke, the inlet water valve closes. Plunger piston squeezes the actuating medium from outlet water valve into pump body, and into pressure regulating valve, then through the high-pressure tube arrivals spray gun by whose resistance the high pressure water forms.
Relief valve (picture3) equipped at right side of pump is designed to protect system against overpressure.
