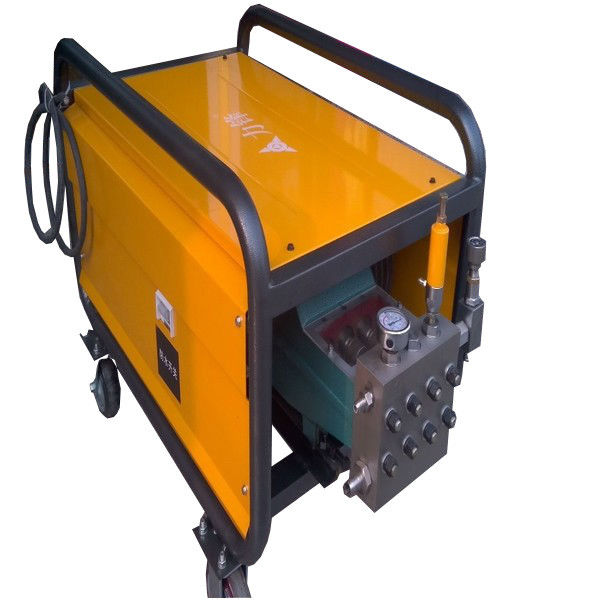

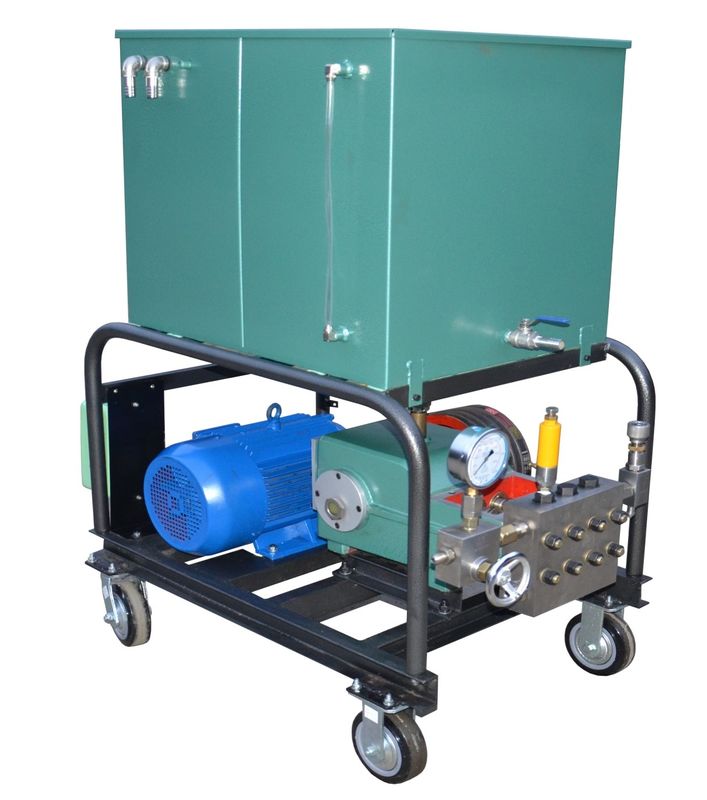

7.5kw electric motor drive high pressure pipelines pressure test pump hydro tester
Details:
1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

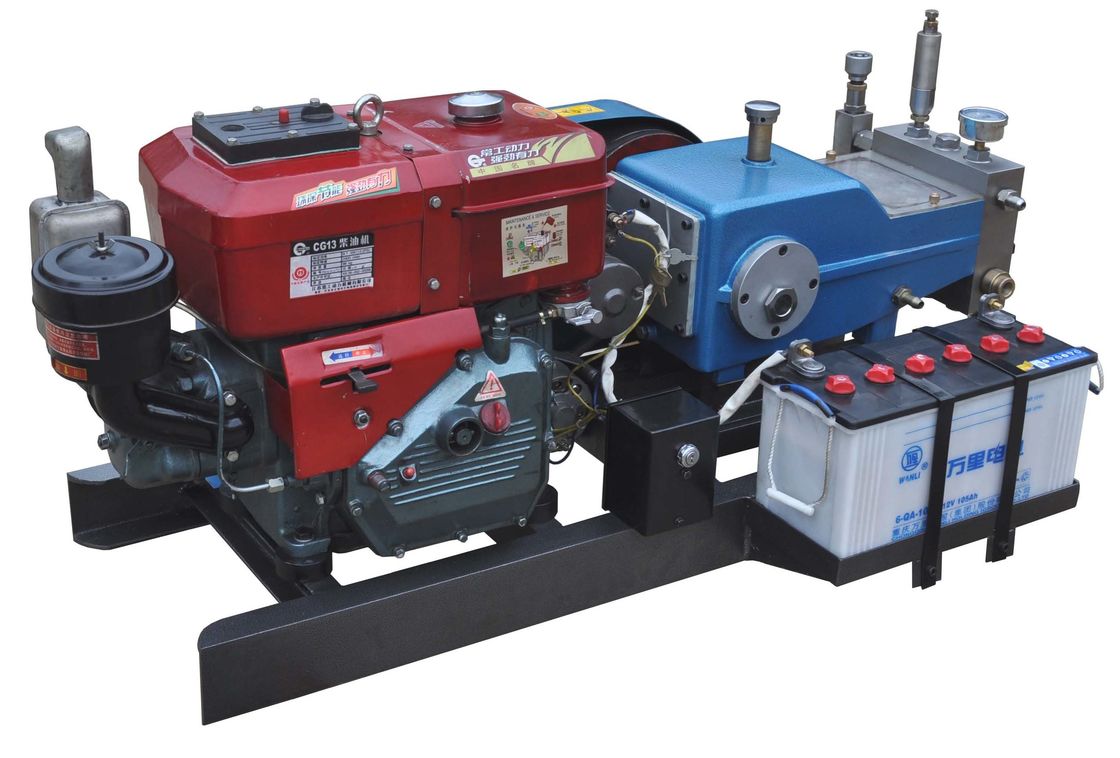

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
7.5kw electric motor drive high pressure pipelines pressure test pump hydro tester
Characteristics as below:
| MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE |
| Bar | L/min | KW | mm | mm | |
| LF-22/15 | 150 | 22 | 7.5 | 20 | 32 |
| LF-18/25 | 250 | 18 | 7.5 | 18 | 32 |
| LF-14/31.5 | 315 | 14 | 7.5 | 16 | 32 |
| LF-11/40 | 400 | 11 | 7.5 | 14 | 32 |
| LF-8/55 | 550 | 8 | 7.5 | 12 | 32 |
| LF-5.6/70 | 700 | 5.6 | 7.5 | 10 | 32 |
| LF-22/25 | 250 | 22 | 11 | 20 | 32 |
| LF-18/32 | 320 | 18 | 11 | 18 | 32 |
| LF-14/40 | 400 | 14 | 11 | 16 | 32 |
Product Description
The Electric Motor Drive High Pressure Hydro Test Pumps have two kinds of the usage,one is for the high pressure cleaning purpose,and another is for pressure testing purpose. Hydro Test Pump is an equipment which is used to test the pressure of objects,the machine with high pressure water jet by means of a power device. It can jet high pressure water jet into the objects like the pipes,valves ,let the objects full of high pressure water jet.to see if the objects water leakage or not when the hydro test pump reach a pressure datas. this pump install a stop checking valve,ti can stop the high pressure water jet comes back into the pump. so the pressure can show on the pressure gauge.the pressure test purpose can reach.
Applications:
it is widely used in oil pipelines pressure testing,valve pressure testing,tubes pressure testing......
FAQ
7.5kw electric motor drive high pressure pipelines pressure test pump hydro tester
Q1. What about the lead time?
A: 20 working days for mass production.
Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Our products are sold all over the world, you can rest assured.
