Oil Field Explosion Proof Pneumatic Pressure Testing Equipment With Chart Recorder
Company Infomation:
we are a 40 years manufacturing factory which is located in Chengdu China.as the first factory who begin to make the triplex pumps,
we can supply all kinds of the hydro test pumps for the valves,pipeline,tanks pressure testing.
widely used in oil refiney factory,oil transporation,and some valves manufacturing factory.
our products have been exported to Australia,Sweden,Mexico,and so on.
Customers satified them very much.
Details of the Fire-Proof Type Pneumatic Pressure Test Pump For Safety Valves On Oil Field:
1.It can apply to the explosion environment ,like the offshore field pipelines pressure testing.which place avoid the fire.
2.transmission does not use the lubricated oil,so it needs not to worry about leaking oil.it satisfy where the place require no oil to use the products.
3.the test pressure can controlled by hands.it has the function of the pressure keeping when the machine stopped.
4. it is easier to install,fix,operate,and easy to move.

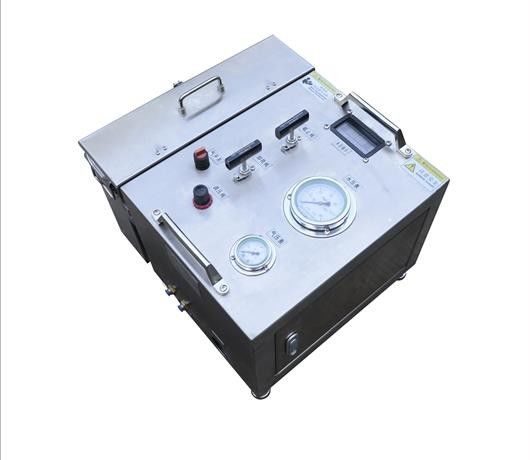

Oil Field Explosion Proof Pneumatic Pressure Testing Equipment With Chart Recorder
Characteristics as below:
| Product Name | Pneumatic liquid booster pump hydrostatic test bench with chart recorder |
| Model | QST160-80 |
| Pressure Ratio | 100:1 |
| Drive Air Source Pressure | 3-8bar |
| Medium | Hydraulic oil or water |
| Maximum Outlet Pressure | 800 bar |
| When Adjusting Drive Pressure to 5.0 bar | The high output pressure is 500 bar/7250psi |
| When Adjusting Drive Pressure to 6.2 bar | The high output pressure is 620 bar/8990psi |
| Power Source | liquid booster pump |
| Outlet Pressure Control Unit | Drive air regulator valve |
| Pressure Control Accuracy | Less than 1%F.S; |
| Pressure Measurement Accuracy | ±0.4% FS pressure gauge |
| Frame Type | 304 Stainless steel |
| Valves and Pipeline | High pressure needle valve and stainless steel tube |
| Round Chart Recorder | Record and print test data into round chart |
| Test Period | 1hour / 4 hours /12hours/ 24 hours |
| Pressure Sensor Range | 100 MPA |
| Recorder Spare Parts | 100 paper chart, Spare print record bar |
| Equipment Weight | 52KG |
| Package Weight | 62kg |
| Equipment Size | 660*520*630mm |
| Package Size | 720*590*650mm |
| Connection Thread Size (Inch) High Pressure Outlet | NPT1/4 Internal Thread |
| Production Time | 12-15 days |
Applications:
it is widely used in oil pipelines pressure test,valves pressure test,boiler pressure testing and tubes pressure test,gas cylinders pressure testing.and bursting test.where needs explosion-proof .
......
Pressure Testing Pump For Oil Well Safety Valves are working at foreign customers site:
FAQ
Explosion-Proof Type Pneumatic Pressure Test Pump For Safety Valves On Oil Field:
Q1. What is your leading time?
A: we need 40 days to finish the product.
Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Our products are sold all over the world, you can rest assured.
