High pressure methyl alcohol jet pumps for the gas well drilling methanol jetting pumps
Details:
1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy housing.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

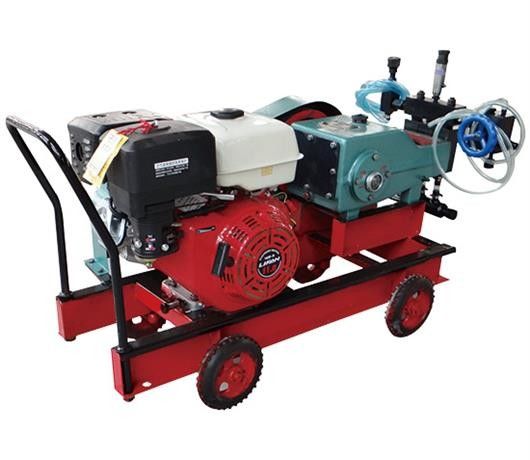

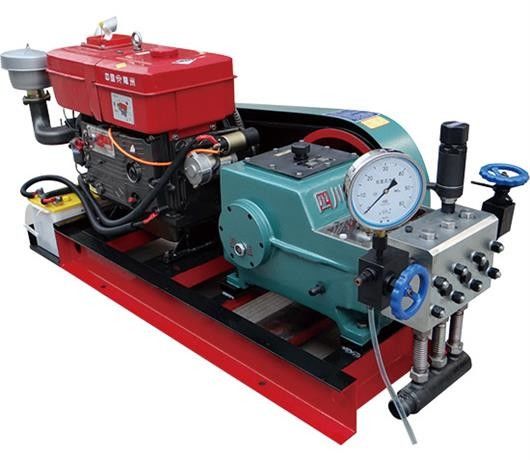

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
Features:
1. High pressure triple plunger pump ( Reciprocating plunger pump, Easy maintenance pump head )
Pressure: 500bar to 1500bar
Water flow: 40 LPM to 80 LPM
Industrial Water Jet Pump Sewer Jetting Machine For Drain Cleaning Drain Jetter Cleaning Machine For Drainage Wash
Characteristics as below:
| MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE |
| Bar | L/min | KW | mm | mm | |
| LF-22/15 | 150 | 22 | 7.5 | 20 | 32 |
| LF-18/25 | 250 | 18 | 7.5 | 18 | 32 |
| LF-14/31.5 | 315 | 14 | 7.5 | 16 | 32 |
| LF-11/40 | 400 | 11 | 7.5 | 14 | 32 |
| LF-8/55 | 550 | 8 | 7.5 | 12 | 32 |
| LF-5.6/70 | 700 | 5.6 | 7.5 | 10 | 32 |
| LF-22/25 | 250 | 22 | 11 | 20 | 32 |
| LF-18/32 | 320 | 18 | 11 | 18 | 32 |
| LF-14/40 | 400 | 14 | 11 | 16 | 32 |
Product Description
High pressure methyl alcohol jet pumps for the gas well drilling methanol jetting pumps is an equipment which can jet the methanol into the gas drilling well.
when the temperature is very low to ice degree,the water in the gas will freeze to ice and block the gas pipes.this will damage the pipes.
for solving this problem,we design the high pressure methyl alcohol jet pumps for the gas well drilling methanol jetting pumps system.this can solve the ice and block the problem.
we can also make it to be automatic system .when in the pipes pressure reach the set pressure,the system begins to jet the methanol into the gas well.this can not only solve the block problems,but also saves the gas drilling cost.
Features
This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.

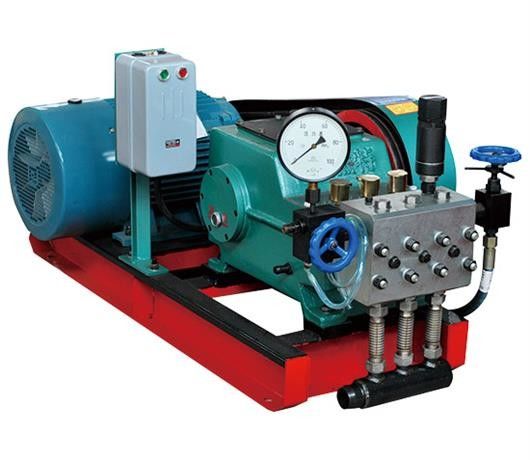

1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.
Applications
The pumps are widely used in oil refinery pipes and gas drilling fields.
As a 40 years old manufacturing factory,we have many customers from all over the world,
the below are some of our customers photos who came to our factory:
Foreign cusomers give us comments:
FAQ
Industrial Water Jet Pump Sewer Jetting Machine For Drain Cleaning Drain Jetter Cleaning Machine For Drainage Wash
Q1. Are you a manufacturing factory or the trading company?
A: we are a 40 years manufacturing factory.
Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Our products are sold all over the world, you can rest assured.
