15kw High Pressure Hydro Test Pump For Pipelines Diesel Engine Drive

15kw Diesel Engine Drive High Pressure Hydro Test Pump Pipelines Pressure Testing Pump

Details:

1. Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2. Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3. Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4. All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5. For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

15kw Diesel Engine Drive High Pressure Hydro Test Pump Pipelines Pressure Testing Pump

Characteristics as below:





Product Description
The high pressure pumps have two kinds of the usage,one is for the high pressure cleaning purpose,and another is for pressure testing purpose.Hydro Test Pump is an equipment which is used to test the pressure of objects,the machine with high pressure water jet by means of a power device. It can jet high pressure water jet into the objects like the pipes,valves ,let the objects full of high pressure water jet.to see if the objects water leakage or not when the hydro test pump reach a pressure datas.this pump install a stop checking valve,ti can stop the high pressure water jet comes back into the pump.so the pressure can show on the pressure gauge.the pressure test purpose can reach.

The pressure test pump can be driven by the electric motor,petrol engine,diesel engine.due to some places have no electricity,so most of customers like the diesel/petrol engine drive.

The hydrostatic pressure testing pump is a diagnostic technique to perform hydrostatic tube test,hydrostatic pipelines test,pressure hoses pressure testing,cylinder hydro test,boilers pressure test,valves pressure test etc,for leaking or defects.

The hydro test pump equipment is used to check the component to be tested,is being filled up with an incompressible liquid,such as water or oil,with the help of a positive displacement appropriate safety relief and controls,the pressure of the test componet is slowly increased to a predetermined time.Visual inspection is subsequently performed to determine wheter any leakage exists or the pressure reduces from the set pressure point.

Our factory also offers hydrostatic test pump with ore-filling cum pre-pressurzing cum pressure building system.For large volume of hydro test pump combine hydro testing unit is most prefered solution.
also we supply the automatic hydro test pump controller .

Our factory offers wide range of the pressure testing pump ranging from 10L/min to 400L/min and the pressure from 100bar to 1400bar.

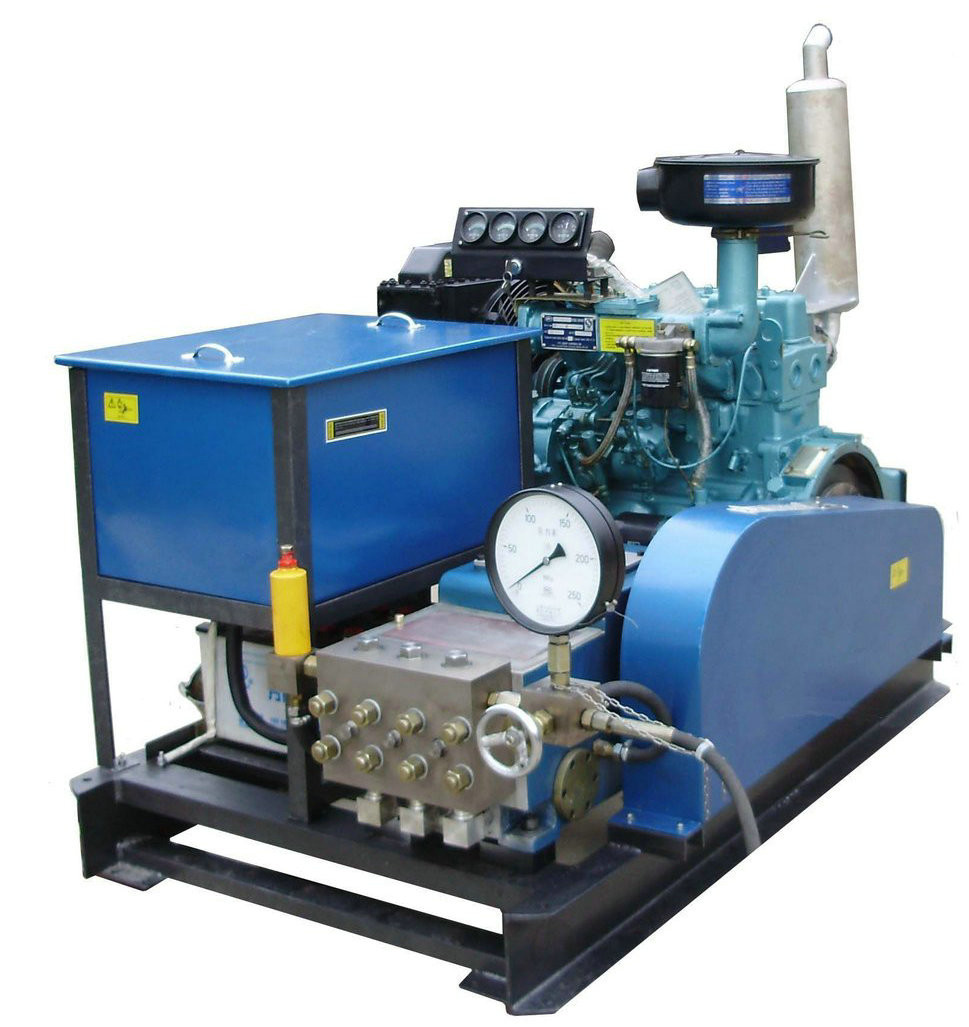

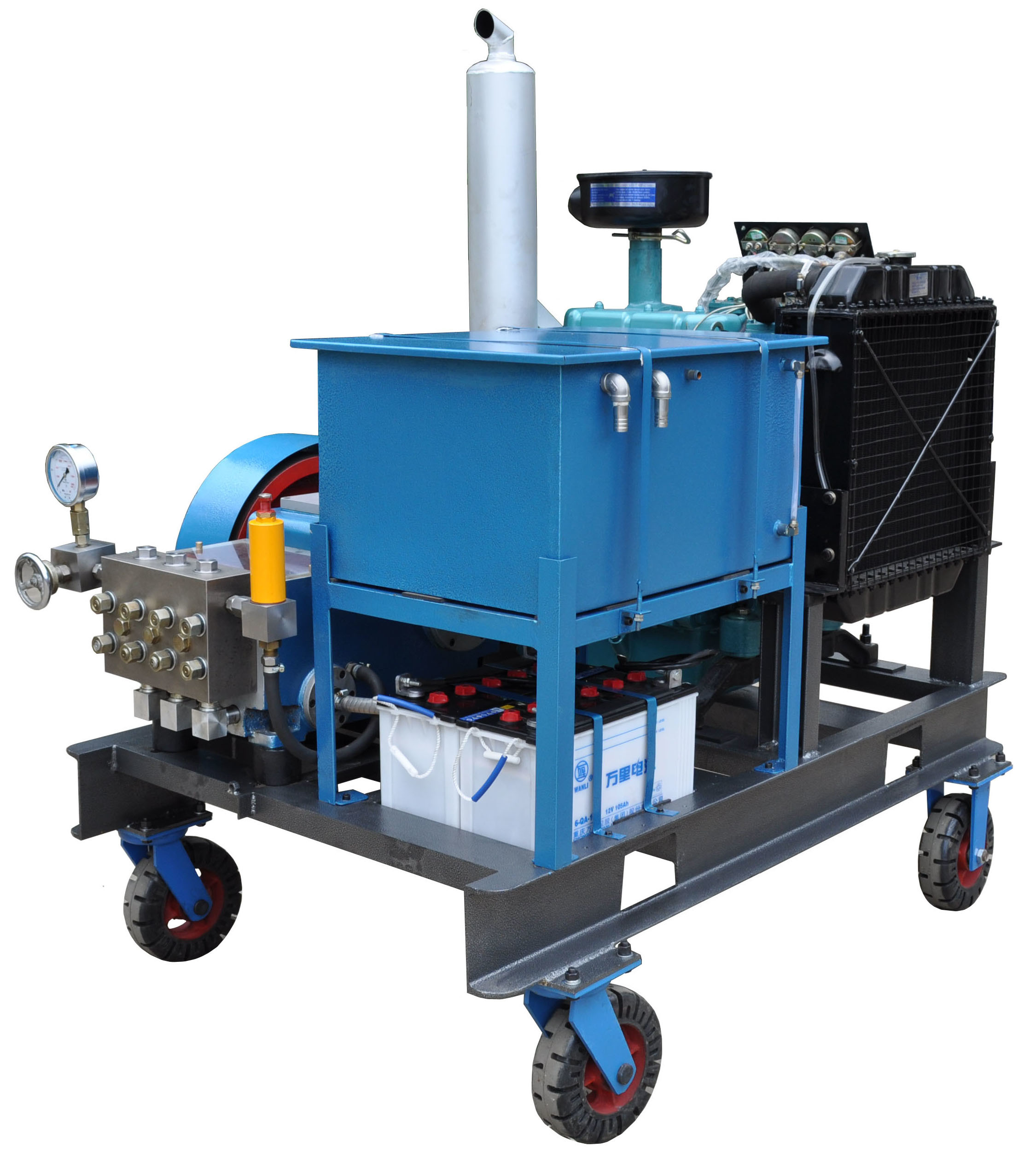

Diesel/petrol engine driven pressure test pump of  photos like below,they are useing the YAMAHA petrol engine drive with good quality.



Water jetting equipment using high pressure water pumps is used to direct high pressure water streams against material to clean or cut it. The streams of water released by water jetting and water blasting equipment is normally 5,000 PSI to 40,000 PSI. In an efficient water jetting system, pressure is vital consideration. Typically, hardened deposits respond better with high pressure water pumps, and softer materials are best removed with lower flows.

Water jetting and water blasting equipment is used for cleaning or demolition of products made of metal, wood, concrete, stone, plastic, glass or other building materials.
Specific components within a water jetting system include abrasive injectors, pressure generators, blast cabinets or booths, water guns, and water tanks. Abrasive injectors can convert a water jetting system into an abrasive blaster. The injection or metering system controls the amount of abrasive pushed into the air stream. In large systems, the delivery system and injection system may be separate components. Pressure generators increase the pressure of the carrier fluid (water or air). Plunger-type intensifier pumps are commonly used to generate high pressure water for water jet cutting, wet or water abrasive blasting and non-abrasive pressure washing or rinsing.
Applications:

15kw High Pressure Hydro Test Pump For Pipelines Diesel Engine Drive
1.using to Distilleries Cleaning of heat exchanger, boiler tubes, vats and pipe lines. With pressure 600bar- 2800bar

2.using in washing the Food processing Grease, fats, oil and dough from ovens, mixers, conveyors and facilities. With pressure 200bar – 1000bar

3.using to clean the Foundries Removal of deposits, metal oxidation, ceramic & sand core materials for casting. With pressure 1000bar – 2800bar

4.using in Highway Maintenance Cleaning of grease, vegetation, mud tar, cement or asphalt on vehicles & machinery. Removal of
expansion joints, paint strips and concrete demolishing on road bridges. With pressure 350bar – 2800bar

5.using to clean the Marine & Offshore Removal of marine growth, barnacles, paint and rust on ships, deck, hull and ballast tanks. Oil platforms, storage tanks, boilers, cold cutting, underwater blasting, pipe cleaning, paint and rust. With the pressure 500bar – 2800bar


Some Foreign customers who came to our factory to have a look at the machines:


The pressure test pump package:
Normally we use the wooden box to pack the machines like the below photos:




FAQ
15kw Diesel Engine Drive High Pressure Hydro Test Pump Pipelines Pressure Testing Pump

Q1. What about the lead time?
A: 20 working days for mass production.

Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
