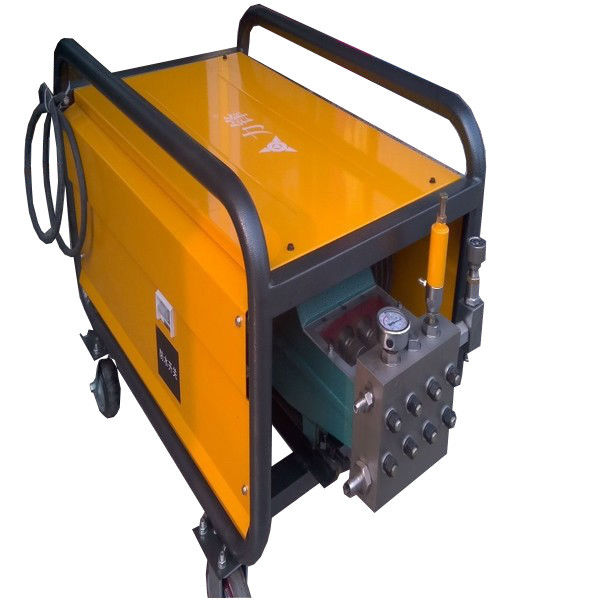

Diesel High Pressure Water Jet Pumps Hydro Jet Water Pump Hydro Blaster

Diesel High Pressure Water Jet Pumps Hydro Jet Water Pump High Pressure Water Jetter

Details:

1. Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy housing.

2. Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.

3. Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.

4. All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

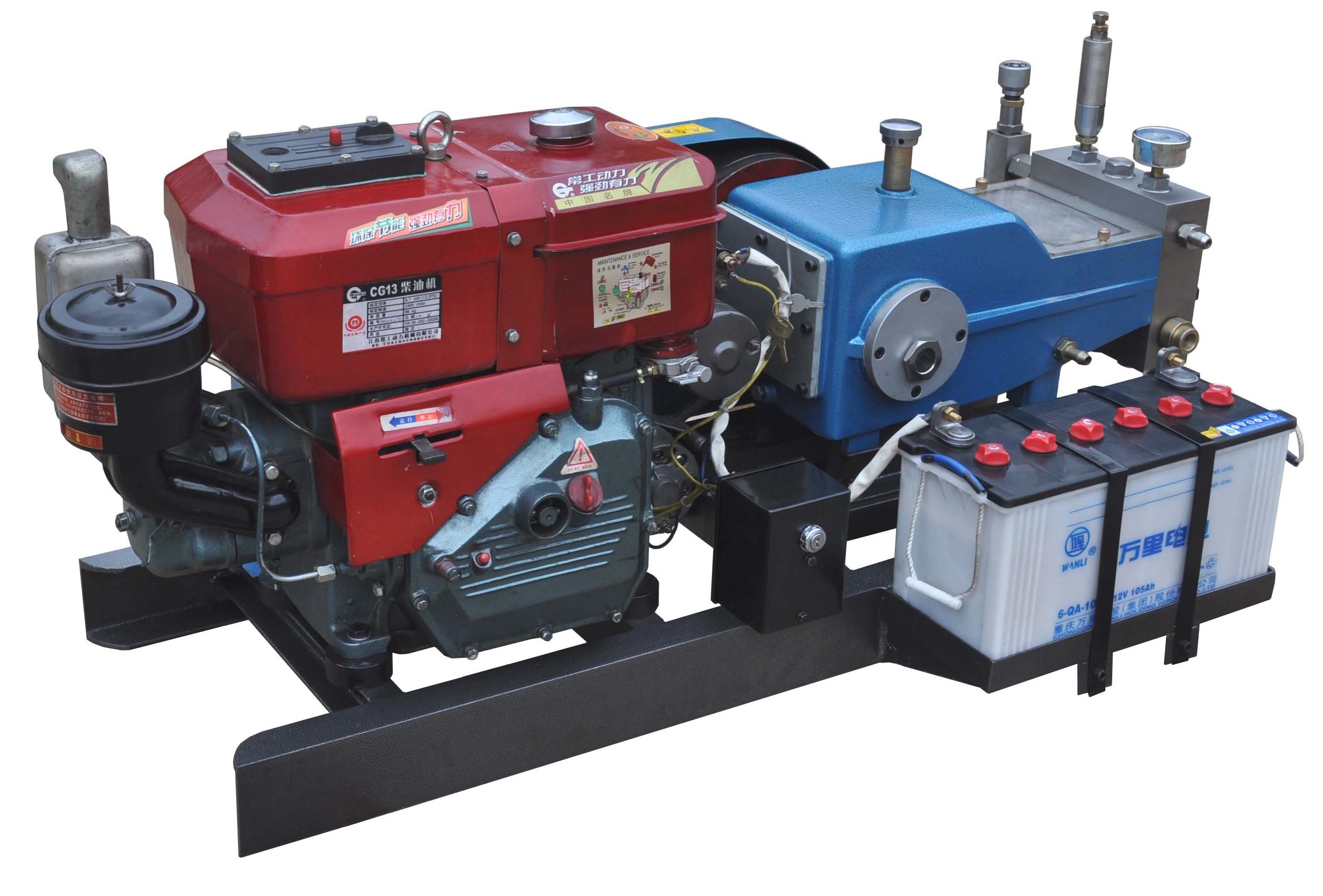

5. For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

Features:

1. High pressure triple plunger pump ( Reciprocating plunger pump, Easy maintenance pump head )
Pressure: 500bar to 1500bar
Water flow: 40 LPM to 80 LPM

Diesel High Pressure Water Jet Pumps Hydro Jet Water Pump High Pressure Water Jetter

Characteristics as below:

Product Description

Diesel High Pressure Water Jet Pumps Hydro Jet Water Pump is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.

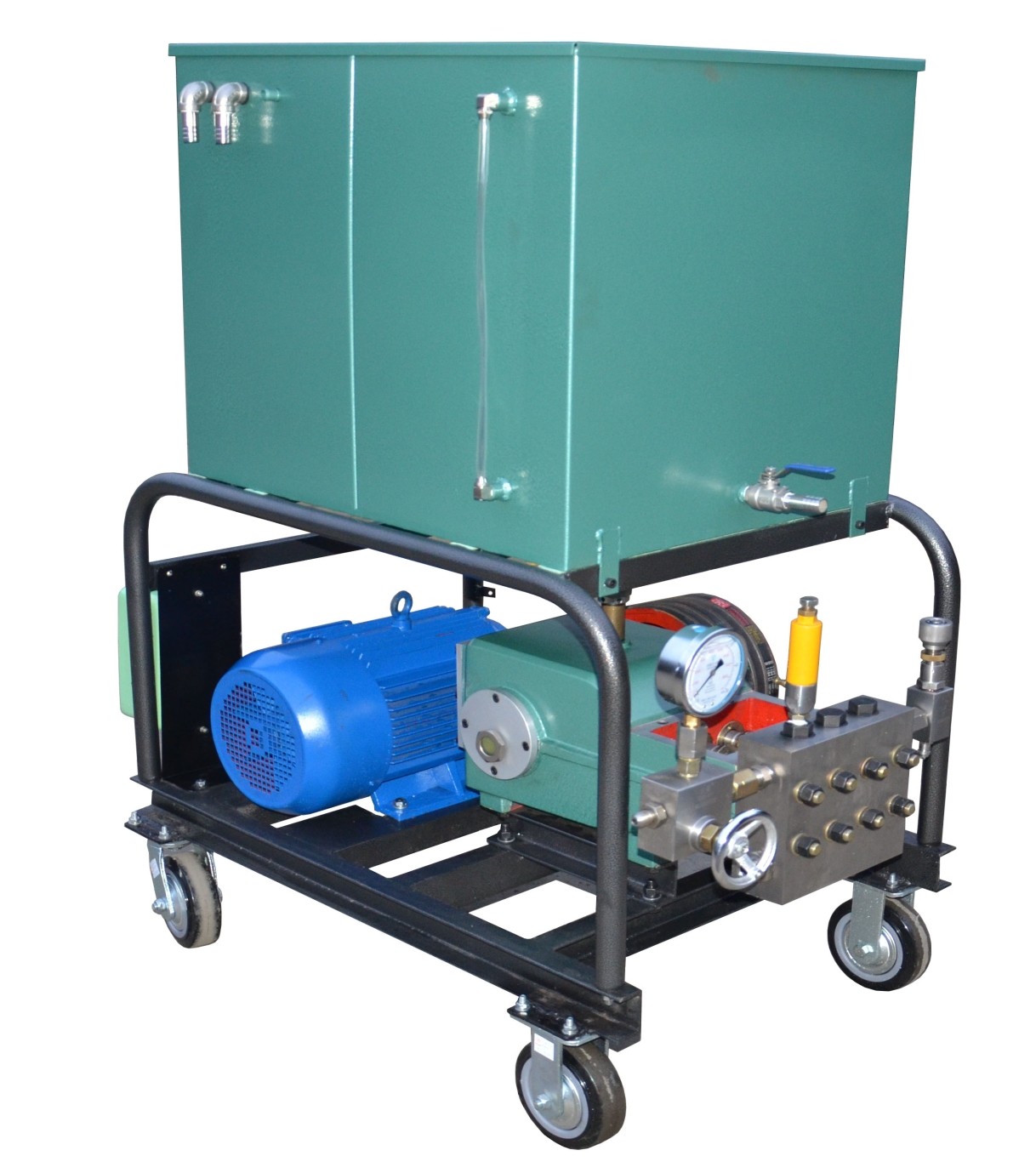

  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Applications


The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

As a 40 years old manufacturing factory,we have many customers from all over the world,

the below are some of our customers photos who came to our factory:

Applications:

it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.

Install accessories and pressure gauge

Mount on high pressure hose and spray gun, (for installation refer to picture ),. at this time, detach the plugs on the pressure regulating valve and fit with pressure gauge. Connect the pressure-regulating valve to spray gun, then seal each bolted connections with red copper gasket.

2, Operation guide

• Preparation before initial use

• Apply oil into the wheel box until oil surface reaches the middle of oil leveler. Meanwhile, add lubricant into the front end of tank..

Lubricant type: N46﹟machine oil( air compressor oil or hydraulic oil with similar viscosity coefficient)

• Check screwed connections, and tighten them if necessary.
• Check whether the insulated parts of electric motor and starting vessel meet electric appliance standards. For your safety, earth the wire reliably.
• Connect the inlet junction panel on the case to water source (clean and sufficient) by pipe.

FAQ

Diesel High Pressure Water Jet Pumps Hydro Jet Water Pump High Pressure Water Jetter

Q1. Are you a manufacturing factory or the trading company?

A: we are a 40 years manufacturing factory.

Q2. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by  sea shipping.

Q4. How to proceed an order for the product?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly:we sign a contract

Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.
