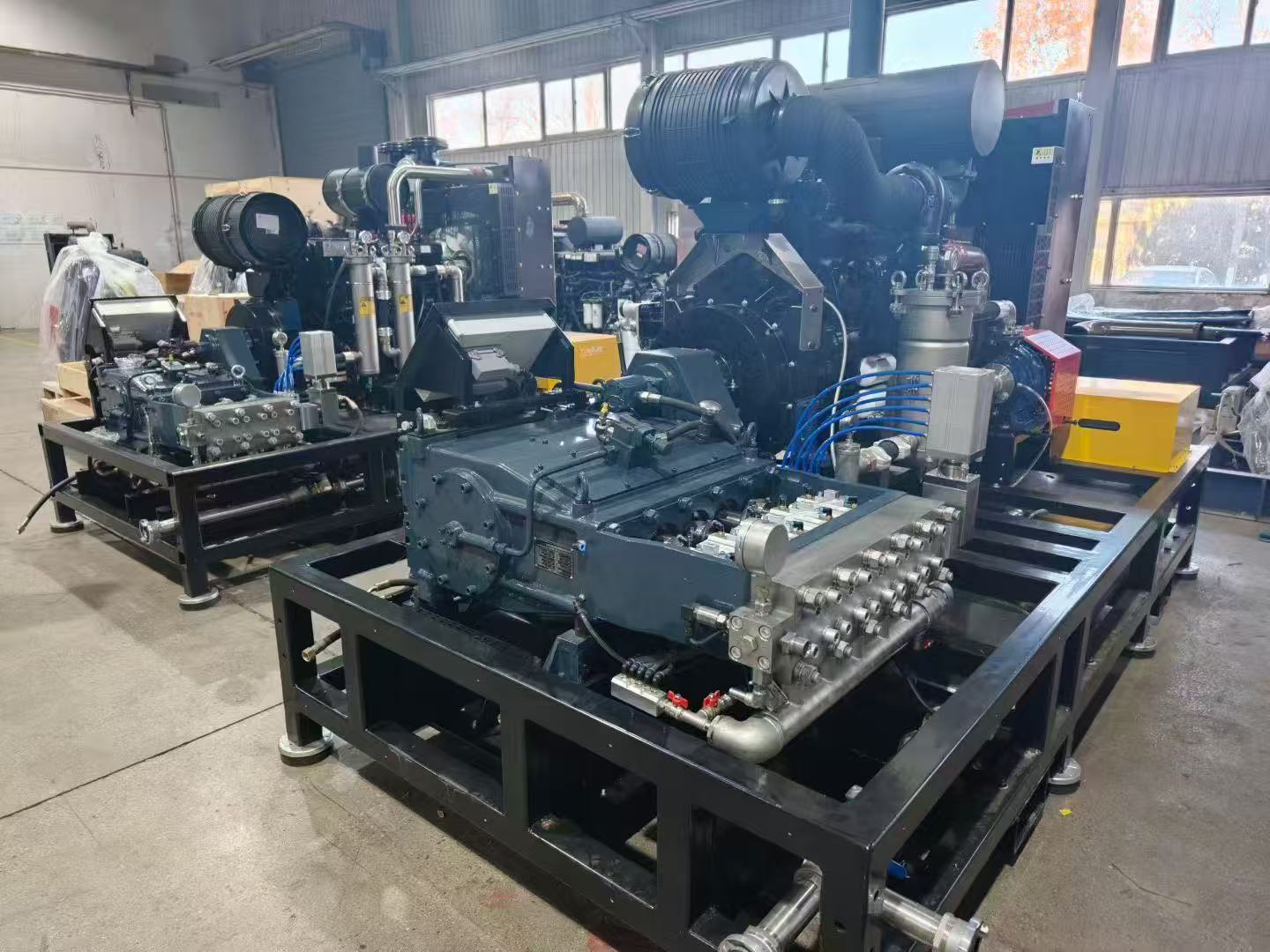

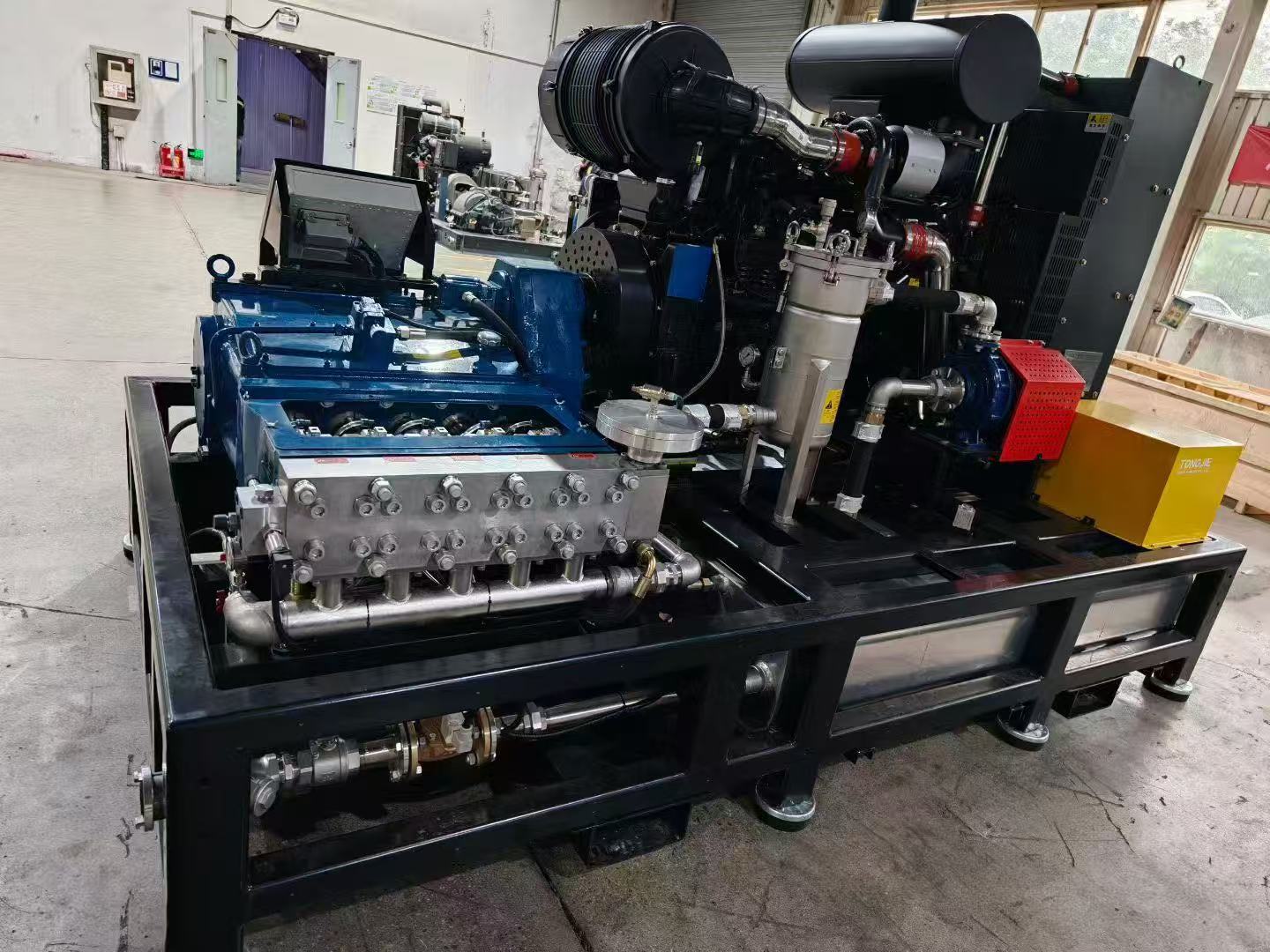

Electric Motor Explosion Proof Hydro Test Pump High Pressure Testing System

Electric Motor Explosion Proof Hydro Test Pump High Pressure Testing System

Thanks for using Lifeng serials high pressure industrial washers. We produced these series washers according to the special conditions of industrial cleaning. We self-design and produce the high quality products by using the advanced technology and processing methods. It is reasonable in structure, easy in operation and is durable in use. It widely used in removing sand, paint, dirty stuff, colloid of castings. It gets a good reputation in sugar-refinery, pharmaceutical factory, cement plant, construction, chemical engineering, petroleum, and shipping.

Details:

1.Power end crankshaft housing is made by the cast iron.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr OR 3Cr13,it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
6.It is for industrial cleaning or removing.it is heavy duty.
7.It is easy to fix once the wearing parts are broken

8.The cylinders use the new technology,it avoided the cylinders broken problems.

9.we can make according to customers request of the engine.

10.We can supply the pressure datas print out system.

11.we can supply the trailer type with 4 wheels on the bottom.

12.40 years manufacturing experience of making such kind of the test pumps.

13.We can supply the pressure from 10MPa to 600MPa testing pumps.

Electric Motor Explosion Proof Hydro Test Pump High Pressure Testing System

Characteristics as below:

Product Description

The high pressure pumps have two kinds of the usage,one is for the high pressure cleaning purpose,and another is for pressure testing purpose.Hydro Test Pump is an equipment which is used to test the pressure of objects,the machine with high pressure water jet by means of a power device. It can jet high pressure water jet into the objects like the pipes,valves ,let the objects full of high pressure water jet.to see if the objects water leakage or not when the hydro test pump reach a pressure datas.this pump install a stop checking valve,ti can stop the high pressure water jet comes back into the pump.so the pressure can show on the pressure gauge.the pressure test purpose can reach.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Applications

The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

Pressure Testing Pump For Oil Well Safety Valves are working at foreign customers site:

From customers comments who is using the product:

the machines are testing the pipes pressure.

Packings as below :

FAQ

15000psi 75kw High Pressure Hydro Test Pump For Pipes Pressure Testing Hydraulic Water Pressure Testing Machine:

Q1. What is your leading time?

A: we need 40 days to finish the product.

Q2. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by  sea shipping.

Q4. How to proceed an order for the product?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly:we sign a contract

Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.
