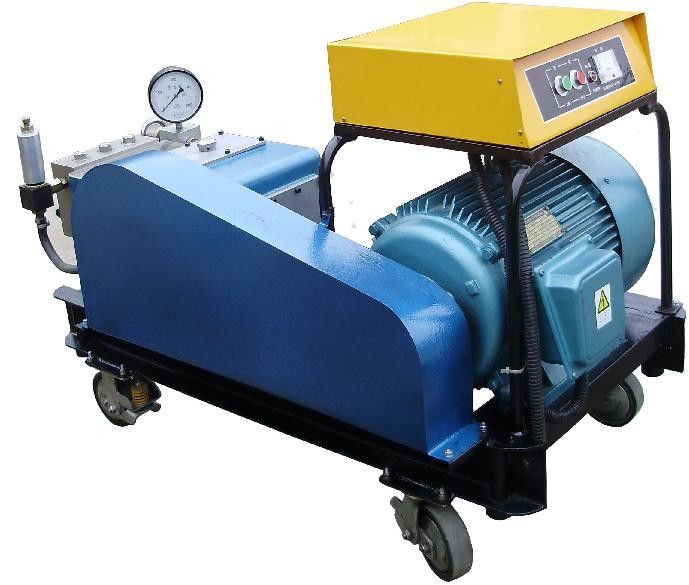

440V Electric Motor Drive Portable High Pressure Water Blaster 10000psi

440V Electric Motor Drive Portable High Pressure Water Blaster 10000psi For Ship Cleaning

Details:

1. The power end shaft shell is made of cast iron. It is stronger than aluminum alloy.
2. The crosshead is made of babbitt. It has a long service life for industrial design.
3. The hydraulic end pump head is made of 40Cr cemented carbide. It can work continuously for cleaning.
4. All hydraulic ends are designed to facilitate unloading, so they can be easily repaired when parts are damaged.
5. For some outdoor applications, we can make it driven by diesel engine or gasoline engine.

• main feature:

• Designed for all-in-one transmission case and low speed, reasonable structure,high reliability,can satisfy the long term continuous operation!
• Compulsory lubrication system, effectively reduce power consumption and parts wearing!
• High strength overloaded design, ensure big load requirements.
• Plunger core automatic regulate device
• Independent high pressure cylinder,rate of the stoppage low,simple maintenance.
• Straight-line hydraulic end,avoided the stress concentration, greatly improved the high pressure cylinders.
• It is driven by the 3 phase electric motor,the voltage can be from 380V to 440V,the motor frequency can be from 50HZ to 60HZ.this is upto customers local electricity requirements.


440V Electric Motor Drive Portable High Pressure Water Blaster 10000psi For Ship Cleaning

Characteristics as below:


Product Description

High Pressure Hydro Blasters are a kind of equipment which is used to clean the surface of objects. The machine sprays high-pressure water through the power unit. It can peel off dirt and wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compared with chemical cleaning.
The bare shaft pump is used for machine replacement, or you can choose to connect the diesel engine to the bare shaft pump.
Find the appropriate engine power and speed to connect the pump to the engine. Connect to other accessories such as spray guns and high-pressure hoses. You can use the whole machine.



Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.

  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.


• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

High-pressure pump power input shaft must be with power output shaft center high equal, Connection mode is coupling.Power input power must be higher than the high pressure pump power rating,1450rpm, the rotary way must agree to the pump’s input end mark.

High pressure pump power input size as right shown, the input shaft coupling inside the area with the joint area should be more than 75%, The manufacturing precision of coupling should comply with the requirements, also should make dynamic balance test,In order to minimize the damage of high pressurepump vibration.

High pressure pump’s four fixing bolts should choose high strength grade which should be tightened when installation.

After the installation of the high pressure pump, turn the coupling with the hand, which should feel consistent, no resistance and squeak& rattle phenomenon.

Pump’s inlet pipe must connect to the tank of water feed, according to the water tank form is shown below

Applications

The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.


As a 40 years manufacturing factory,we have many foreign customers who came to our factory to visit.
some of the photos as below:


Applications:
it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.


some foreign customers give us comments below:





FAQ

440V Electric Motor Drive Portable High Pressure Water Blaster 10000psi For Ship Cleaning

Q1. What about the lead time?
A: 20 working days for mass production.

Q2. Do you have any MOQ limit for the product order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
