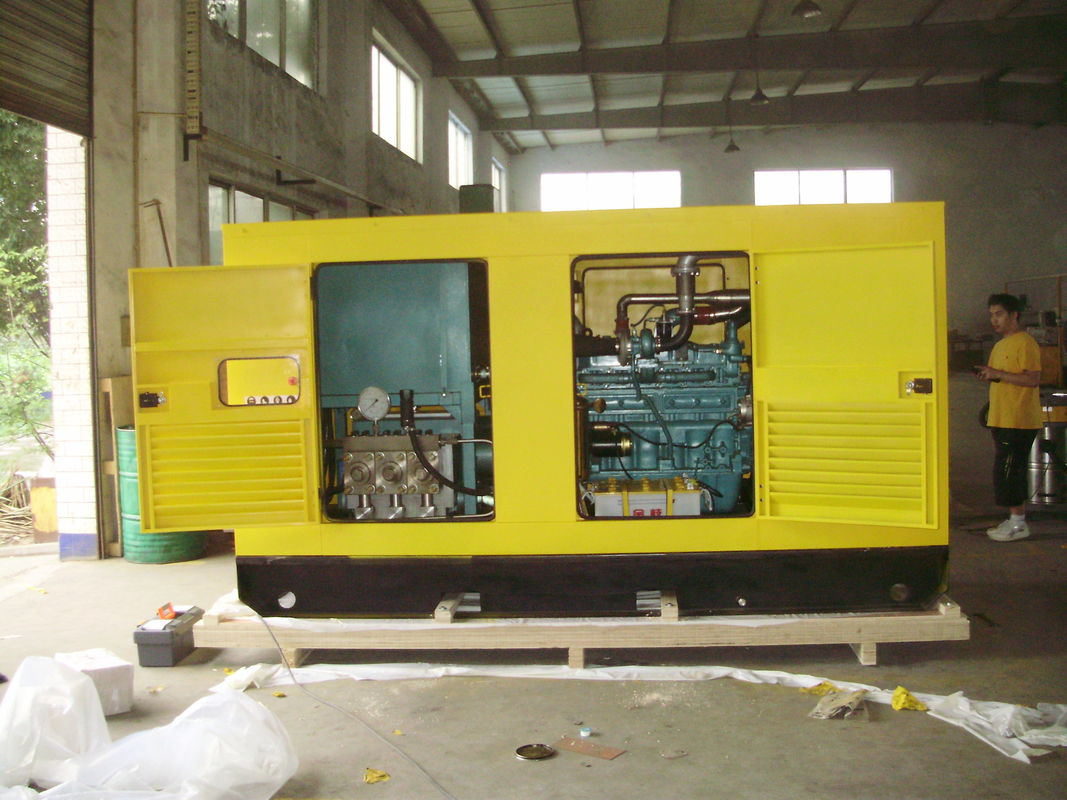

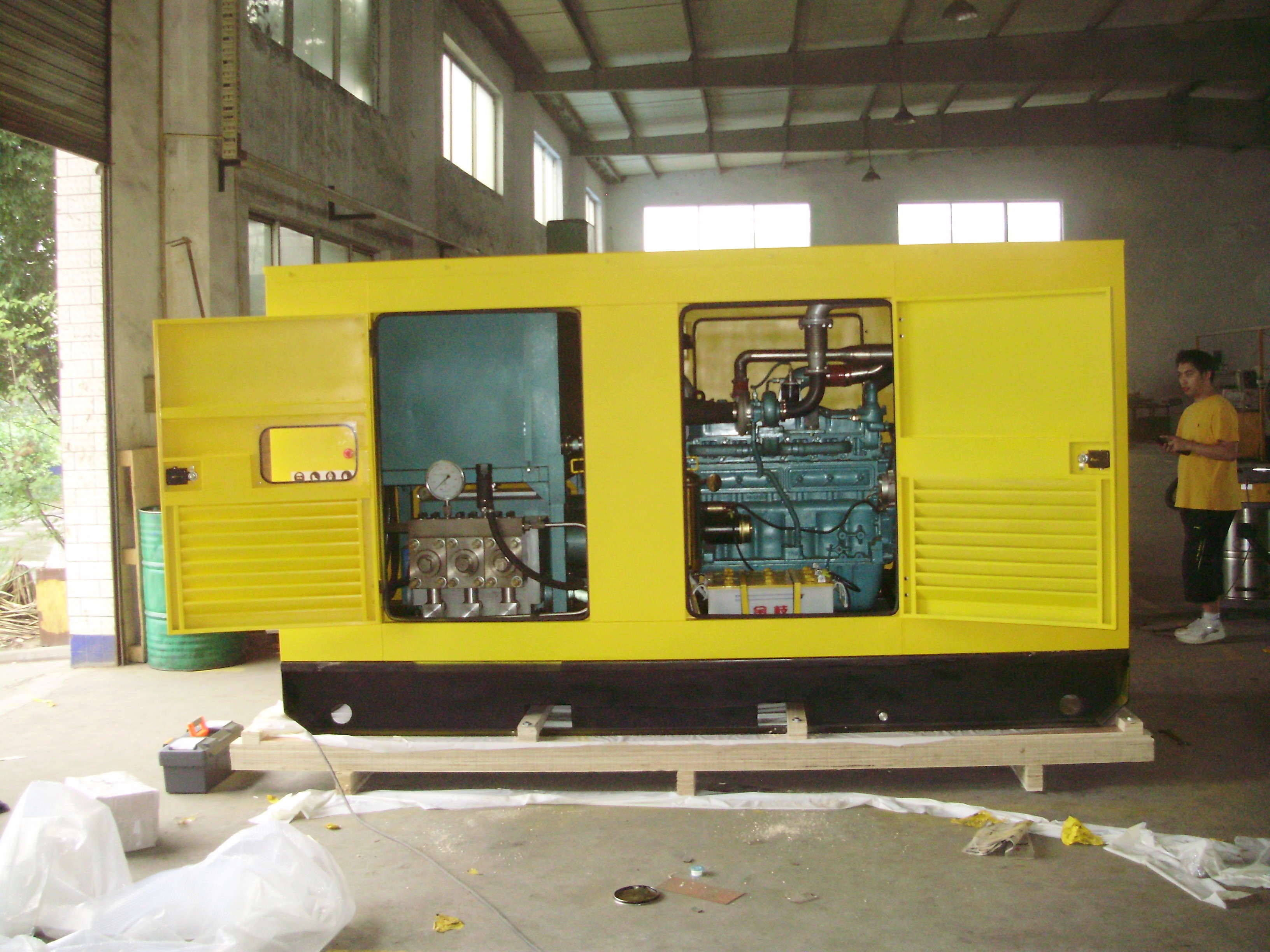

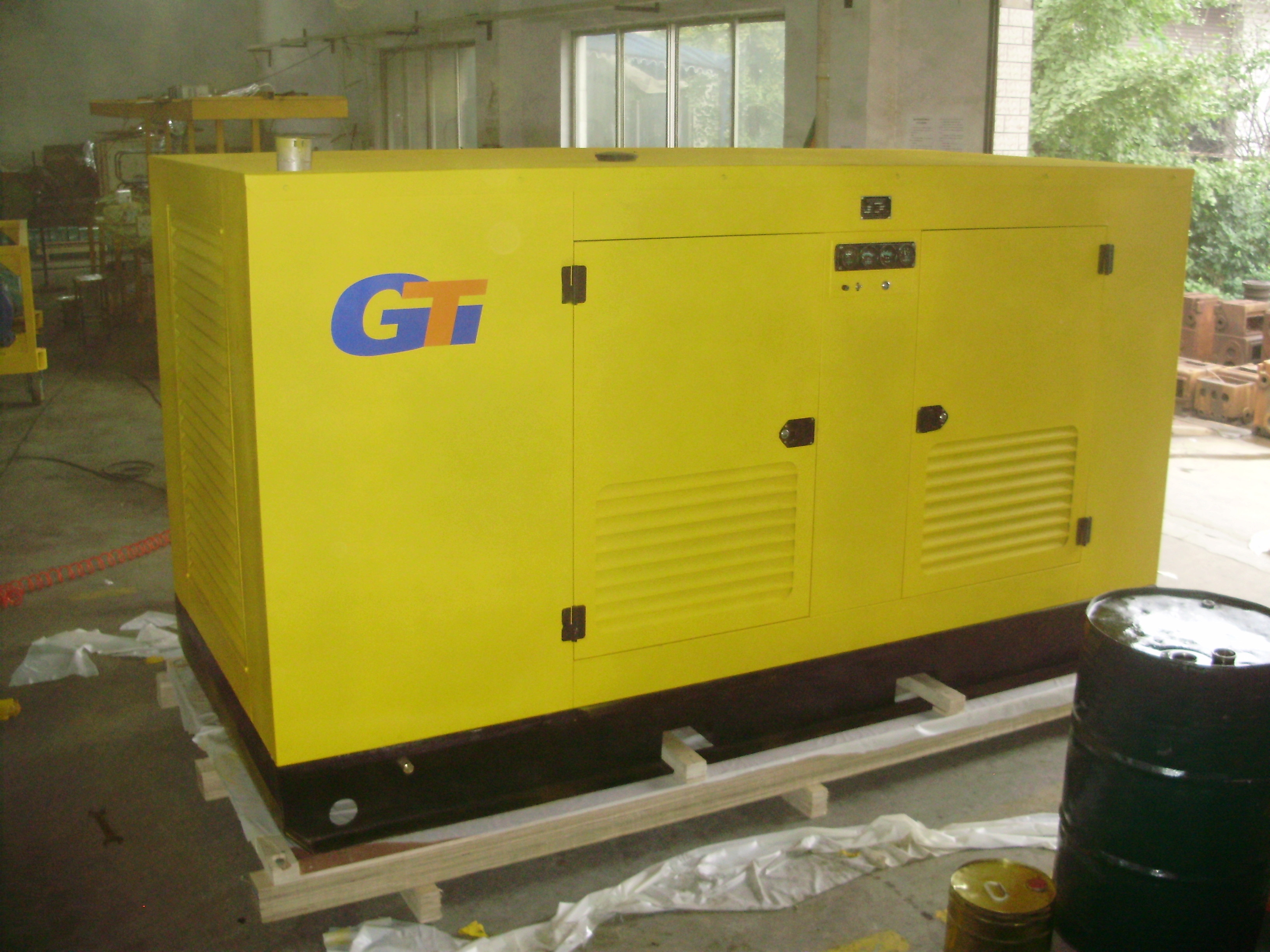

900bar Hydro Blasting Equipment Hydro Blaster For Oil Pipelines Cleaning

900bar Hydro Blasting Equipment Hydro Blaster For Oil Pipelines Cleaning

Welcome to use LIFENG brand high pressure triplex plunger pump,these series products are designed and manufactured by our compony according to the advanced technology,with the advantages are reasonable structure, stable performance, long life span, simple maintenance and so on. suitability for industrial clean,pressure testing,jet water into the oil field.

main feature:

• Designed for all-in-one transmission case and low speed, reasonable structure,high reliability,can satisfy the long term continuous operation!
• Compulsory lubrication system, effectively reduce power consumption and parts wearing!
• High strength overloaded design, ensure big load requirements.
• Plunger core automatic regulate device
• Independent high pressure cylinder,rate of the stoppage low,simple maintenance.
• Straight-line hydraulic end,avoided the stress concentration, greatly improved the high pressure cylinders.

Installation of the high pressure pump

High-pressure triplex plunger pump power input shaft must be with power output shaft center high equal, Connection mode is coupling.Power input power must be higher than the high pressure pump power rating,1450rpm, the rotary way must agree to the pump’s input end mark.

High pressure pump power input size as right shown, the input shaft coupling inside the area with the joint area should be more than 75%, The manufacturing precision of coupling should comply with the requirements, also should make dynamic balance test,In order to minimize the damage of high pressurepump vibration.

High pressure pump’s four fixing bolts should choose high strength grade which should be tightened when installation.

After the installation of the high pressure pump, turn the coupling with the hand, which should feel consistent, no resistance and squeak& rattle phenomenon.

Pump’s inlet pipe must connect to the tank of water feed, according to the water tank form is shown below.


Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

900bar Hydro Blasting Equipment Hydro Blaster For Oil Pipelines Cleaning

Characteristics as below:

GUARANTY OF QUALITY

We offer products of our own design and production and we guarantee it is high quality. A quality control of performed works is one of the main advantages of our Company. Important components of effective work: high qualification of our engineers, strict implementation of technical standards, application of quality materials, use of the most modern equipment and software.

Strict materials incoming (quality) control and acceptance tests

Laboratory and bench testing

100% compliance with technology, international standards

Application of the most modern high-tech QC tools

All manufactured equipment passes bench and field tests

International quality level

Positive feedbacks from our customers

It is extremely important for us that all our customers are 100% satisfied with the quality of our work!

INNOVATIVE AND TECHNOLOGY LEADER

Our mission is to continuously innovate, develop and offer the most efficient equipment for our customers.

Own design office

Technology Innovation Center

The of Companies employs more than 100 qualified and experienced engineers, designers and technicians

Own laboratory and test benches

Operative analysis and adjustment of design.

As a 40 years manufacturing factory,we have many foreign customers who came to our factory to visit.
some of the photos as below:


Applications:

Like :1.using in cleaning the Aluminium plant Hardened bauxite dust on mills, filters, floors, tanks, sumps and sewers. With preesure 350bar – 2800bar

2.Using to wash Aviation Expansion joints, grease, rubber and hydraulic fluids on runways. With pressure 690bar - 1400bar

3. Using to wash the Breweries Yeast, sediments and fermentation residues on vats, pipe and facilities. With pressure 200bar – 2800bar

4. Using to Cement plant Remove dirt, grease and product build up on grates, floor, external piping, bins, walls, hopper cars and

handling equipment. With pressure 200bar – 690bar

5. using to wash Chemical processing Chemicals from boiler tubes, tanks, valves. evaporators, heat exchangers, tube bundles, vessels,

reactors and storage tanks. With pressure 350bar – 2800bar

6. using to Construction Concrete demolishing, exposing steel-bars, cutting concrete and steel bars. With pressure 350bar – 2800bar

7.using to Distilleries Cleaning of heat exchanger, boiler tubes, vats and pipe lines. With pressure 600bar- 2800bar

8.using in washing the Food processing Grease, fats, oil and dough from ovens, mixers, conveyors and facilities. With pressure 200bar – 1000bar

9.using to clean the Foundries Removal of deposits, metal oxidation, ceramic & sand core materials for casting. With pressure 1000bar – 2800bar

10.using in Highway Maintenance Cleaning of grease, vegetation, mud tar, cement or asphalt on vehicles & machinery. Removal of

expansion joints, paint strips and concrete demolishing on road bridges. With pressure 350bar – 2800bar

11.using to clean the Marine & Offshore Removal of marine growth, barnacles, paint and rust on ships, deck, hull and ballast tanks. Oil platforms, storage tanks, boilers, cold cutting, underwater blasting, pipe cleaning, paint and rust. With the pressure 500bar – 2800bar

it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.
