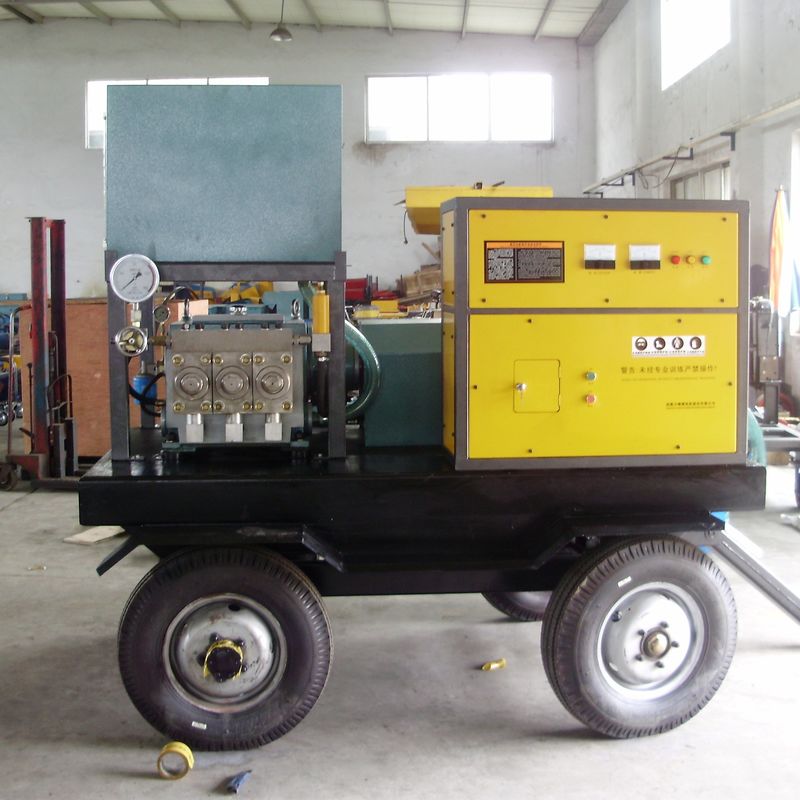

300bar High Pressure Water Blaster Hydro Blasting Machine For Rust Removal

300bar High Pressure Water Blaster Hydro Blasting Machine For Rust Removal

Welcome to use Lifeng series ultrahigh pressure industrial grade washer. Lifeng series developed by our company according to industrial cleaning situation and advanced technology is small in size ,compact in structure, stable in operation and reliable in quality. Meanwhile ,it has gained good fame for removing sand of castings ,and stripping various contaminants ,dirty sticking to the surfaces of objects in chemical plant, oil field ,refinery ,power plant ,sugar refinery ,steelworks and food factory etc.

main feature:

• Designed for all-in-one transmission case and low speed, reasonable structure,high reliability,can satisfy the long term continuous operation!
• Compulsory lubrication system, effectively reduce power consumption and parts wearing!
• High strength overloaded design, ensure big load requirements.
• Plunger core automatic regulate device
• Independent high pressure cylinder,rate of the stoppage low,simple maintenance.
• Straight-line hydraulic end,avoided the stress concentration, greatly improved the high pressure cylinders.

Fundamental structure and working principle

The machine is mainly composed by high pressure reciprocating pump, power plant and cleaning accessories.

1, high pressure reciprocating pump:

This kind of pump , as a horizontal triplex plunger pump , is driven by electric motor ,which can be divided into two parts: power end and fluid end.

• Power end

This part consist of belt pulley crankshaft, and connecting rod. Through the turning of belt and belt pulley, the electric motor decreases speed and drives the crankshaft to rotate. Then crank link mechanism transforms the rotation motion into straight reciprocating motion.

(2) Fluid end

This part consists of plunger suit, high-pressure cylinder, and pump body, inlet and outlet water valve. In high-pressure cylinder fixed on the case body, the connecting rod drives plunger to do reciprocating motion, which makes the internal volume of cylinder changed periodically. When in suction stroke, the internal capacity of the cylinder body swells, the water outlet valve closes and forms partial vacuum. Together with the effect of atmospheric pressure, actuating medium is forced into high-pressure cylinder from inlet valve. While in discharge stroke, the inlet water valve closes. Plunger piston squeezes the actuating medium from outlet water valve into pump body, and into pressure regulating valve, then through the high-pressure tube arrivals spray gun by whose resistance the high pressure water forms.


Details:

1. Power end crnkshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2. Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3. Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4. All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

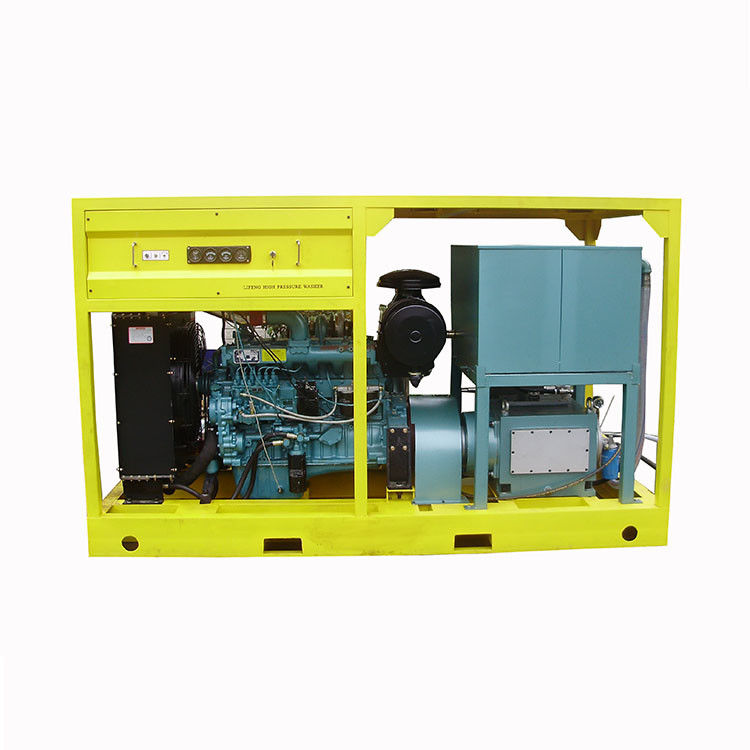

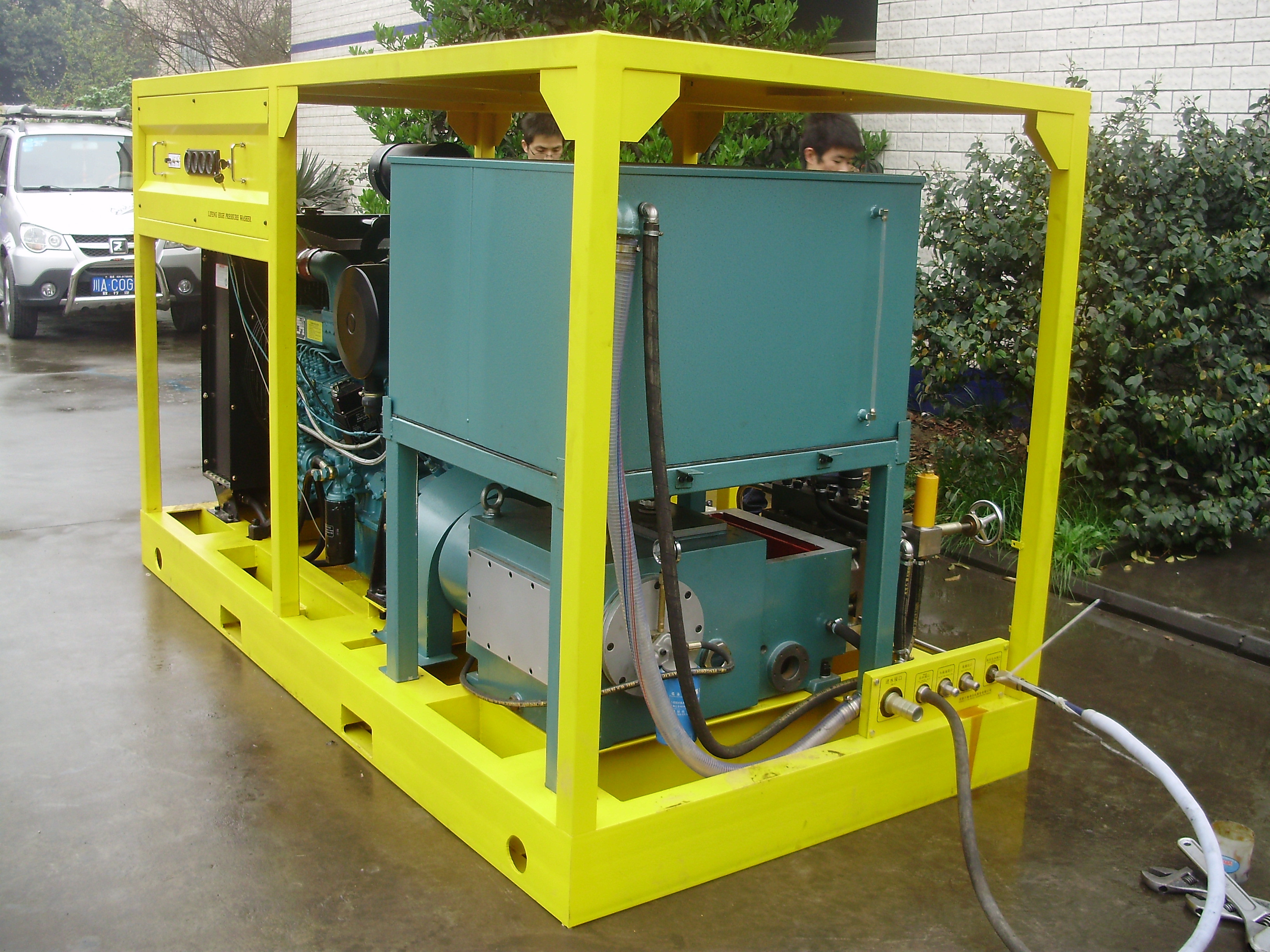

5. For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

300bar High Pressure Water Blaster Hydro Blasting Machine For Rust Removal

Characteristics as below:

GUARANTY OF QUALITY

We offer products of our own design and production and we guarantee it is high quality. A quality control of performed works is one of the main advantages of our Company. Important components of effective work: high qualification of our engineers, strict implementation of technical standards, application of quality materials, use of the most modern equipment and software.

Strict materials incoming (quality) control and acceptance tests

Laboratory and bench testing

100% compliance with technology, international standards

Application of the most modern high-tech QC tools

All manufactured equipment passes bench and field tests

International quality level

Positive feedbacks from our customers

It is extremely important for us that all our customers are 100% satisfied with the quality of our work!

INNOVATIVE AND TECHNOLOGY LEADER

Our mission is to continuously innovate, develop and offer the most efficient equipment for our customers.

Own design office

Technology Innovation Center

The of Companies employs more than 100 qualified and experienced engineers, designers and technicians

Own laboratory and test benches

Operative analysis and adjustment of design.

As a 40 years manufacturing factory,we have many foreign customers who came to our factory to visit.
some of the photos as below:


Applications:

1.using in cleaning the Aluminium plant Hardened bauxite dust on mills, filters, floors, tanks, sumps and sewers. With preesure 350bar – 2800bar

2.Using to wash Aviation Expansion joints, grease, rubber and hydraulic fluids on runways. With pressure 690bar - 1400bar

3. Using to wash the Breweries Yeast, sediments and fermentation residues on vats, pipe and facilities. With pressure 200bar – 2800bar

4. Using to Cement plant Remove dirt, grease and product build up on grates, floor, external piping, bins, walls, hopper cars and

handling equipment. With pressure 200bar – 690bar

5. using to wash Chemical processing Chemicals from boiler tubes, tanks, valves. evaporators, heat exchangers, tube bundles, vessels,

reactors and storage tanks. With pressure 350bar – 2800bar

6. using to Construction Concrete demolishing, exposing steel-bars, cutting concrete and steel bars. With pressure 350bar – 2800bar

7.using to Distilleries Cleaning of heat exchanger, boiler tubes, vats and pipe lines. With pressure 600bar- 2800bar

8.using in washing the Food processing Grease, fats, oil and dough from ovens, mixers, conveyors and facilities. With pressure 200bar – 1000bar

9.using to clean the Foundries Removal of deposits, metal oxidation, ceramic & sand core materials for casting. With pressure 1000bar – 2800bar

10.using in Highway Maintenance Cleaning of grease, vegetation, mud tar, cement or asphalt on vehicles & machinery. Removal of

expansion joints, paint strips and concrete demolishing on road bridges. With pressure 350bar – 2800bar

11.using to clean the Marine & Offshore Removal of marine growth, barnacles, paint and rust on ships, deck, hull and ballast tanks. Oil platforms, storage tanks, boilers, cold cutting, underwater blasting, pipe cleaning, paint and rust. With the pressure 500bar – 2800bar

it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.


some foreign customers give us comments below:





FAQ

300bar High Pressure Water Blaster Hydro Blasting Machine For Rust Removal

Q1. What about the lead time?
A: 20 working days for mass production.

Q2. Do you have any MOQ limit for the product order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
