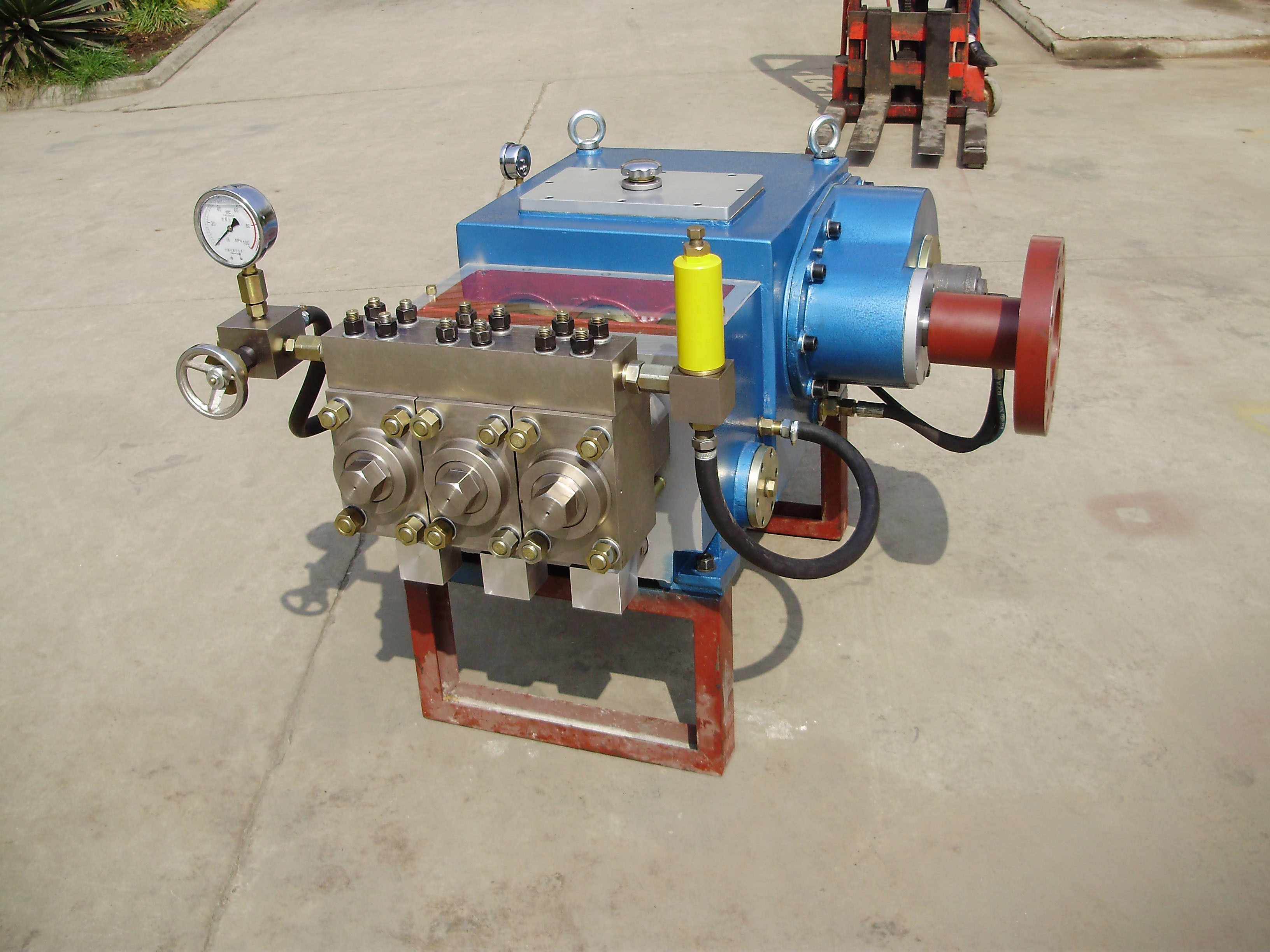

Ship Cleaning High Pressure Triplex Plunger Pump 1500 Bar Hydro Blaster Pump
Welcome to use LIFENG brand high pressure triplex plunger pump,these series products are designed and manufactured by our compony according to the advanced technology,with the advantages are reasonable structure, stable performance, long life span, simple maintenance and so on. suitability for industrial clean,pressure testing,jet water into the oil field.
Details:
1. Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2. Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3. Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4. All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5. For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
1500bar high pressure bare shaft pump triplex plungers pump
Characteristics as below:
| Tech Date | ||
| Model | LF-50/150 | |
| Max. working pressure | 1500bar | |
| Rated water flow | 50L/min | |
| Pump RPM | 500 | |
| Input power | 132kw | |
| Diesel engine or electric motor power | 132kw | |
| Engine RPM | 1500 | |
| Net Weight | 1000KGS | |
| Dimension | 1200*800*1000mm | |
| package | Wooden box | |
This pump is the horizontal single-acting triplex plunger pump, components are dynamic end, hydraulic end, pressure regulating valve,and relief valve!
(1).The dynamic end (attached picture by the following)componented by the pulley, crankshaft, connecting bar , etc. dynamic power produced by the belt and driving pulley and also decrease the speed.driving the crankshaft rotary,and the connecting bar makes the rotary be direct!
(2)The hydraulic end (attached picture by the following)componented by the plungers,cylinders,pump body,water inlet and outlet valves,etc.the cylinders are fixed on the crank,the connecting bar drive the plunger do reciprocating movement in the cylinder which makes the content of cylinders periodic change.when the plungers are the sucking stroke,the the content of cylinders enlarge,and the water outlet valves close,forming a vacuum,the medium comes into the cylinders upon the pressure of the air;when the plungers are the eduction stroke,the water inlet valves close,the plungers make the medium go into the pump body through the water outlet valves,and then go into the pressure regulate valve,and last comes out from the high pressure hose!
(3)The relief valve (attached picture by the following) Relief valve is high-pressure pump of protection device, when the nozzle blocking, relief valve open, high pressure water flow, protecting the machine was not damaged by the over pressure. the customers do not touch that!
(4)The pressure regulating valve (attached picture by the following)the pressure regulating valve is used to adjust the outlet pressure and keep the system pressure.when the handwheel clockwise rotation pressure-regulating valve core, with the gap seat decreasing, overflowing decreases, machine pressure increases. When the handwheel counterclockwise, flow capacity increase and the pressure drops!
Should tight the lock nut when your required pressure reach!
Do not operate the machine when the pressure is over!
Do not operate the machine when the high pressure hose and high pressure gun leak water!
.
With 4 screws (8.8level) to fix the pump foot,and the bottom should be smooth, high-pressure pump power input shaft must be with power output shaft center high equal, Connection mode is coupling.this high pressure pump rate speed is 750rpm,please according to the output rpm of the motor to use the right diameter pulley!
Applications:
it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.
FAQ
1500bar high pressure bare shaft pump triplex plungers pump
:
Q1. What about the lead time?
A: 20 working days for mass production.
Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Our products are sold all over the world, you can rest assured.
