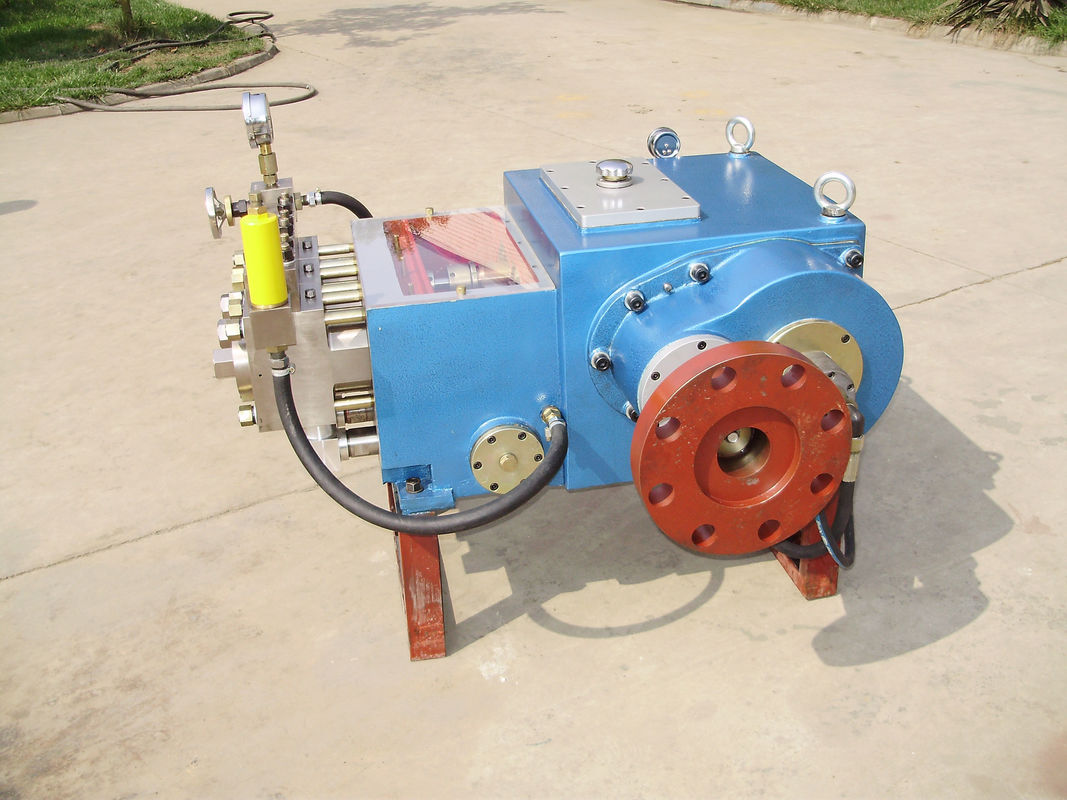

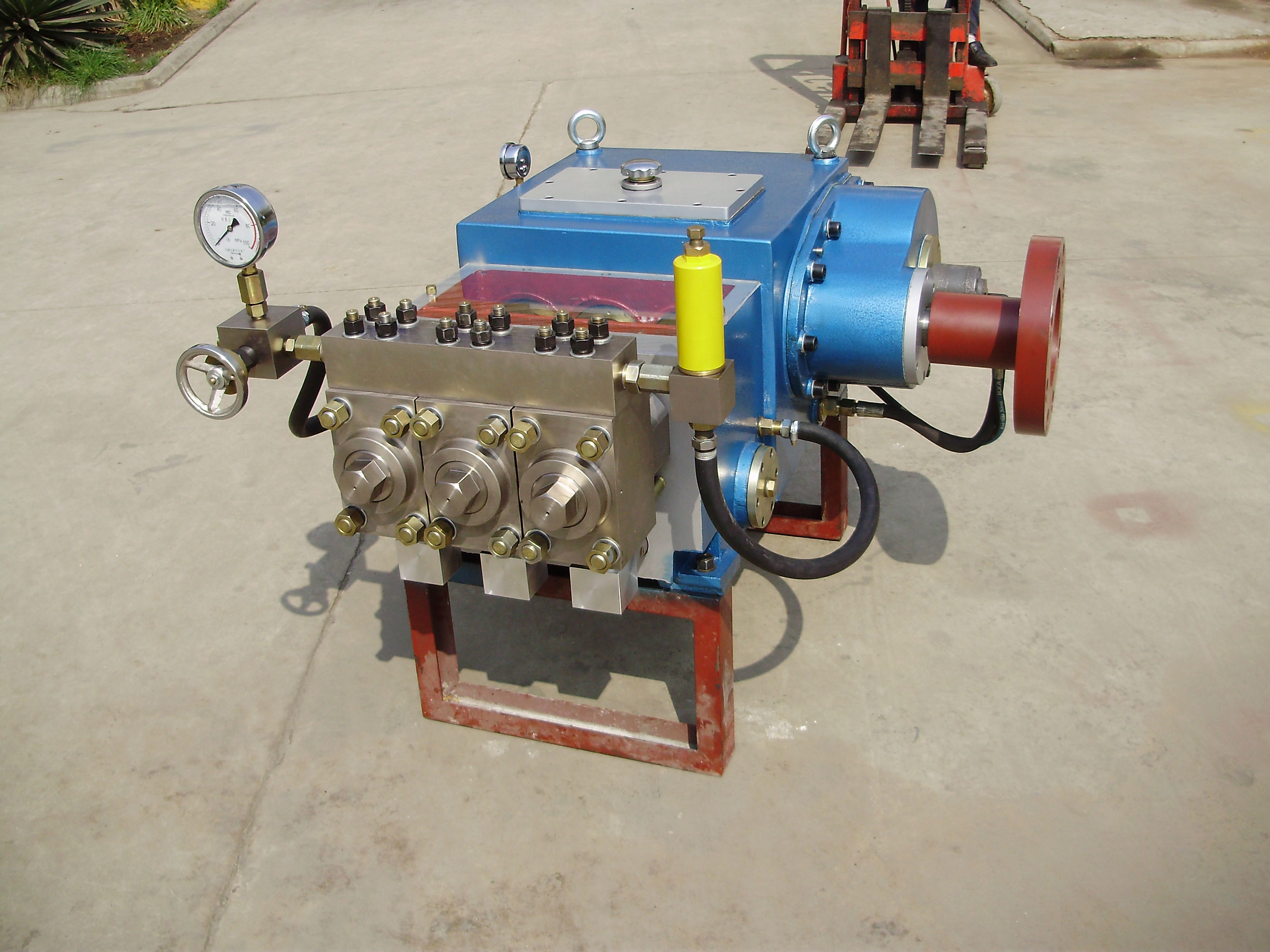

75kw 300bar Cold Water Pressure Jet Washer Industry Ultra Washer High Pressure Plunger Pump Bare Shaft Pump
Details:
1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,you can make it driven by the diesel engine or the gasoline engine.
Applications:
It is widely used in ship cleaning,oil removing, fuel pipeline cleaning in refinery fields.
75kw 300bar Cold Water Pressure Jet Washer Industry Ultra Washer High Pressure Plunger Pump Bare Shaft Pump
Characteristics as below:
| MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE |
| Bar | L/min | KW | mm | mm | |
| LF-256/15 | 150 | 256 | 75 | 55 | 70 |
| LF-195/20 | 200 | 195 | 75 | 48 | 70 |
| LF-164/24 | 240 | 164 | 75 | 44 | 70 |
| LF-135/30 | 300 | 135 | 75 | 40 | 70 |
| LF-110/35 | 350 | 110 | 75 | 36 | 70 |
| LF-98/40 | 400 | 98 | 75 | 34 | 70 |
| LF-87/45 | 450 | 87 | 75 | 32 | 70 |
| LF-76/50 | 500 | 76 | 75 | 30 | 70 |
| LF-66/60 | 600 | 66 | 75 | 28 | 70 |
| LF-57/70 | 700 | 57 | 75 | 26 | 70 |
| LF-50/80 | 800 | 50 | 75 | 24 | 70 |
| LF-40/95 | 950 | 40 | 75 | 22 | 70 |
| LF-34/115 | 1150 | 34 | 75 | 20 | 70 |
High-pressure pump power input shaft must be with power output shaft center high equal, Connection mode is coupling.Power input power must be higher than the high pressure pump power rating,1450rpm, the rotary way must agree to the pump’s input end mark.
High pressure pump power input size as right shown, the input shaft coupling inside the area with the joint area should be more than 75%, The manufacturing precision of coupling should comply with the requirements, also should make dynamic balance test,In order to minimize the damage of high pressurepump vibration.
High pressure pump’s four fixing bolts should choose high strength grade which should be tightened when installation.
After the installation of the high pressure pump, turn the coupling with the hand, which should feel consistent, no resistance and squeak& rattle phenomenon.
Pump’s inlet pipe must connect to the tank of water feed, according to the water tank form is shown below.
FAQ
75kw 300bar Cold Water Pressure Jet Washer Industry Ultra Washer High Pressure Plunger Pump Bare Shaft Pump
Q1. What about the lead time?
A: 20 working days for mass production.
Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
