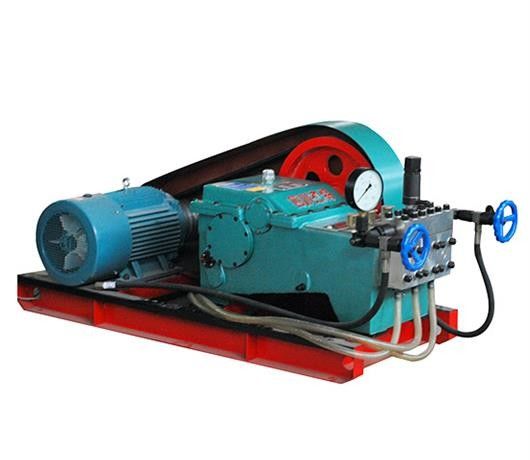

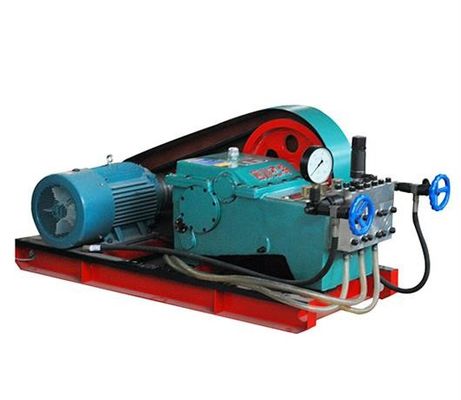

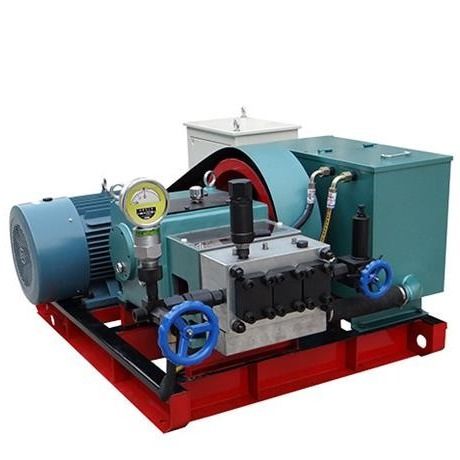

UHP High Pressure Water Jet Pumps UHP Water Blasting Rust Paint Remove
Details:
1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy housing.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
Features:
1. High pressure triple plunger pump ( Reciprocating plunger pump, Easy maintenance pump head )
Pressure: 500bar to 1500bar
Water flow: 40 LPM to 80 LPM

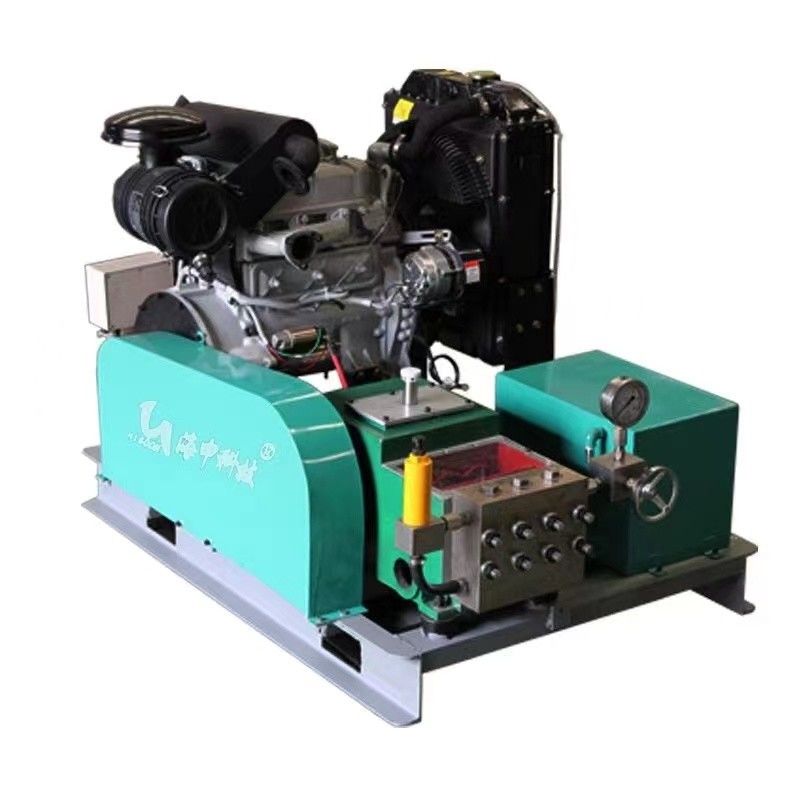

2. Engine: diesel engine or Electric motor drive. customer can choose the one they prefer
3. Pressure regulating valve: 0~ 1500bar. easy to be adjustable.
4. Safety valve: High pressure Rupture Disc valve
UHP High Pressure Water Jet Pumps UHP Water Blasting Rust Paint Remove
Characteristics as below:
| MODEL |
PRESSURE |
WATER FLOW |
POWER |
Plunger Diameter |
STROKE |
| |
Bar |
L/min |
KW |
mm |
mm |
| LF-35/24 |
LF |
35 |
15 |
26 |
46 |
| LF-30/28 |
280 |
30 |
15 |
24 |
46 |
| LF-25/32 |
320 |
25 |
15 |
22 |
46 |
| LF-20/40 |
400 |
20 |
15 |
20 |
46 |
| LF-16/50 |
500 |
16 |
15 |
18 |
46 |
| LF-13/63 |
630 |
13 |
15 |
16 |
46 |
| LF-10/70 |
700 |
10 |
15 |
14 |
46 |
| LF-35/32 |
320 |
35 |
22 |
26 |
46 |
| LF-20/50 |
500 |
20 |
22 |
20 |
46 |
| LF-13/80 |
800 |
13 |
22 |
16 |
46 |
| LF-13/100 |
1000 |
13 |
30 |
16 |
46 |
As a 40 years old manufacturing factory,we have many customers from all over the world,
the below are some of our customers photos who came to our factory:
Applications:
it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.
Foreign cusomers give us comments:
FAQ
UHP High Pressure Water Jet Pumps UHP Water Blasting Rust Paint Remove
Q1. Are you a manufacturing factory or the trading company?
A: we are a 40 years manufacturing factory.
Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
