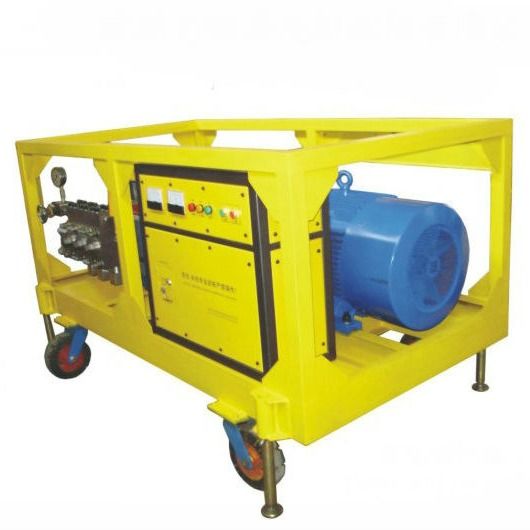

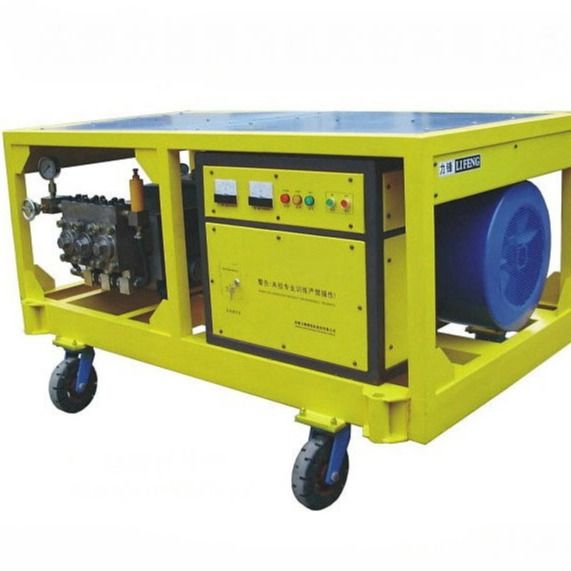

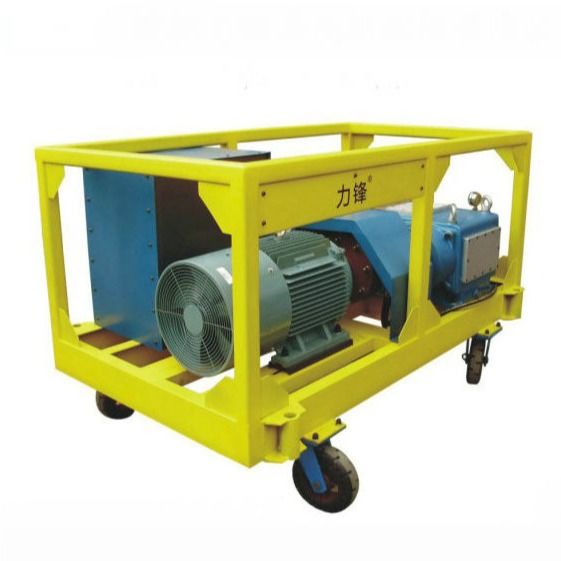

55kw High Pressure Jetting Pump Hydro Blasting Water Jet Cleaning Machine Hydro Washing Blasting Equipment
Details:
1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

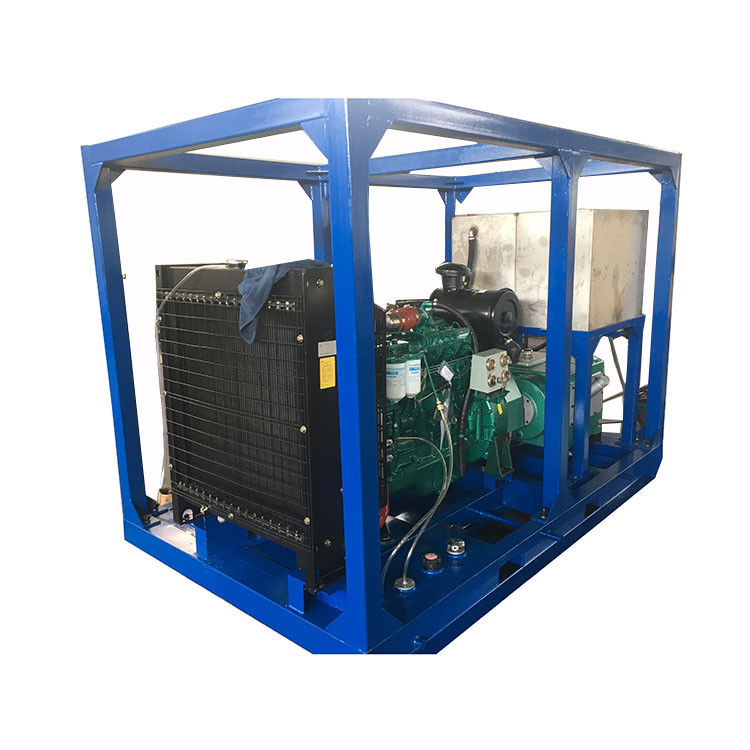

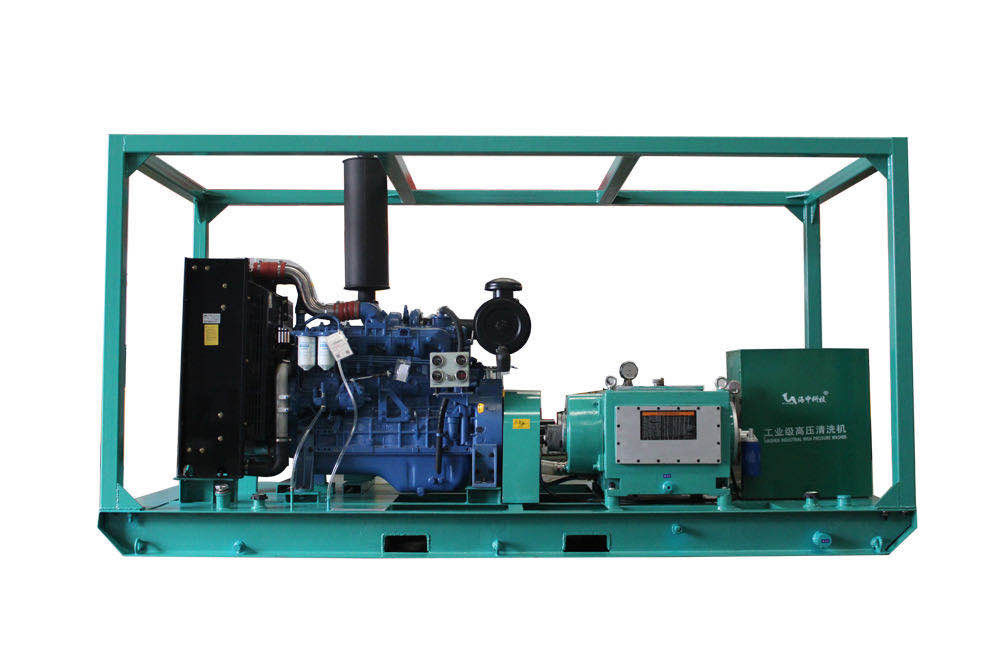

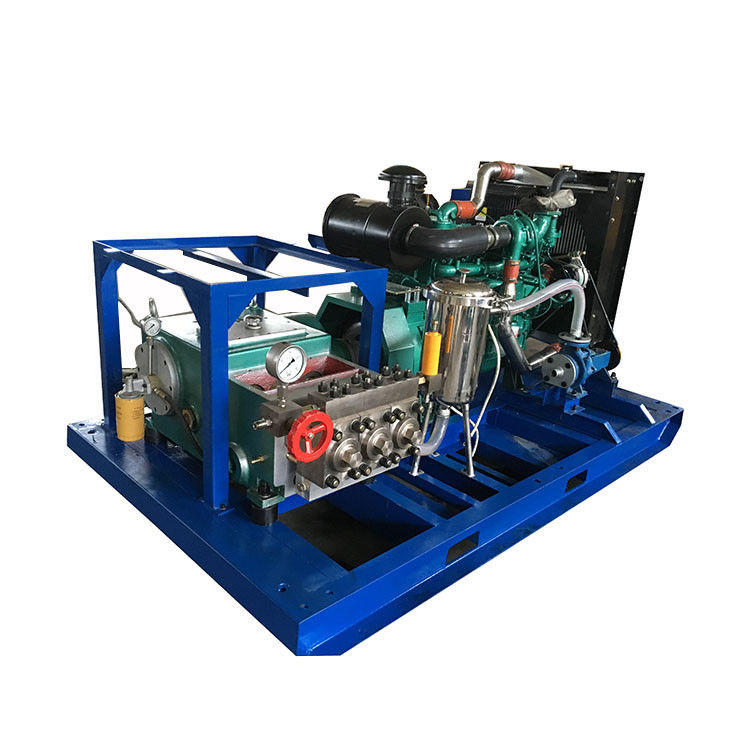

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
55kw High Pressure Jetting Pump Hydro Blasting Water Jet Cleaning Machine Hydro Washing Blasting Equipment
Characteristics as below:
| MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE |
| Bar | L/min | KW | mm | mm | |
| LF-128/12 | 120 | 128 | 30 | 40 | 66 |
| LF-92/18 | 180 | 92 | 30 | 34 | 66 |
| LF-72/22 | 220 | 72 | 30 | 30 | 66 |
| LF-62/25 | 250 | 62 | 30 | 28 | 66 |
| LF-54/30 | 300 | 54 | 30 | 26 | 66 |
| LF-46/33 | 330 | 46 | 30 | 24 | 66 |
| LF-38/40 | 400 | 38 | 30 | 22 | 66 |
| LF-32/50 | 500 | 32 | 30 | 20 | 66 |
| LF-26/60 | 600 | 26 | 30 | 18 | 66 |
| LF-128/22 | 220 | 128 | 55 | 40 | 66 |
| LF-92/31.5 | 315 | 92 | 55 | 34 | 66 |
| LF-72/40 | 400 | 72 | 55 | 30 | 66 |
| LF-62/45 | 450 | 62 | 55 | 28 | 66 |
| LF-54/52 | 520 | 54 | 55 | 26 | 66 |
| LF-46/63 | 630 | 46 | 55 | 24 | 66 |
| LF-38/75 | 750 | 38 | 55 | 22 | 66 |
| LF-32/85 | 850 | 32 | 55 | 20 | 66 |
| LF-26/110 | 1100 | 26 | 55 | 18 | 66 |
Diesel Industrial High Pressure Washers High Pressure Washing Machine For Pipelines Cleaning. This equipment needs to use a backflush nozzle to go inside to the pipes.the nozzles should be smaller than the heat exchangers pipes.
when start the high pressure cleaning machine,the backflush nozzles can go into the pipes itself by the water jet push power.
then the nozzles water jet can clean the inside of the pipes.
As a 40 years manufacturing factory,we have many foreign customers who came to our factory to visit.
some of the photos as below:
Applications:
it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.
some foreign customers give us comments below:
FAQ
55kw High Pressure Jetting Pump Hydro Blasting Water Jet Cleaning Machine Hydro Washing Blasting Equipment
Q1. What about the lead time?
A: 20 working days for mass production.
Q2. Do you have any MOQ limit for the product order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Our products are sold all over the world, you can rest assured.
