132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine

132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine

  • High Light

    industrial diesel pressure washer 1000bar 132kw

    ,

    1000bar 132kw industrial diesel pressure washer

    ,

    132kw 1000bar diesel pressure washer

  • Product Name
    132kw Diesel Pressure Washer 1000bar
  • Water Flow
    56L/min
  • Max.pressure
    1000bar
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Fuel
    Diesel Engine Drive Or Electric Motor Drive
  • Machine Type
    High Pressure Cleaning
  • Power(w)
    132kw
  • Material
    Pump Head Is Made By The Hard Alloy Steel
  • Place of Origin
    China
  • Brand Name
    LIFENG
  • Certification
    ISO9001:2015
  • Model Number
    LF-56/100
  • Minimum Order Quantity
    1 unit
  • Price
    30000-40000 USD
  • Packaging Details
    Packed by wooden box
  • Delivery Time
    35 working days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    110 units per month

132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine

132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine

Company infomation:

As a 40 years manufacturing factory,we can supply high quality products to all over the world customers.
we can supply the 195L/Min Trailer Industrial High Pressure Washers For Ship Cleaning High Pressure Washing Machine,
from the pressure 100bar to 2800bar,and the water fflow from 10L/min to 400L/min,
with diesel engine drive or the electric motor drive or the gasoline engine drive,you can choose.





Characteristics as below:





Tech Date
Model LF-56/100
Max. working pressure 1000bar
Rated water flow 56L/min
Pump RPM 500
Input power 132kw
Diesel engine or electric motor power 132kw
Engine RPM 1500
Net Weight 1800KGS
Dimension 1900*1000*1200mm
package Wooden box



Catalogue of  132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine
:

MODEL PRESSURE WATER FLOW POWER Plunger Diameter STROKE
  Bar L/min KW mm mm

LF-400/14 140 400 110 70 70
LF-317/18 180 317 110 62 70
LF-250/23 230 250 110 55 70
LF-220/25 250 220 110 52 70
LF-190/30 300 190 110 48 70
LF-160/36 360 160 110 44 70
LF-132/42 420 132 110 40 70
LF-120/46 460 120 110 38 70
LF-107/52 520 107 110 36 70
LF-95/60 600 95 110 34 70
LF-74/75 750 74 110 30 70
LF-65/88 880 65 110 28 70
LF-56/100 1000 56 110 26 70
LF-48/120 1200 48 110 24 70
LF-40/150 1500 40 110 22 70



Product Description

Industrial high pressure water blaster is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.



Features

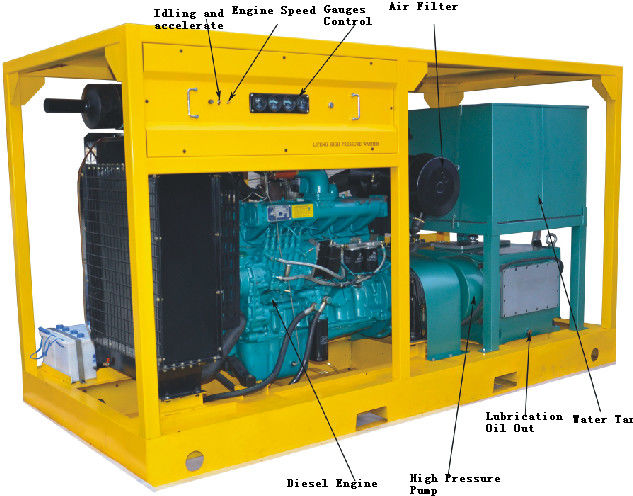

  • This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



    1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



  • Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
  • Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.


Applications


The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

 132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine 0132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine 1

Diesel Industrial High Pressure Washers High Pressure Washing Machine For Pipelines Cleaning,This equipment needs to use a backflush nozzle to go inside to the pipes.the nozzles should be smaller than the heat exchangers pipes.

when start the high pressure cleaning machine,the backflush nozzles can go into the pipes itself by the water jet push power.

then the nozzles water jet can clean the inside of the pipes.




As a 40 years manufacturing factory,we have many years all come from all over the world,the below are some of our customers,they are from Australia and so on......

132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine 2
132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine 3132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine 4

Applications:

it is widely used in ship cleaning,rust removing,concrete removing ,fuel pipeline cleaning in refinery fields,oil tank clean,all kinds of the heat exchangers pipes clean,cment plant kiln,for the papaer making factory which is cleaning the dirty paper pulp......

132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine 5132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine 6


FAQ


132kw Diesel Pressure Washer 1000bar Industrial Water Blasting Machine


Q1. What is your product brand name?
A: We have our own name which is famous in China and famous in Asia.


Q2.are you a factory or a trading company?
A: we are a 40 years old manufacturing factory which located in Chengdu ,China.

Q3. How do you ship the goods ?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products
.
