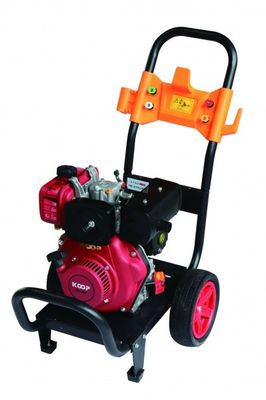

1.1KW -7.5KW Motorized Hydro Test Pump Pipeline Hydro Testing Equipment Trolley Type

1.1KW -7.5KW Electric Motor Drive Hydro Testing Pump Pipeline Hydraulic Test Equipment

Details:

Our industry manufacture 1.1-7.5KW series high pressure washer and test pump. This serie is a replacement of the current electric high pressure washer and test pump with two or four cylinder. Our products are widely used around the world not just because the merit of small volume, compact structure, stable operation, complete function, high flow, strong compatibility, and high efficiency, but also because it is safe and reliable in use and simple in operation.

1.1KW -7.5KW Electric Motor Drive Hydro Testing Pump Pipeline Hydraulic Test Equipment

Characteristics as below:

Product Description

This machine is mainly composed by high pressure reciprocating pump, overflow valve (the machine have no overflow valve when it’s pressure above 40MPa), pressure relief valve, high pressure hose and so on.

Features

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

Applications


The pumps are widely used in oil refinery pipes cleaning, heat exchangers pipes cleaning, ship hull cleaing,oil paitings removing,rust removing,etc.
Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

7.5kw Electric hydro test pump manufacturers hydraulic testing pumps are working at foreign customers site:

From customers comments who is using the product 1.1KW -7.5KW Electric Motor Drive Hydro Testing Pump Pipeline Hydraulic Test Equipment:

the machines are testing the pipes pressure.

FAQ

1.1KW -7.5KW Electric Motor Drive Hydro Testing Pump Pipeline Hydraulic Test Equipment

Q1. What about the lead time?

A: 20 working days for mass production.

Q2. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by  sea shipping.

Q4. How to proceed an order for the product?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly:we sign a contract

Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.
