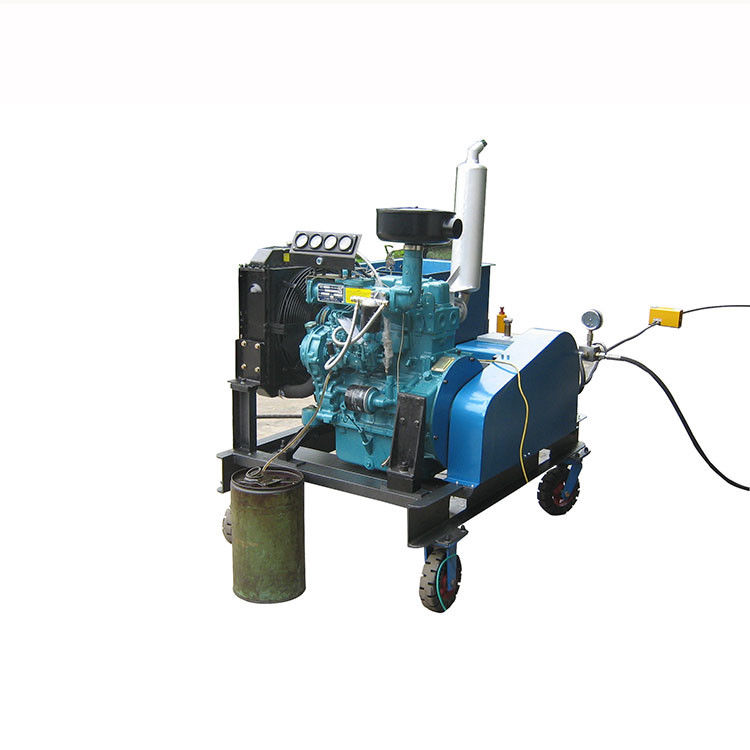

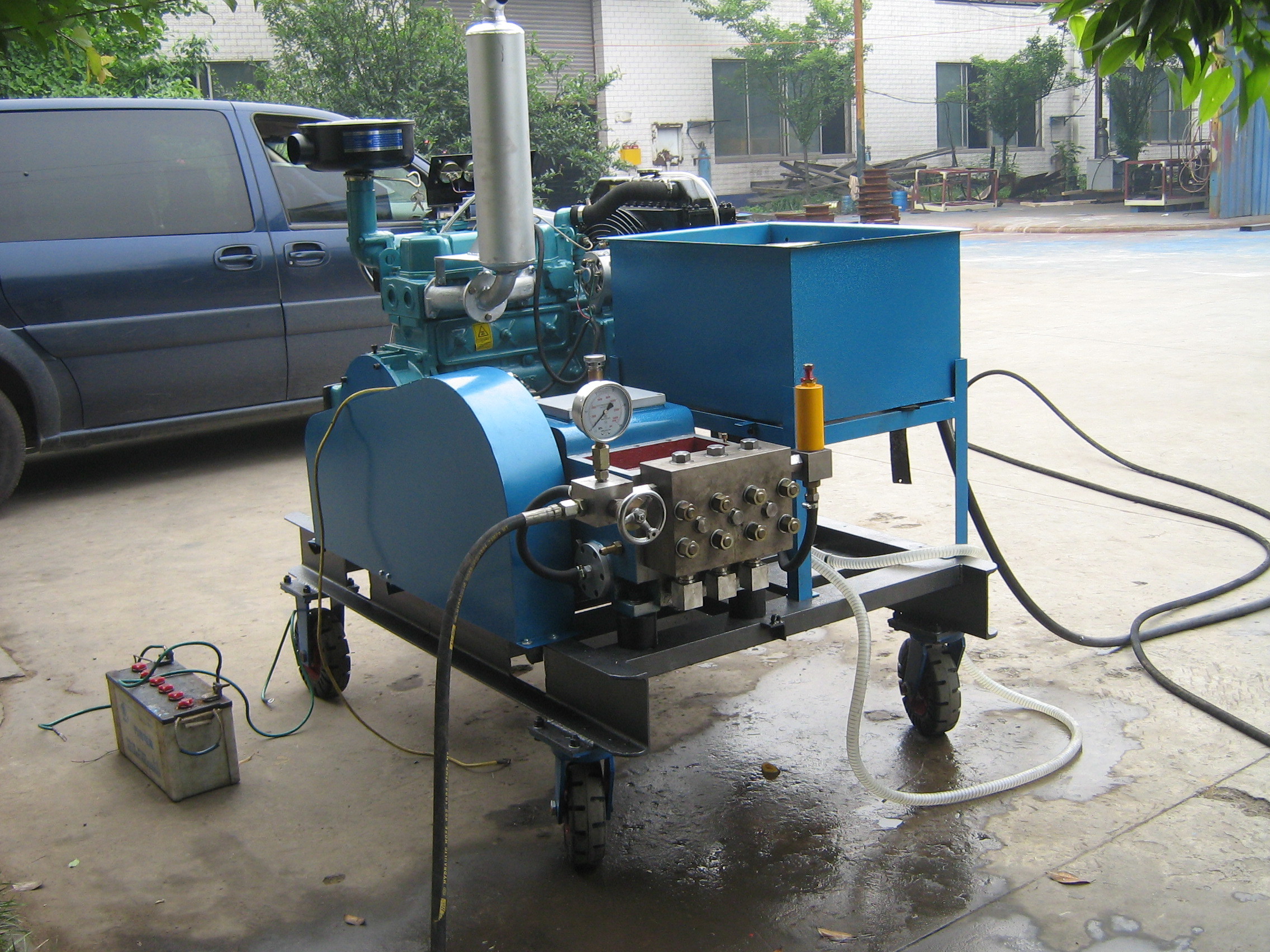

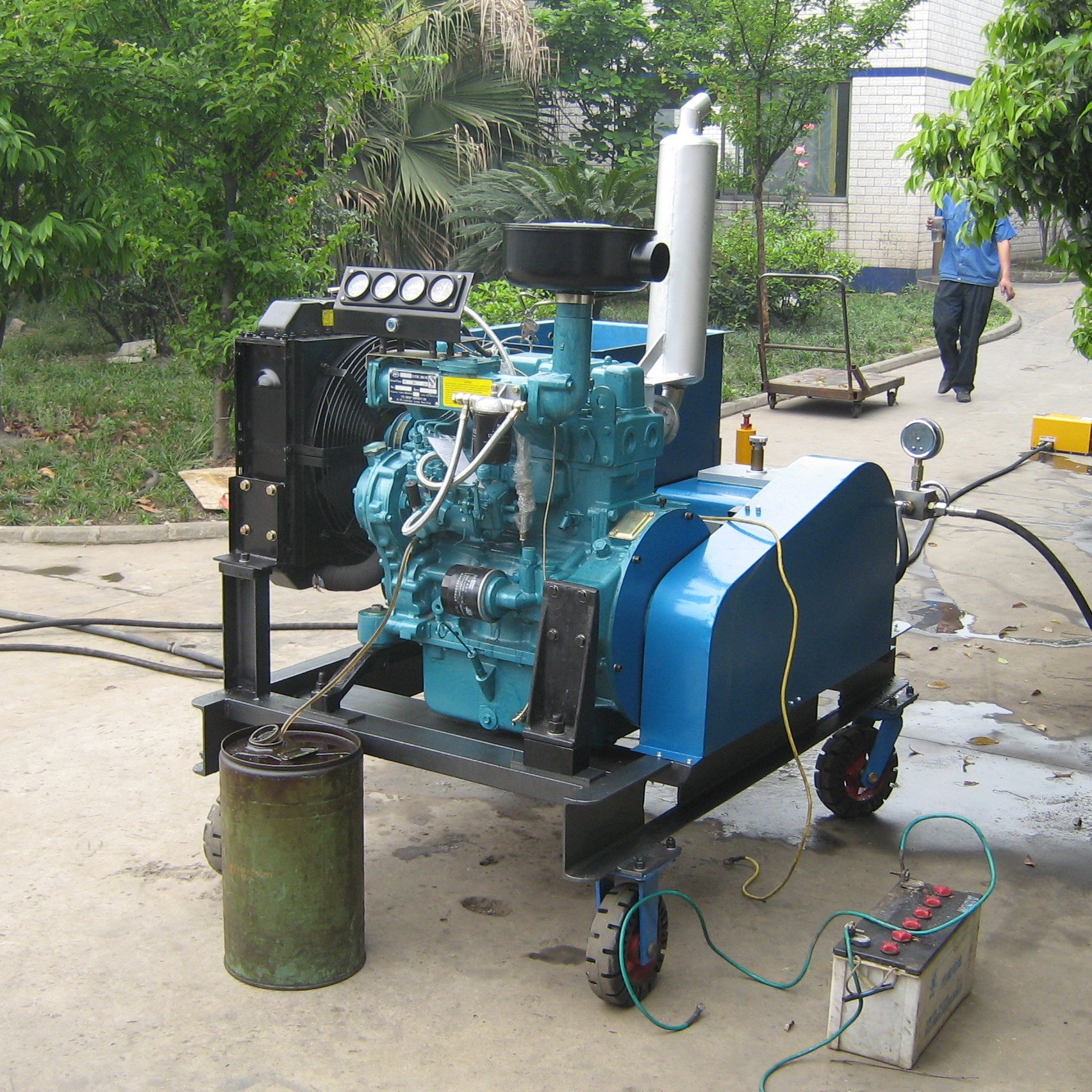

Ship Use Hydraulic Pressure Test Pump Hydro Test Pump 400bar Diesel Engine
Details:
1. Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy and more stable.
2. Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3. Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4. All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5. For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
6. It is for industrial cleaning or removing.it is heavy duty.
7. It is easy to fix once the wearing parts are broken
8. The cylinders use the new technology,it avoided the cylinders broken problems.
9. we can make according to customers request of the engine.
10. We can supply the pressure datas print out system.
11. we can supply the trailer type with 4 wheels on the bottom.
12. 40 years manufacturing experience of making such kind of the test pumps.
Ship Use Hydraulic Pressure Test Pump Hydro Test Pump 400bar Diesel Engine
Characteristics as below:
Product Description
The high pressure pumps have two kinds of the usage,one is for the high pressure cleaning purpose,and another is for pressure testing purpose.Hydro Test Pump is an equipment which is used to test the pressure of objects,the machine with high pressure water jet by means of a power device. It can jet high pressure water jet into the objects like the pipes,valves ,let the objects full of high pressure water jet.to see if the objects water leakage or not when the hydro test pump reach a pressure datas.this pump install a stop checking valve,ti can stop the high pressure water jet comes back into the pump.so the pressure can show on the pressure gauge.the pressure test purpose can reach.
GUARANTY OF QUALITY
We offer products of our own design and production and we guarantee it is high quality. A quality control of performed works is one of the main advantages of our Company. Important components of effective work: high qualification of our engineers, strict implementation of technical standards, application of quality materials, use of the most modern equipment and software.
Strict materials incoming (quality) control and acceptance tests
Laboratory and bench testing
100% compliance with technology, international standards
Application of the most modern high-tech QC tools
All manufactured equipment passes bench and field tests
International quality level
Positive feedbacks from our customers
It is extremely important for us that all our customers are 100% satisfied with the quality of our work!
INNOVATIVE AND TECHNOLOGY LEADER
Our mission is to continuously innovate, develop and offer the most efficient equipment for our customers.
Own design office
Technology Innovation Center
The of Companies employs more than 100 qualified and experienced engineers, designers and technicians
Own laboratory and test benches
Operative analysis and adjustment of design.
High-pressure pump power input shaft must be with power output shaft center high equal, Connection mode is coupling.Power input power must be higher than the high pressure pump power rating,1450rpm, the rotary way must agree to the pump’s input end mark.
High pressure pump power input size as right shown, the input shaft coupling inside the area with the joint area should be more than 75%, The manufacturing precision of coupling should comply with the requirements, also should make dynamic balance test,In order to minimize the damage of high pressurepump vibration.
High pressure pump’s four fixing bolts should choose high strength grade which should be tightened when installation.
After the installation of the high pressure pump, turn the coupling with the hand, which should feel consistent, no resistance and squeak& rattle phenomenon.
Pressure Testing Pump For Oil Well Safety Valves are working at foreign customers site:
From customers comments who is using the product Electric Hydro Test Pump For Safety Valves Pressure Test Hydrostatic Pressure Testing Equipment:
the machines are testing the pipes pressure.
Packings as below :
FAQ
Explosion Proof Electric Motor Hydro Test Pump Hydrostatic Pressure Testing Equipment
Q1. What is your leading time?
A: we maily need 30 days to finish the product.
Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Our products are sold all over the world, you can rest assured.
