400bar Industrial High Pressure Washer Hydro Blasting Water Pump For Pipes Clean

400bar Industrial High Pressure Washer Hydro Blasting Water Pump For Pipes Clean

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

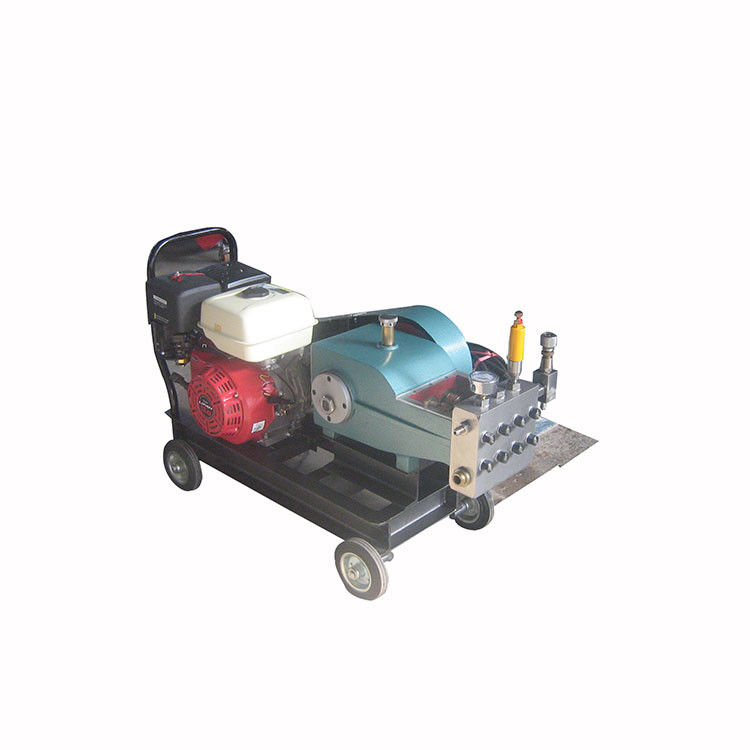

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

400bar Industrial High Pressure Washer Hydro Blasting Water Pump For Pipes Clean







As a 40 years manufacturing factory,we have many years all come from all over the world,the below are some of our customers:

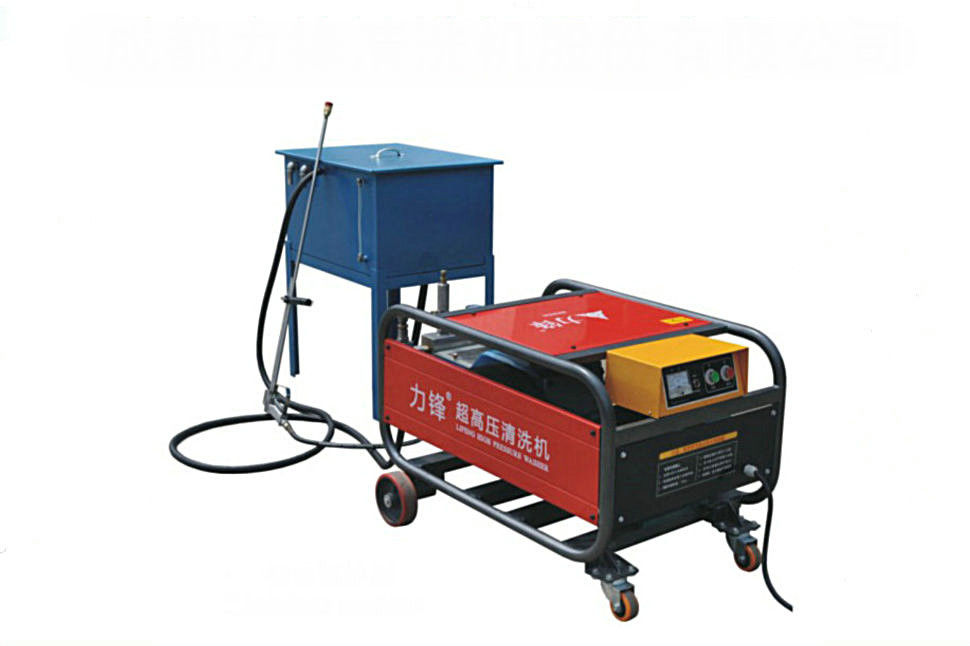

This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.

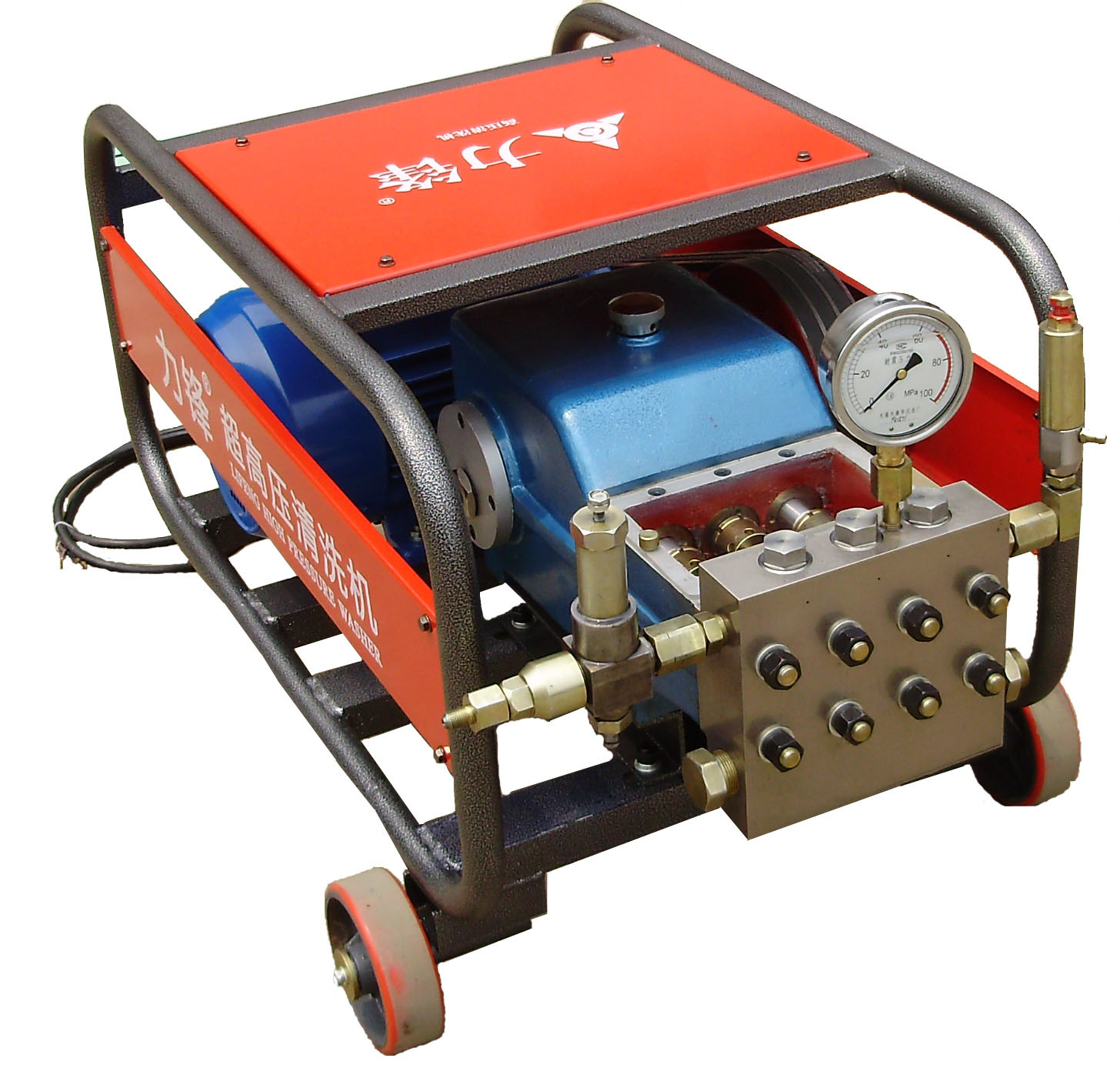

1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor, made up of by power end and fluid end.


• Power end: it is made up of by belt pulley, crankshaft and connecting rod etc. Electric motor drives the crankshaft through belt pulley and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

On the right side of pump, there is a safety valve, used for system overpressure protection. This valve is perfectly adjusted; user shouldn’t change it as he wishes.


2) Cleaning accessories; including pressure regulating valve, high pressure hose, and spray gun.
a. pressure regulating valve: used for regulating the output pressure and constant
system pressure.
Turning the adjusting screw nut clockwise, the output pressure of pump increases; turning the adjusting screw nut counterclockwise, the output pressure of pump reduces. When high pressure spray gun closes, system pressure reduces and the unit unloads automatically.

Applications:

1.using in cleaning the Aluminium plant Hardened bauxite dust on mills, filters, floors, tanks, sumps and sewers. With preesure 350bar – 2800bar

2.Using to wash Aviation Expansion joints, grease, rubber and hydraulic fluids on runways. With pressure 690bar - 1400bar

3. Using to wash the Breweries Yeast, sediments and fermentation residues on vats, pipe and facilities. With pressure 200bar – 2800bar

4. Using to Cement plant Remove dirt, grease and product build up on grates, floor, external piping, bins, walls, hopper cars and
handling equipment. With pressure 200bar – 690bar

5. using to wash Chemical processing Chemicals from boiler tubes, tanks, valves. evaporators, heat exchangers, tube bundles, vessels,
reactors and storage tanks. With pressure 350bar – 2800bar

6. using to Construction Concrete demolishing, exposing steel-bars, cutting concrete and steel bars. With pressure 350bar – 2800bar

7.using to Distilleries Cleaning of heat exchanger, boiler tubes, vats and pipe lines. With pressure 600bar- 2800bar

8.using in washing the Food processing Grease, fats, oil and dough from ovens, mixers, conveyors and facilities. With pressure 200bar – 1000bar

9.using to clean the Foundries Removal of deposits, metal oxidation, ceramic & sand core materials for casting. With pressure 1000bar – 2800bar

10.using in Highway Maintenance Cleaning of grease, vegetation, mud tar, cement or asphalt on vehicles & machinery. Removal of
expansion joints, paint strips and concrete demolishing on road bridges. With pressure 350bar – 2800bar

11.using to clean the Marine & Offshore Removal of marine growth, barnacles, paint and rust on ships, deck, hull and ballast tanks. Oil platforms, storage tanks, boilers, cold cutting, underwater blasting, pipe cleaning, paint and rust. With the pressure 500bar – 2800bar

it is widely used in ship cleaning,oil removing,fuel pipeline cleaning in refinery fields.

The below photos are showing the Machines working at foreign customer's factory:




Comments from customers which have been using our 11kw diesel engine drive high pressure washer 400bar water industrial high pressure washer:


FAQ

400bar Industrial High Pressure Washer Hydro Blasting Water Pump For Pipes Clean

Q1. What about the lead time?
A: 8-10 working days for mass production.

Q2. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
