11600psi Industrial High Pressure Washers Mobile For Electricity Plant Pipes Clean

11600psi Industrial High Pressure Washers Mobile For Electricity Plant Pipes Clean

Details:

1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
6.It is for industrial cleaning or removing.it is heavy duty.
7.It is easy to fix once the wearing parts are broken

8.The cylinders use the new technology,it avoided the cylinders broken problems.

9.we can make according to customers request of the engine.

10.we can make the trailer type with 4 wheels under the equipment.

11600psi Industrial High Pressure Washers Mobile For Electricity Plant Pipes Clean

Characteristics as below:


Catalogue of  11600psi Industrial High Pressure Washers Mobile For Electricity Plant Pipes Clean

Product Description

Industrial high pressure washer is an equipment which is used to clean the surface of objects,the machine with high pressure water jet by means of a power device. It can peel off the dirt ,wash it away to achieve the purpose of cleaning the surface of objects. Because it uses high-pressure water column to clean dirt, high-pressure cleaning is also recognized as the most scientific, economic and environmentally friendly cleaning method in the world compare to the chemical cleaning.

Features

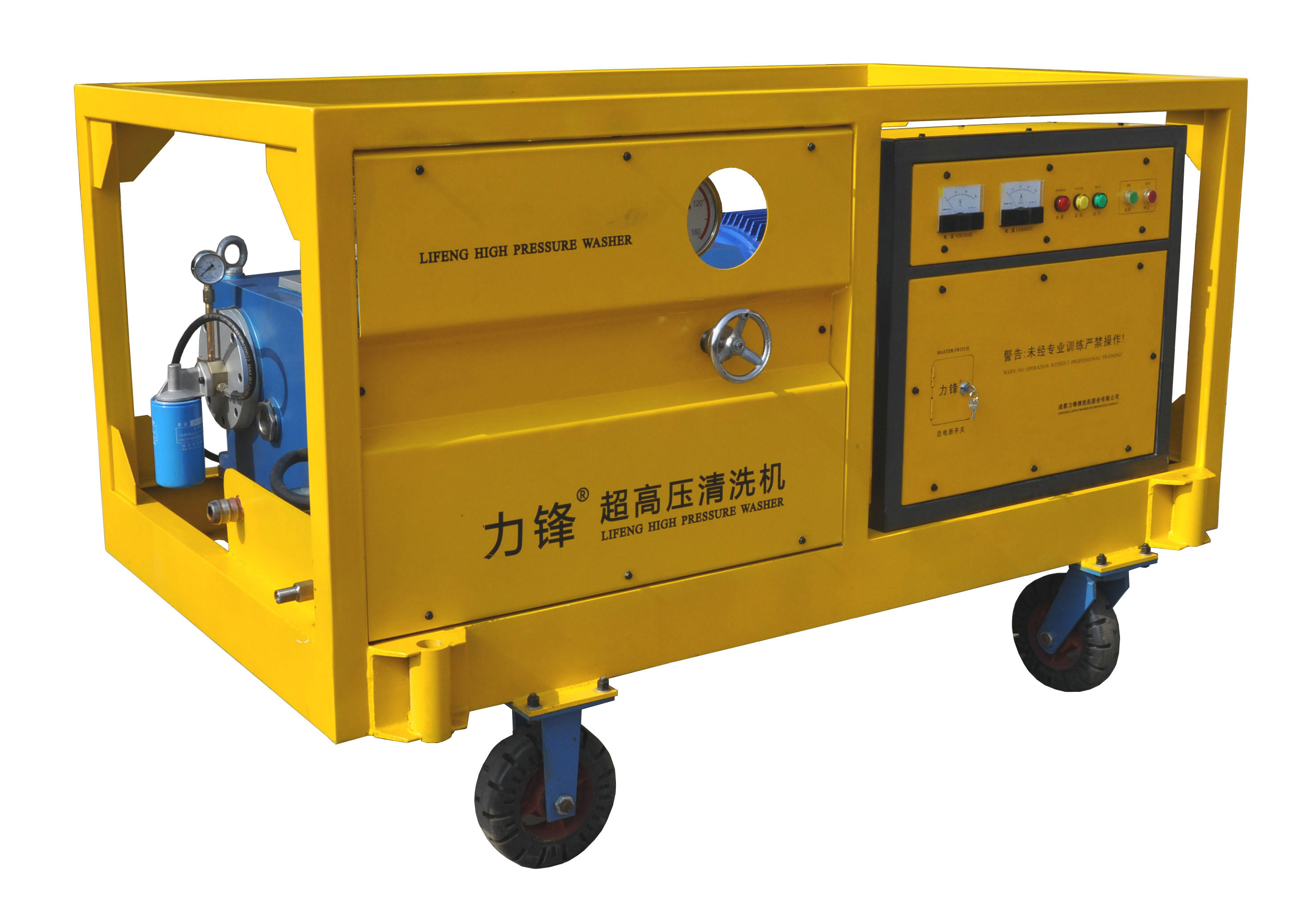

• This machine is made up of mainly by high pressure reciprocating pump, power units and cleaning accessories etc.



  1) High pressure reciprocating pump: the pump is horizontal triplex plunger pump, driven by electric motor or the diesel engine, made up of by power end and fluid end.



• Power end: it is made up of by belt pulley(couplings), crankshaft and connecting rod etc. Electric motor or diesel engine,or gasoline engine driven the crankshaft and reduces its speed, and crank link mechanism will change whirling movement to straight line reciprocating movement.
• Fluid end: it is made up of by plunger set, high pressure cylinder, pump body and water input and output valves etc. High pressure cylinder is fixed on crankcase while connecting rod drives plunger to do reciprocating movements, which make volume in cylinder do cyclical change. When plunger is in-sucking stroke, the volume in cylinder increases, water output valve closes, local vacuum is formed. Working media enter into high pressure cylinder by going against water input valve under high atmospheric pressure. When plunger is in discharging stroke, water input valve closes, and plunger transfer the working media to pump body by water output valve, to pressure regulating valve, finally to high pressure spray gun by high pressure hose.

• High pressure hoses are the main safe parts of the washer; it must use the supporting products. Before use, it must be checked, and if there are some wearing parts, it should be rechanged. Fixed the joint, in case of loosing.

  The high pressure pipes usually in a fixed place, which made from the stainless steel extra high pressure, and installed in a fixed pipe way. When installation, it should match with the limit valve and globe valve, and control box.

  Foot control valve is used in the pipelines, containers, rotary kiln of cement plant, sometimes used in as the twin gun switch valve operation. When use the special accessories such as spray boom, rotating nozzle, it should use the foot control valve to realize the control of water jet change.

Applications

1.using in cleaning the Aluminium plant Hardened bauxite dust on mills, filters, floors, tanks, sumps and sewers. With preesure 350bar – 2800bar

2.Using to wash Aviation Expansion joints, grease, rubber and hydraulic fluids on runways. With pressure 690bar - 1400bar

3. Using to wash the Breweries Yeast, sediments and fermentation residues on vats, pipe and facilities. With pressure 200bar – 2800bar

4. Using to Cement plant Remove dirt, grease and product build up on grates, floor, external piping, bins, walls, hopper cars and

handling equipment. With pressure 200bar – 690bar

5. using to wash Chemical processing Chemicals from boiler tubes, tanks, valves. evaporators, heat exchangers, tube bundles, vessels,

reactors and storage tanks. With pressure 350bar – 2800bar

6. using to Construction Concrete demolishing, exposing steel-bars, cutting concrete and steel bars. With pressure 350bar – 2800bar

7.using to Distilleries Cleaning of heat exchanger, boiler tubes, vats and pipe lines. With pressure 600bar- 2800bar

8.using in washing the Food processing Grease, fats, oil and dough from ovens, mixers, conveyors and facilities. With pressure 200bar – 1000bar

9.using to clean the Foundries Removal of deposits, metal oxidation, ceramic & sand core materials for casting. With pressure 1000bar – 2800bar

10.using in Highway Maintenance Cleaning of grease, vegetation, mud tar, cement or asphalt on vehicles & machinery. Removal of

expansion joints, paint strips and concrete demolishing on road bridges. With pressure 350bar – 2800bar

Thanks for using Lifeng serials high pressure industrial washers. We produced these series washers according to the special conditions of industrial cleaning. We self-design and produce the high quality products by using the advanced technology and processing methods. It is reasonable in structure, easy in operation and is durable in use. It widely used in removing sand, paint, dirty stuff, colloid of castings. It gets a good reputation in sugar-refinery, pharmaceutical factory, cement plant, construction, chemical engineering, petroleum, and shipping

Meanwhile, our pumps also can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing, and so on.

Diesel Industrial High Pressure Washers High Pressure Washing Machine For Pipelines Cleaning,This equipment needs to use a backflush nozzle to go inside to the pipes.the nozzles should be smaller than the heat exchangers pipes.

when start the high pressure cleaning machine,the backflush nozzles can go into the pipes itself by the water jet push power.

then the nozzles water jet can clean the inside of the pipes.

As a 40 years manufacturing factory,we have many years all come from all over the world,the below are some of our customers,they are from Australia and so on......


Applications:

it is widely used in ship cleaning,rust removing,concrete removing ,fuel pipeline cleaning in refinery fields,oil tank clean,all kinds of the heat exchangers pipes clean,cment plant kiln,for the papaer making factory which is cleaning the dirty paper pulp......





Comments from customers who is using the products 57L/min 800bar Industrial High Pressure Washers High Pressure Washing Machine:​







FAQ

11600psi Industrial High Pressure Washers Mobile For Electricity Plant Pipes Clean

Q1. What is your leading time?
A: Our leading time is 35 days..

Q2.are you a factory or a trading company?
A: we are a 40 years old manufacturing factory which located in Chengdu ,China.

Q3. How do you ship the goods ?
A: Ship by  sea shipping.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
