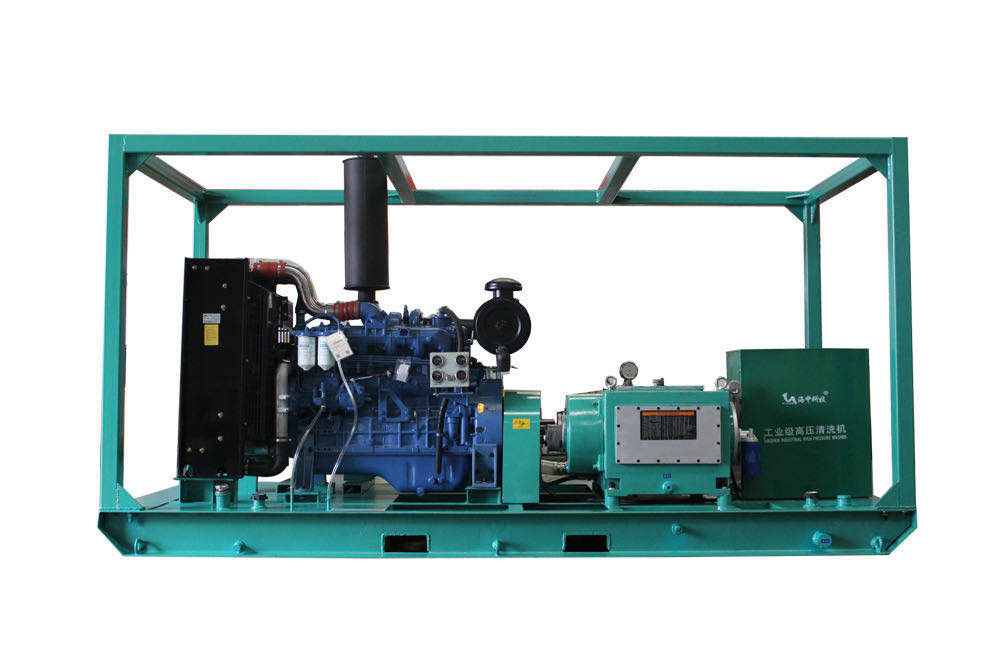

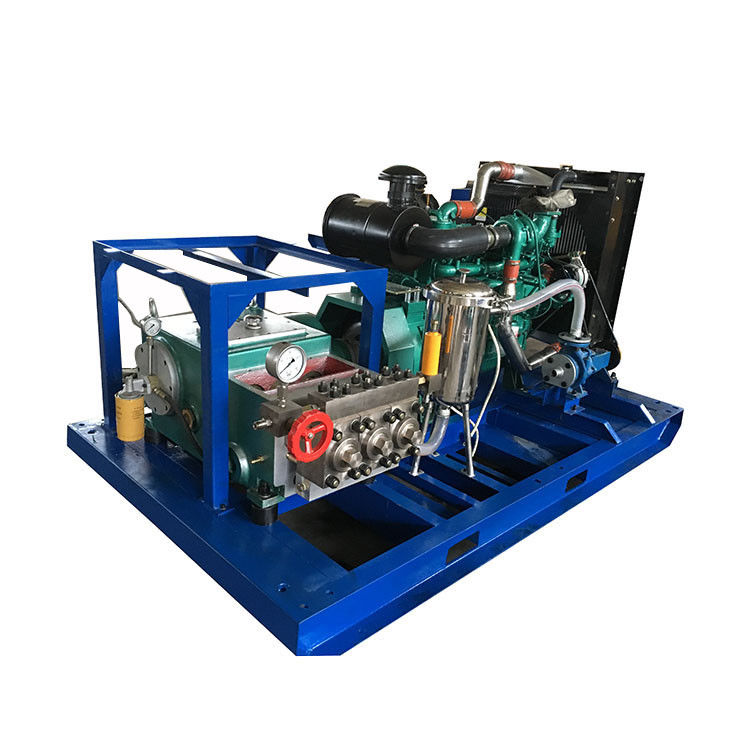

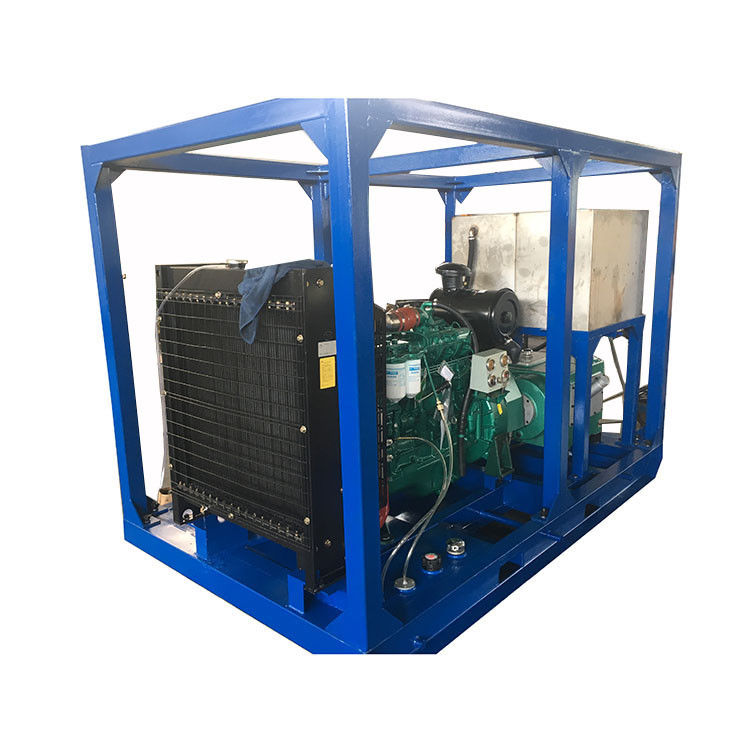

1200bar ATEX Zone 2 Explosion Proof Pressure Washer For Oil Field Pipelines Cleaning

1200bar ATEX Zone 2 Explosion Proof Pressure Washer For Oil Field Pipelines Cleaning

  • High Light

    explosion proof pressure washers 1200bar

    ,

    1200bar explosion proof pressure washers

    ,

    explosion proof pressure washer 1200bar

  • Product Name
    1200bar Zone 2 Explosion Proof Pressure Washer For Cleaning
  • Power
    Diesel
  • Pressure
    High Pressure
  • Usage
    Water,Sewage And Slurry
  • Fuel
    Diesel
  • Structure
    Gear Pump
  • Max.Working Pressure
    1200bar
  • Water Flow
    48L/min
  • Place of Origin
    China
  • Brand Name
    LIFENG
  • Certification
    ISO9001:2015
  • Model Number
    LF-48/120
  • Minimum Order Quantity
    1 unit
  • Price
    10000-100000 USD
  • Packaging Details
    Packed by non-fumigation wooden box
  • Delivery Time
    40 working days
  • Payment Terms
    T/T, Western Union, MoneyGram
  • Supply Ability
    50 units per month

1200bar ATEX Zone 2 Explosion Proof Pressure Washer For Oil Field Pipelines Cleaning

1200bar ATEX Zone 2 Explosion Proof Pressure Washer For Oil Field Pipelines Cleaning



Details:



1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.

2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.

3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.

4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.



1200bar ATEX Zone 2 Explosion Proof Pressure Washer For Oil Field Pipelines Cleaning



Characteristics as below:



MODEL PRESSURE WATER FLOW POWER Plunger Diameter STROKE
  Bar L/min KW mm mm

LF-400/14 140 400 110 70 70
LF-317/18 180 317 110 62 70
LF-250/23 230 250 110 55 70
LF-220/25 250 220 110 52 70
LF-190/30 300 190 110 48 70
LF-160/36 360 160 110 44 70
LF-132/42 420 132 110 40 70
LF-120/46 460 120 110 38 70
LF-107/52 520 107 110 36 70
LF-95/60 600 95 110 34 70
LF-74/75 750 74 110 30 70
LF-65/88 880 65 110 28 70
LF-56/100 1000 56 110 26 70
LF-48/120 1200 48 110 24 70
LF-40/150 1500 40 110 22 70

Applications of High pressure washer:



Like :1.using in cleaning the Aluminium plant Hardened bauxite dust on mills, filters, floors, tanks, sumps and sewers. With preesure 350bar – 2800bar



2.Using to wash Aviation Expansion joints, grease, rubber and hydraulic fluids on runways. With pressure 690bar - 1400bar



3. Using to wash the Breweries Yeast, sediments and fermentation residues on vats, pipe and facilities. With pressure 200bar – 2800bar



4. Using to Cement plant Remove dirt, grease and product build up on grates, floor, external piping, bins, walls, hopper cars and

handling equipment. With pressure 200bar – 690bar



5. using to wash Chemical processing Chemicals from boiler tubes, tanks, valves. evaporators, heat exchangers, tube bundles, vessels,

reactors and storage tanks. With pressure 350bar – 2800bar



6. using to Construction Concrete demolishing, exposing steel-bars, cutting concrete and steel bars. With pressure 350bar – 2800bar



7.using to Distilleries Cleaning of heat exchanger, boiler tubes, vats and pipe lines. With pressure 600bar- 2800bar



8.using in washing the Food processing Grease, fats, oil and dough from ovens, mixers, conveyors and facilities. With pressure 200bar – 1000bar



9.using to clean the Foundries Removal of deposits, metal oxidation, ceramic & sand core materials for casting. With pressure 1000bar – 2800bar



10.using in Highway Maintenance Cleaning of grease, vegetation, mud tar, cement or asphalt on vehicles & machinery. Removal of

expansion joints, paint strips and concrete demolishing on road bridges. With pressure 350bar – 2800bar

1200bar ATEX Zone 2 Explosion Proof Pressure Washer For Oil Field Pipelines Cleaning 070Mpa 10000psi Explosion Proof Water Pump for High Pressure CleaningProduct Description
1200bar ATEX Zone 2 Explosion Proof Pressure Washer For Oil Field Pipelines Cleaning 1
1200bar ATEX Zone 2 Explosion Proof Pressure Washer For Oil Field Pipelines Cleaning 2
Product Details
1200bar ATEX Zone 2 Explosion Proof Pressure Washer For Oil Field Pipelines Cleaning 3
1200bar ATEX Zone 2 Explosion Proof Pressure Washer For Oil Field Pipelines Cleaning 4
Specification
Product name
Explosion proof water pump
Pump model
LF-48/120
Pump application
Pipe/boating cleaning, offshore platform
Max. working pressure
120Mpa
Rate discharge water flow
48L/min
Engine model
6BTAA5.9-P160
Hazardous zone
ZONE 2
Certficate
Declaration of conformity
Size
3048*1500*2000mm
Weight
3430kg
