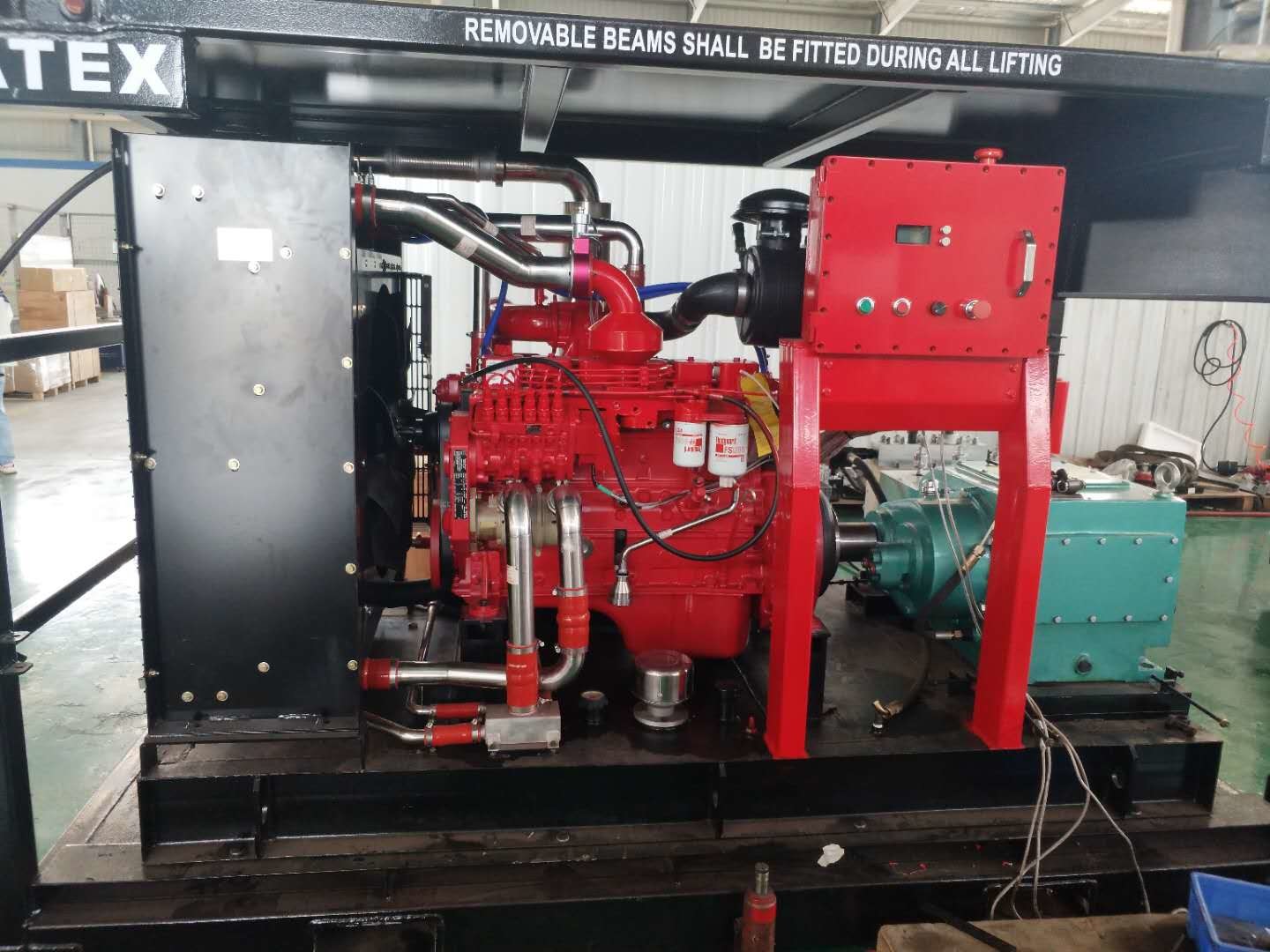

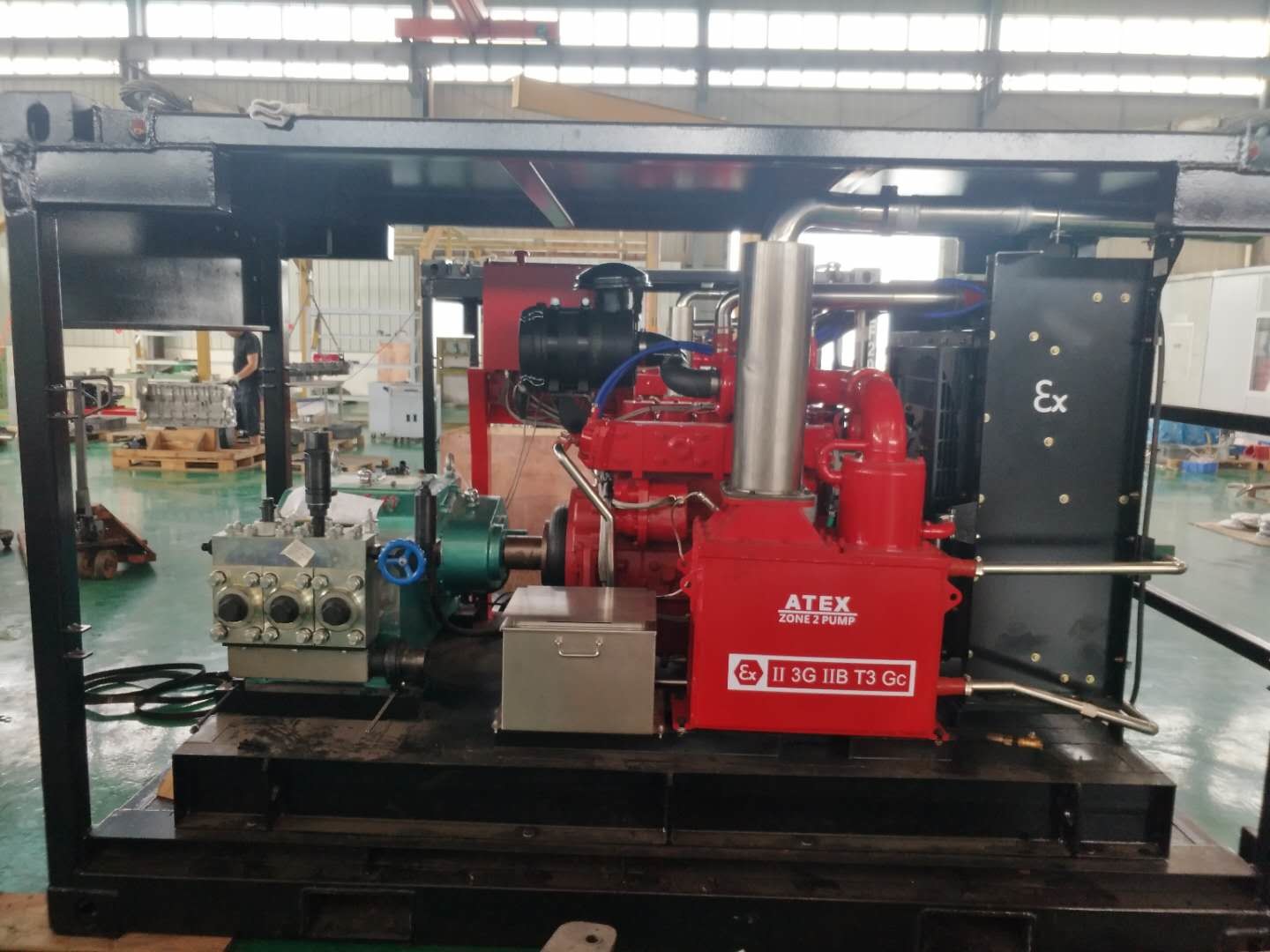

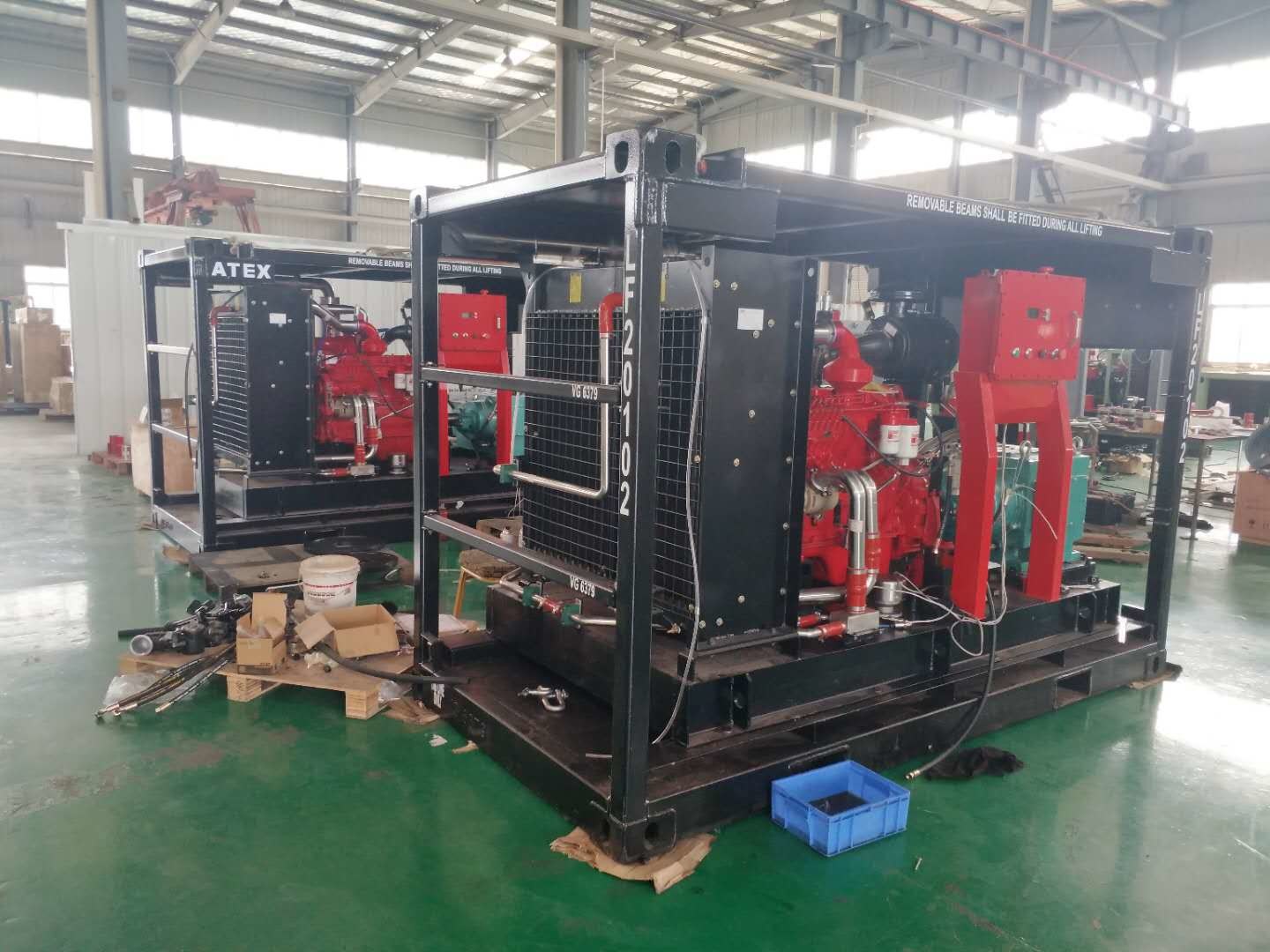

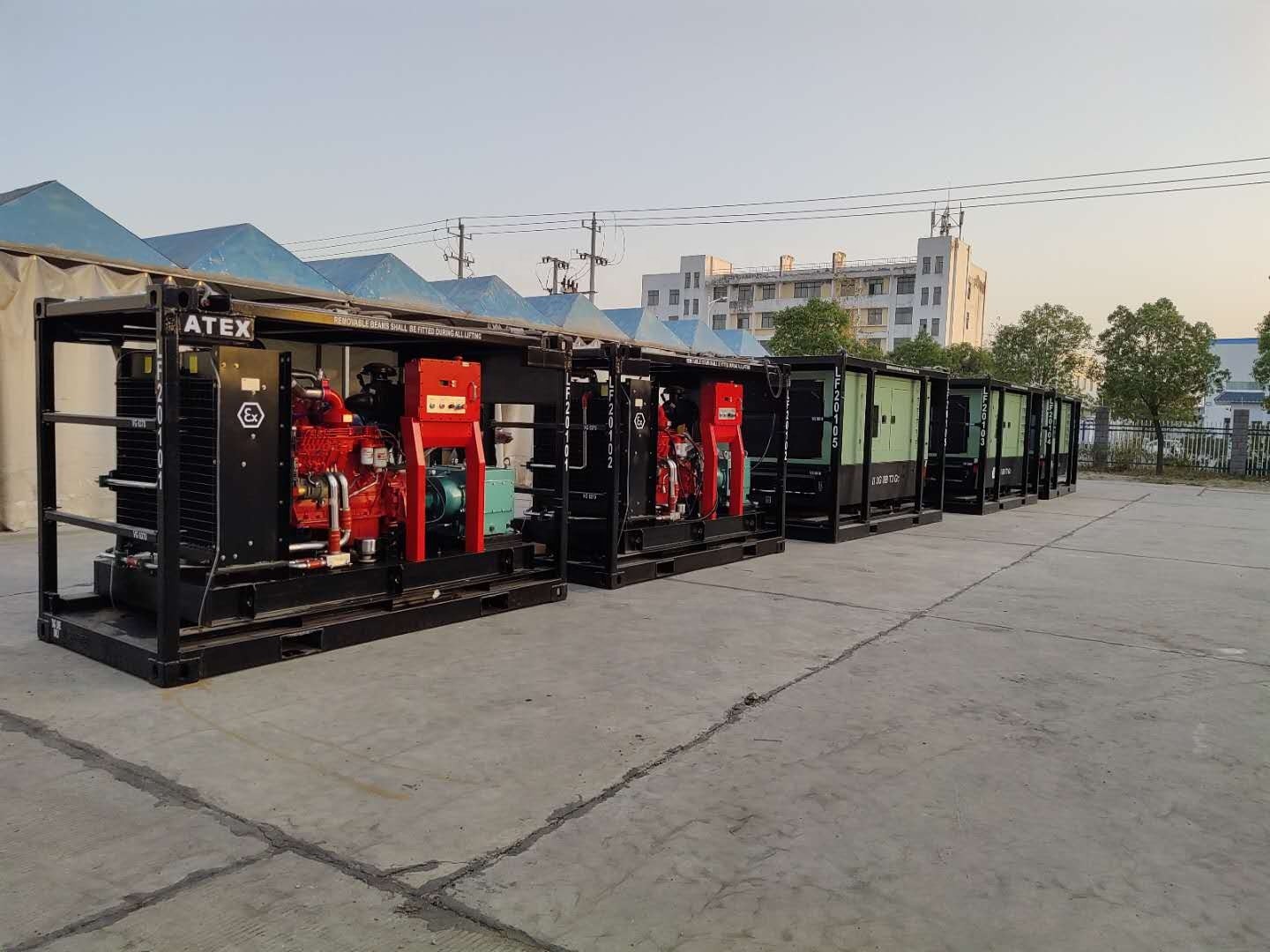

Zone 2 High Pressure Water Blaster With DNV Lifting Frame Explosion Proof High Pressure Pump Unit 20000psi
Details:
1.Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.
2.Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.
3.Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.
4.All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.
5.For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.
Zone 2 High Pressure Water Blaster With DNV Lifting Frame Explosion Proof High Pressure Pump Unit 20000psi
Characteristics as below:
| MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE |
| Bar | L/min | KW | mm | mm | |
| LF-400/14 | 140 | 400 | 110 | 70 | 70 |
| LF-317/18 | 180 | 317 | 110 | 62 | 70 |
| LF-250/23 | 230 | 250 | 110 | 55 | 70 |
| LF-220/25 | 250 | 220 | 110 | 52 | 70 |
| LF-190/30 | 300 | 190 | 110 | 48 | 70 |
| LF-160/36 | 360 | 160 | 110 | 44 | 70 |
| LF-132/42 | 420 | 132 | 110 | 40 | 70 |
| LF-120/46 | 460 | 120 | 110 | 38 | 70 |
| LF-107/52 | 520 | 107 | 110 | 36 | 70 |
| LF-95/60 | 600 | 95 | 110 | 34 | 70 |
| LF-74/75 | 750 | 74 | 110 | 30 | 70 |
| LF-65/88 | 880 | 65 | 110 | 28 | 70 |
| LF-56/100 | 1000 | 56 | 110 | 26 | 70 |
| LF-48/120 | 1200 | 48 | 110 | 24 | 70 |
| LF-40/150 | 1500 | 40 | 110 | 22 | 70 |
70Mpa 10000psi Explosion Proof Water Pump for High Pressure CleaningProduct Description
Our products are sold all over the world, you can rest assured.
