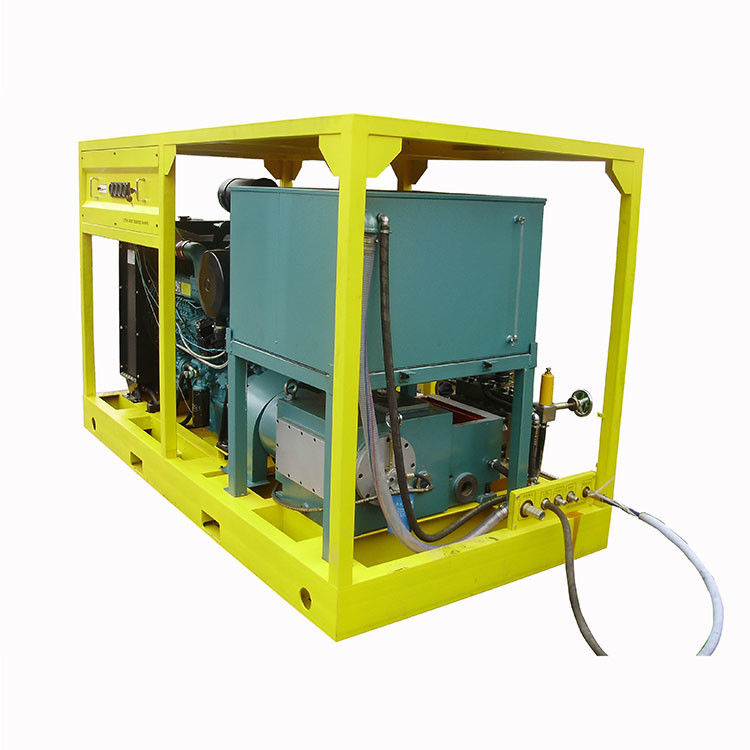

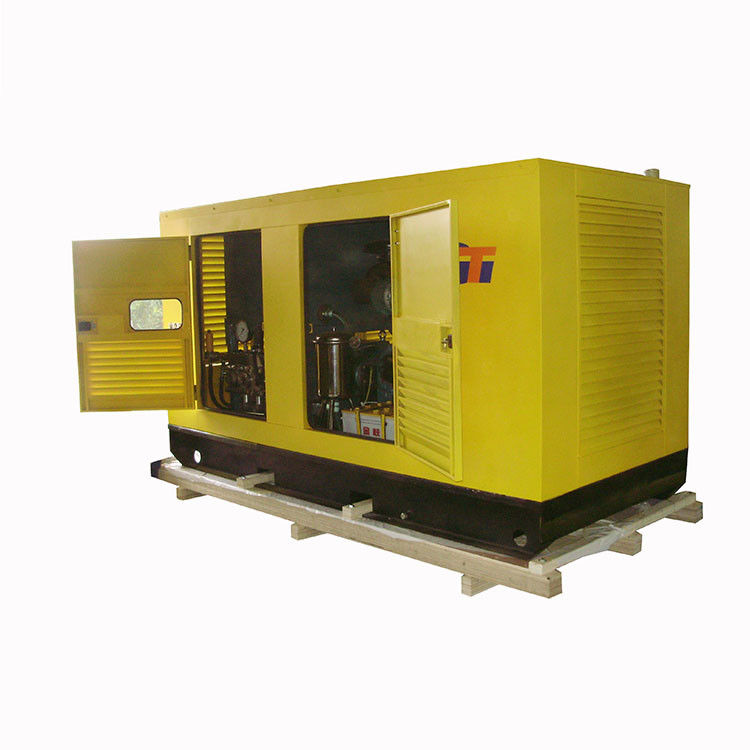

600bar Diesel Hydro Jet Water Pump For Rust Removing High Pressure Jet Washing Machine
High pressure jet washing machines are an idea for the heavy duty users.Featuring a compact design and easy to use controls,these superior machines are housed within durable fiberglass or a stainless steel cover,and fitted to a stove enamelled hard wearing chassis and frame with solid tires.contained within are self-priming pumps with heavy duty fibre seals,brass cylinder heads and components.while hard wearing nylon valves and stainless steel valve seats provide various options of pressure ,flow, and performance.
Not only do these heavy duty pressure washers excel in performance ,but most of all they excel in reliability.with Sincere Da customers are getting quality products,unrivalled training,help and advice when you need it,and a truly dedicated team of service engineers that are highly trained in all of the products we sell.
This machines use water at very high pressure for washing a variety of vehicles and machinery,and for cleaning any type of washable surface or floor.they can be used in a wide and varying number of sectors .e.g.agriculture,industrial,marine and shipping,car washing,transport industry.
600bar Diesel Hydro Jet Water Pump For Rust Removing High Pressure Jet Washing Machine
Characteristics as below:
Tech Date | ||
Model | LF-50/60 | |
Max. working pressure | 600bar | |
Rated water flow | 50L/min | |
Pump RPM | 500 | |
Input power | 55kw | |
Diesel engine or electric motor power | 55kw | |
Engine RPM | 1500 | |
Net Weight | 1500KGS | |
Dimension | 1900*1000*1200mm | |
package | Wooden box |
Catalogue of 600bar Diesel Hydro Jet Water Pump For Rust Remove High Pressure Jet Washing Machine
MODEL | PRESSURE | WATER FLOW | POWER | Plunger Diameter | STROKE |
Bar | L/min | KW | mm | mm | |
LF-256/18 | 180 | 256 | 90 | 55 | 70 |
LF-195/24 | 240 | 195 | 90 | 48 | 70 |
LF-164/28 | 280 | 164 | 90 | 44 | 70 |
LF-135/35 | 350 | 135 | 90 | 40 | 70 |
LF-122/38 | 380 | 122 | 90 | 38 | 70 |
LF-110/43 | 430 | 110 | 90 | 36 | 70 |
LF-98/48 | 480 | 98 | 90 | 34 | 70 |
LF-87/55 | 550 | 87 | 90 | 32 | 70 |
LF-50/60 | 600 | 50 | 90 | 30 | 70 |
LF-66/70 | 700 | 66 | 90 | 28 | 70 |
LF-57/80 | 800 | 57 | 90 | 26 | 70 |
LF-40/115 | 1150 | 40 | 90 | 22 | 70 |
LF-34/150 | 1500 | 34 | 90 | 20 | 70 |
This pump is the horizontal single-acting triplex plunger pump, components are dynamic end, hydraulic end, pressure regulating valve,and relief valve!
(1).The dynamic end (attached picture by the following)componented by the pulley, crankshaft, connecting bar , etc. dynamic power produced by the belt and driving pulley and also decrease the speed.driving the crankshaft rotary,and the connecting bar makes the rotary be direct!
(2)The hydraulic end (attached picture by the following)componented by the plungers,cylinders,pump body,water inlet and outlet valves,etc.the cylinders are fixed on the crank,the connecting bar drive the plunger do reciprocating movement in the cylinder which makes the content of cylinders periodic change.when the plungers are the sucking stroke,the the content of cylinders enlarge,and the water outlet valves close,forming a vacuum,the medium comes into the cylinders upon the pressure of the air;when the plungers are the eduction stroke,the water inlet valves close,the plungers make the medium go into the pump body through the water outlet valves,and then go into the pressure regulate valve,and last comes out from the high pressure hose!
(3)The relief(safety valve) valve (attached picture by the following) Relief valve is high-pressure pump of protection device, when the nozzle blocking, relief valve open, high pressure water flow, protecting the machine was not damaged by the over pressure. the customers do not touch that!
(4)The pressure regulating valve (attached picture by the following)the pressure regulating valve is used to adjust the outlet pressure and keep the system pressure.when the handwheel clockwise rotation pressure-regulating valve core, with the gap seat decreasing, overflowing decreases, machine pressure increases. When the handwheel counterclockwise, flow capacity increase and the pressure drops!
Application for 600bar Diesel Hydro Jet Water Pump For Rust Remove High Pressure Jet Washing Machine
1.High-pressure or super high pressure cleaner are widely applied for washing and descaling in the industry of petroleum, chemicals, fertilizer, power, sugar-making, paper-making, food and starch.
2.Process washer and copper-fluid pump in the industry of petroleum, chemicals and fertilizer, water filling pump in the oil field and salt mine, liquefied CO2 pump, 5-Na sludge pump and pressure-test pump for pipe valve
3.Elimination of phosphate and rust in the metallurgy industry Cleaner
4.Hydraulic power and spray dedusting in the mine
5.Greencutting of hydraulic power generating project and concrete, spray and temperature reduction
6.Descaling, washing and firefighting in the industry of ship repair
7.Washing of exterior wall of building, urban drain and etc.
As a 40 years manufacturing factory,we have many years all come from all over the world,the below are some of our customers,they are from Australia and so on......
Applications:
it is widely used in ship cleaning,rust removing,concrete removing ,fuel pipeline cleaning in refinery fields,oil tank clean,all kinds of the heat exchangers pipes clean,cment plant kiln,for the papaer making factory which is cleaning the dirty paper pulp......
Comments from customers who is using the products 600bar Diesel Hydro Jet Water Pump For Rust Removing High Pressure Jet Washing Machine
FAQ
600bar Diesel Hydro Jet Water Pump For Rust Removing High Pressure Jet Washing Machine
Q1. What is your product brand name?
A: We have our own name which is famous in China and famous in Asia.
Q2.are you a factory or a trading company?
A: we are a 40 years old manufacturing factory which located in Chengdu ,China.
Q3. How do you ship the goods ?
A: Ship by sea shipping.
Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly:we sign a contract
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
